TRUEFORM Trainer User Manual

18
Attach the wire coming out of the top
handrail by inserting the connector into the
SPD_ENC port on the front of the display.
MOUNTING DISPLAY
17
Holding the display in place, reattach the wire
from the back of the display to the front of the
display. The connector removed in step 14 is
reinserted into the BAT port.
MOUNTING DISPLAY
16
MOUNTING DISPLAY
15
Remove the 4 screws from the back of the
display stand on the top handrail.
Reinsert the screws removed in step 15 and
attach the back of the display to the display
stand.
MOUNTING DISPLAY
14
Separate the two sides of the display and
disconect the wire labeled BAT.
MOUNTING DISPLAY
13
Unscrew the four outside screws from the
back of the display using a Philips head
screwdriver. Keep the screws in a safe place;
you’ll need them later.
MOUNTING DISPLAY

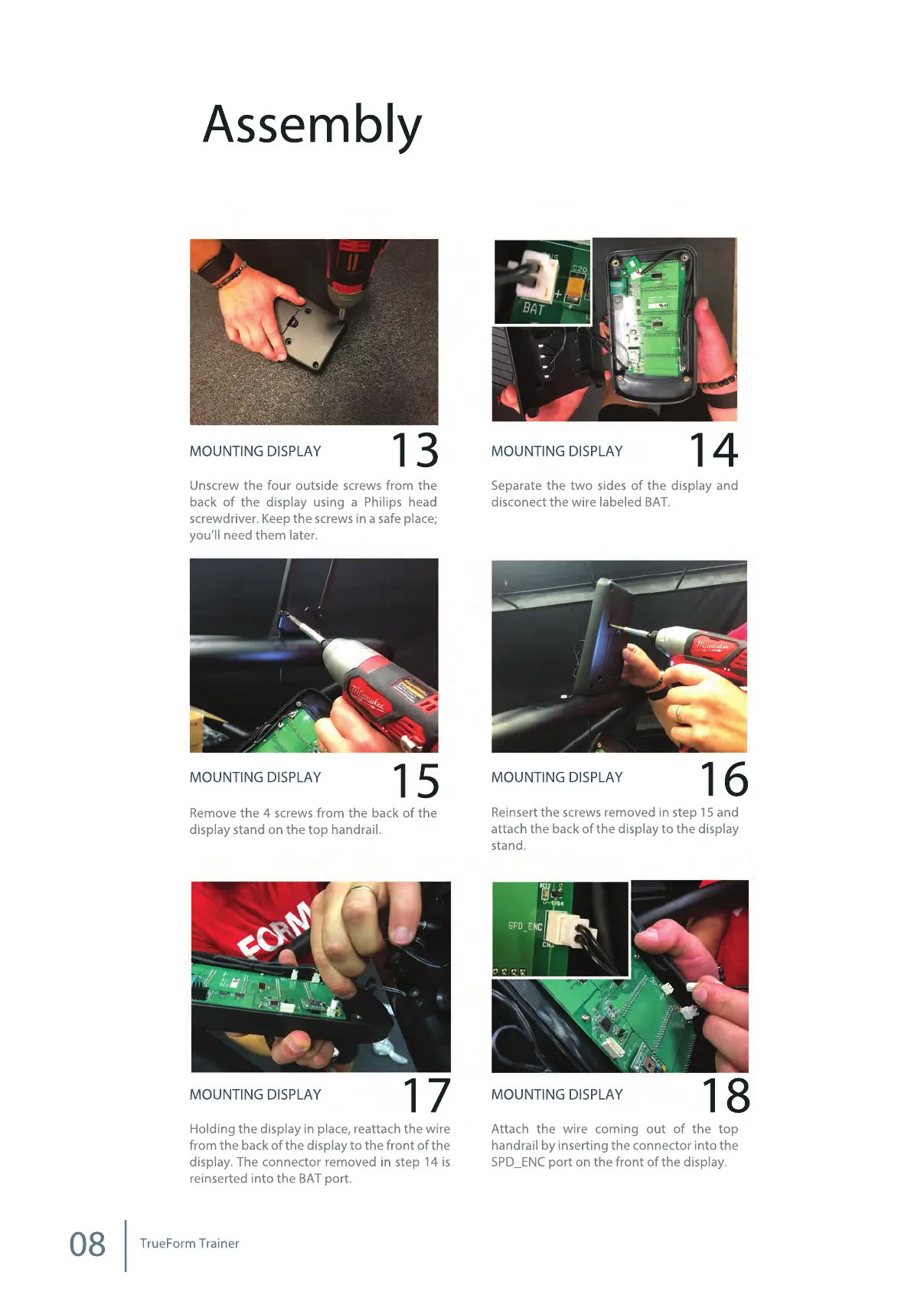

Assembly
08
TrueForm Trainer

TRUEFORM Trainer Specifications

General

Brand	TRUEFORM
Model	Trainer
Category	Fitness Equipment
Language	English
