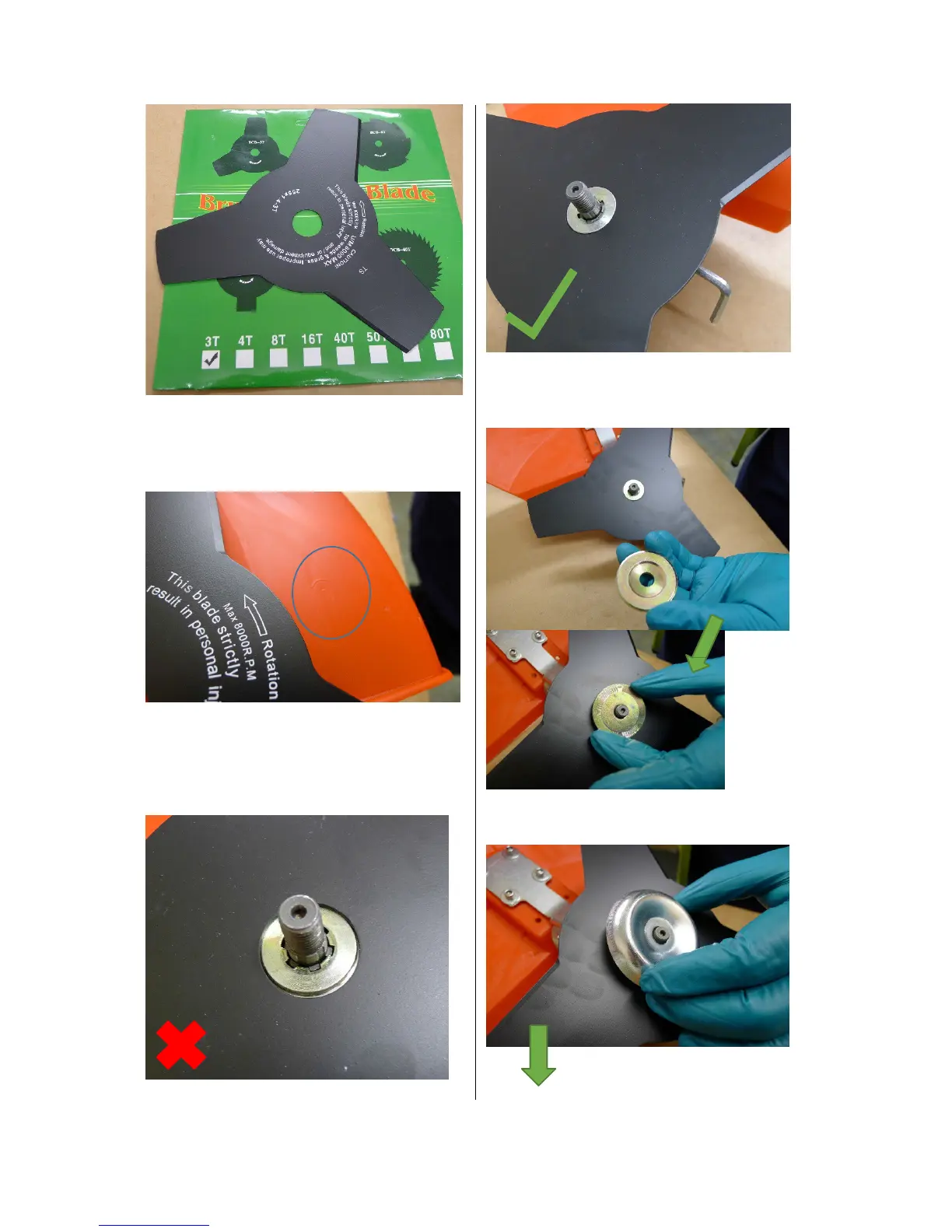

• The blade must be mounted with the
directional arrow on the blade and the
directional arrow on the guard pointing in
the same direction.
• Next we mount the blade onto the large
washer on the head assembly as shown.
! The blade must sit correctly onto the head
assembly, an improperly mounted blade can
cause damage / injury.
• Now re-fix the small spacer washer onto the
central spindle, ensuring the recessed side
of the washer faces the blade.
• Re-attach the bell shaped washer and
locknut while holding onto the Allen key.
