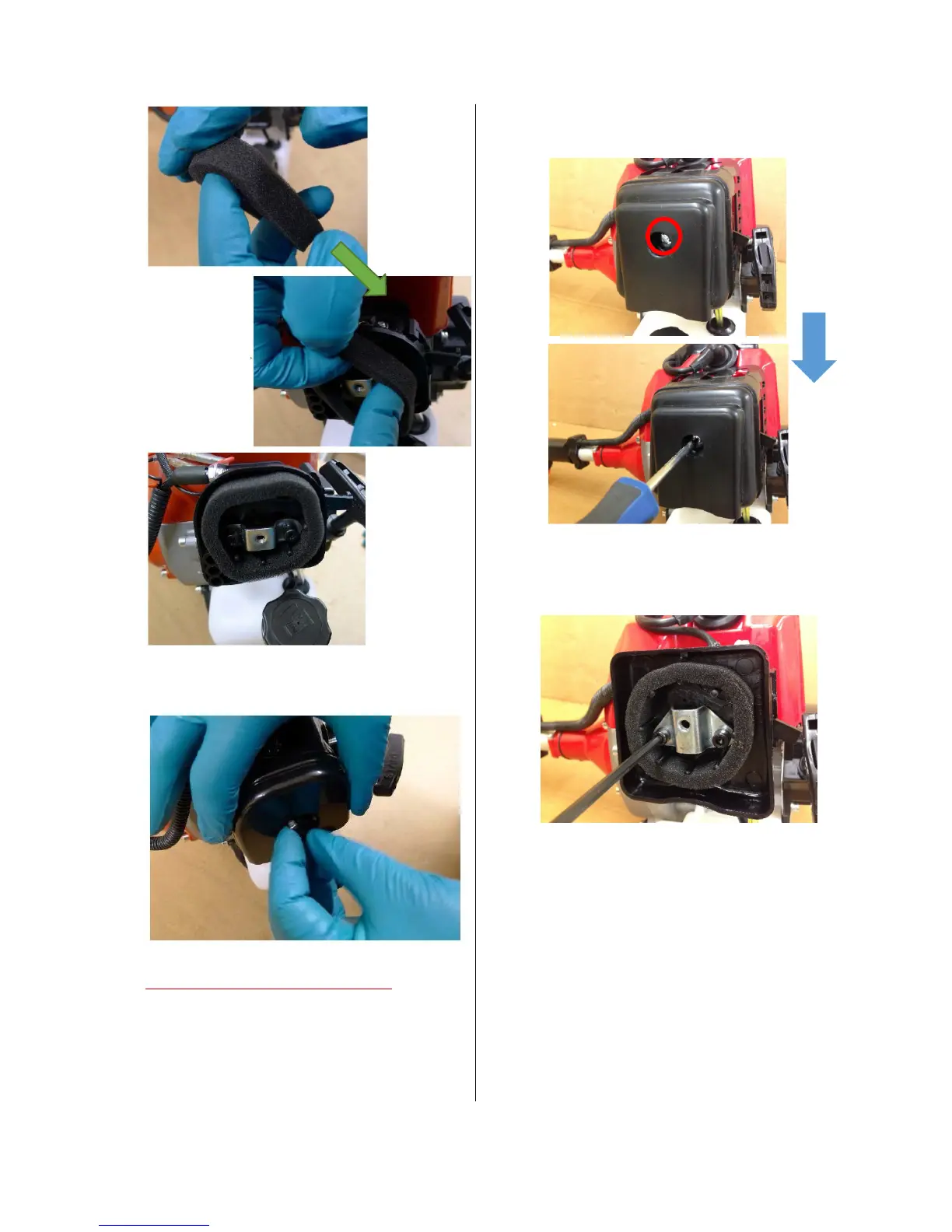

fastener (model dependant) as circled
below.
• Once the cover is removed, use the
provided Allen key to remove the metal
retaining bracket.
• Once the retaining bracket is removed, pull
it away from the machine and also pull the
remainder of the black air filter housing off.
You will now have access to the carburettor
(circled)
• Finally, replace the air filter
cover and fasten it back into
Carburettor exchange / inspection
The
following procedure will show you
remove your carburettor and
or inspect it for problems
The carburettor is accessed by removing
the screw or unfastening the plastic
