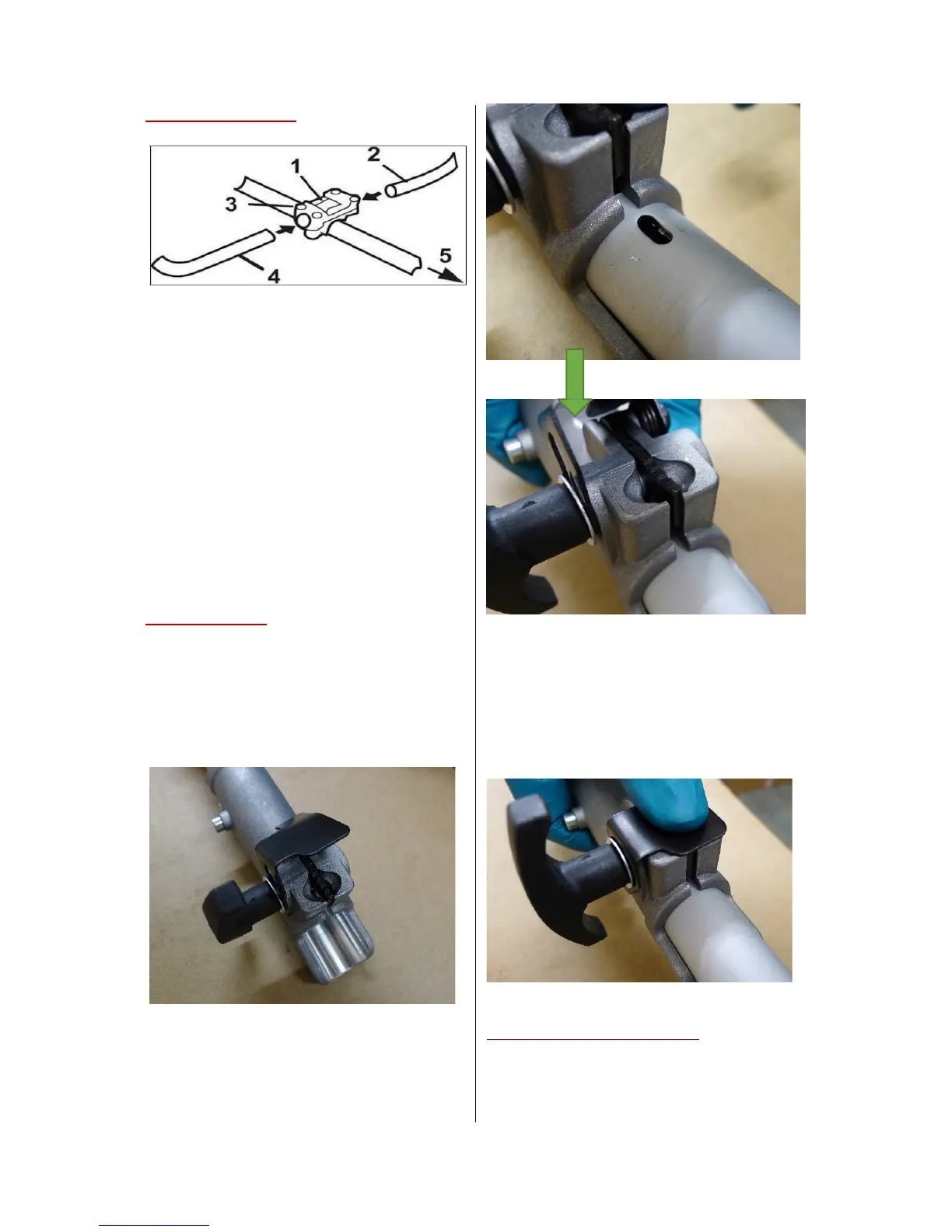

Assembling the handle
• Loosen the four bolts on the handle
bracket (1)
• Insert the right handle (2) with the
throttle lever attached and the left
handle (4) into the bracket (1)
•
Partially tighten the bolts (3)
• Adj
ust both handles to a suitable
working position.
• Fully tighten the bolts (3)
• The holder itself can be adjusted to
allow for user height by loosening the
fixings on the underside and then
adjusting the holder.
Pole Attachment
To connect the attachments to the machine, you
need to fit them to the coupling on the end of
the fixed engine pole.
1. Open the
coupling and turn the retaining
handle to loosen the connection.
2. Line up the hole on the required tool
pole as shown below and push firmly
into the coupling.
3. Close the c
oupling again, tighten the
retaining handle, and pull and twist the
pole to ensure that it is secure.
Attaching the guard / line cutter
! Be careful when handling the line cutter, it is
sharp.
! The guard must be attached when using either
the strimmer or brush cutter
