TC 2020R Installation

TR22.1 2020 Installation with SMC_July_03

8. Determine the center point of the

machine. Go 3 feet each direction

from the center point. Swing a 5

feet arc from each of the 3f mark.

Center

4 f

5 f

3 f

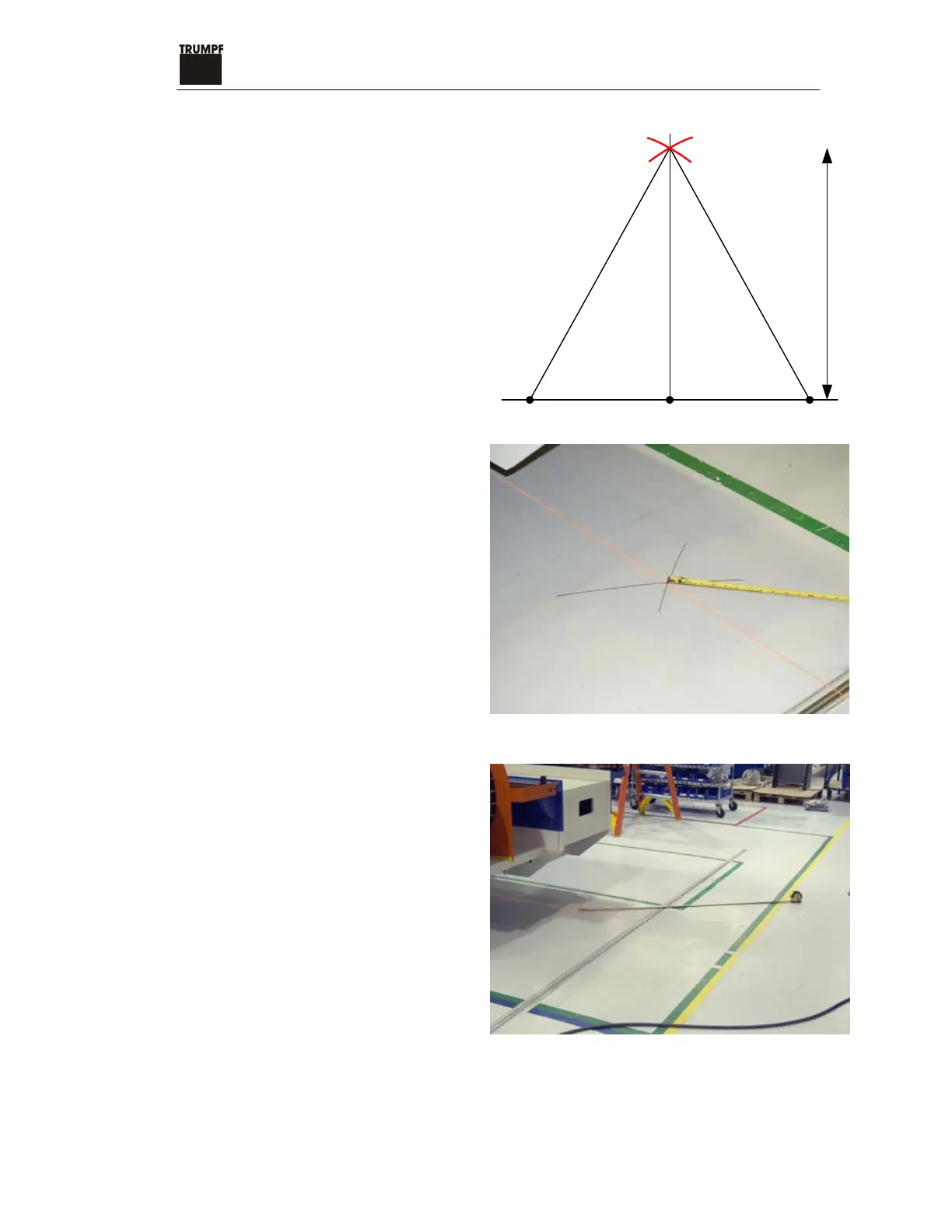

Figure 1. Mark the center of the machine

Figure 2. Measure the distance from 3f mark to the center point
