10
FREEZE PROTECTION
Follow all the steps for normal shut-down
and storage. Flush the cleaning system with
a 50% antifreeze and 50% water solution
using one of two methods:

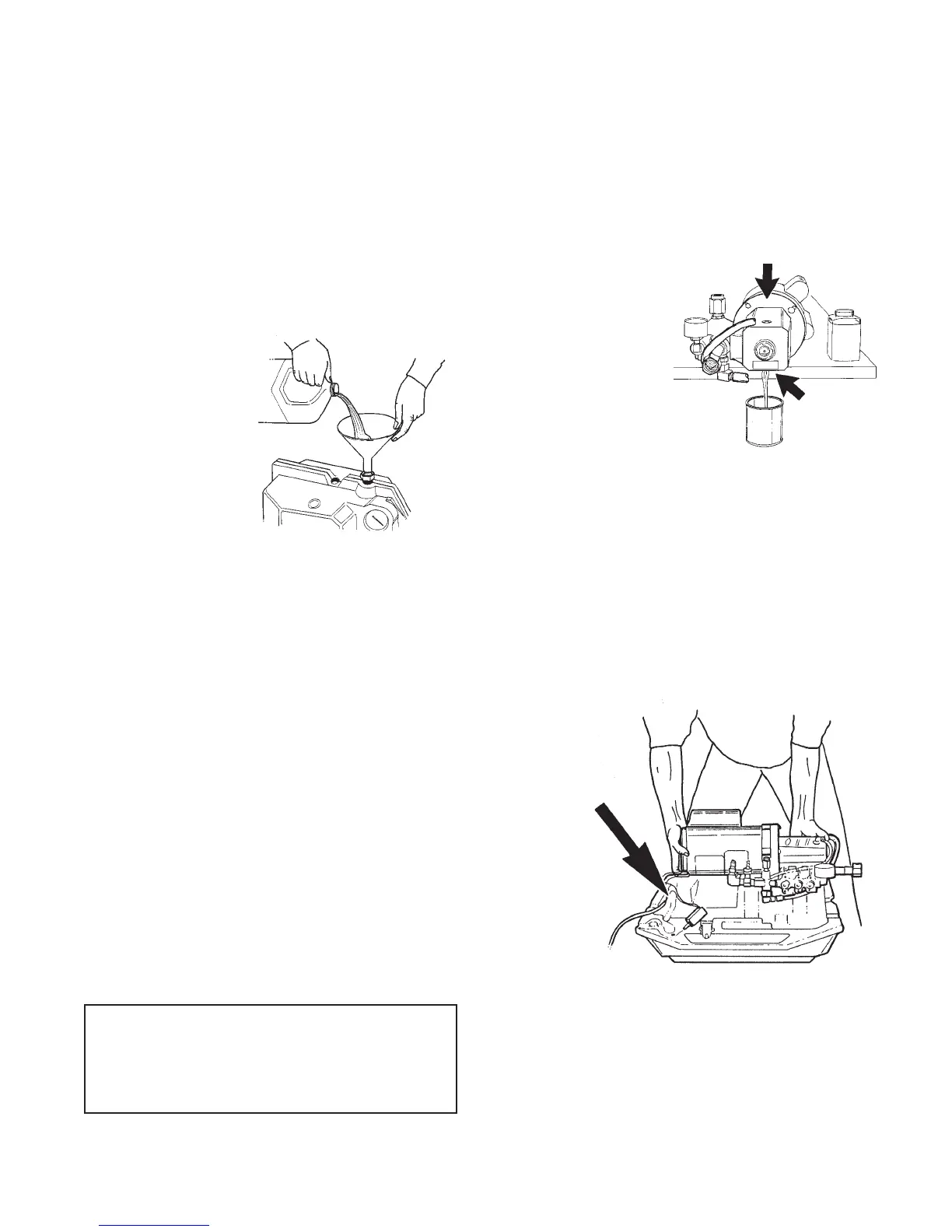

Method One
Tip the unit on end exposing inlet garden
hose fitting. Remove screen filter from fitting
and pour in approximately 1/2 cup of
antifreeze and water mixture. Turn on unit
while pouring the
mixture in to allow
circulation of
antifreeze. Turn
unit off as soon
as all solution has
been poured into
the system.
Method Two
Attach a short garden hose (not to exceed
four feet) to inlet fitting on pump and put
other end into the antifreeze and water mix-
ture. Turn the unit on until mixture flows out
of the discharge fitting. Then shut unit off.
LUBRICATION
Keep crankcase filled to proper level (11 oz.
capacity) with Cat Pumps special formula
Premium ISO 68 Grade Non-Detergent
Hydraulic oil. Cat Pumps oil contains anti-
wear and anti-rust inhibiting additives for
maximum protection and cool running. Do
not use motor oil. Annual oil changes are
recommended in heavy use applications.
With normal use change oil when service to
pump seals or valves becomes necessary.
(See Cleaning System Parts List.)
DRAINING AND ADDING OIL
1. Remove chemical injector knob and suc-
tion tube by pulling upward.
2. Unscrew unloader knob counterclockwise
and remove spring.
3. Remove the eleven case screws, lift off
top half of case and remove pump motor
assembly.
4. Place pump and motor on work table with
pump extended
over edge.
Secure pump to
work surface.
5. Remove oil drain
plug and drain oil
from crankcase.
Replace drain
plug when empty.
6. Ensure motor shims and air seal gasket
are in place.
7. Position the pump and motor into
lower case.
8. Fill pump with new oil to dot on oil gauge.
Oil can be added to the pump through the
oil filler cap on the top of the pump.
9. Place switch box and wires into proper
slots. Use tape to retain wires if they will
not lie flat in grooves.
10.Ensure that the foam seals on the
unloader, injector and discharge ports
are in place.
11. Replace upper case half.
12.Replace all cover screws, using the two
shortest in the handle area.
13.Push on injector knob and suction tube.
14.Place spring in unloader with metal insert
down. Screw on unloader knob.
CAUTION
The top half of the case must be removed
to add oil and the pump must be completely
removed from case to drain oil.
FILL
EMPTY
NOTE
WIRE REPLACEMENT
