Item P/N MATL Description Model Used Qty.
135 44871 S Spacer All Models 3
136 44872 S Spring, Inlet Valve All Models 3
137 88575 S Washer, Conical (M6) All Models 3
138 81240 SS Nut, Hex (M6) All Models 3
152 26089 NBR O-Ring, Adapter, Inner All Models 3
157 45859 BB Discharge Adapter-Seat Standard 3
45923 BB Discharge Adapter-Seat Pulsator Models 2
45923T BB Discharge Adapter-Seat Pulsator Models 1
159 26089 NBR O-Ring, Adapter, Outer All Models 3
166 43723 S Valve All Models 3
167 541062 S Spring All Models 3
168 44565 PVDF Retainer, Spring All Models 3
185 45724 BB Manifold, Discharge All Models 1
188 87859 STZP Screw, HSH (M8x75) All Models 6
255 30517 STZP Mount, Bolt Assy All Models 1
30980 STZP Washer, Flat (3/8") 4
30921 STZP Lockwasher, Split (3/8") 4
34100 STZP Screw, HH (3/8"-16x1-3/8") 4
6106 Lubricant, Antiseize 1
30050 STL Key (3/16x3/16x1-1/4") 1
306 34053 NBR Kit, Seal (Inclds: 106,125,152,159) All Models 1
310 34056 S Kit, Valve All Models 1
(Inclds: 152,157,159,166,167,168)
311 34668 Kit, Inlet Valve All Models 1
(Inclds: 134,135,136,137,152,159)
400 7500S BB Unloader All Models 1
Item P/N MATL Description Model Used Qty.
5 89551 STZP Screw, HHC (M6x16) All Models 3
6 150810 NBR Washer, Seal (M6) All Models 3
8 44857 AL Cover, Bearing, Inner All Models 1
10 14044 NBR O-Ring, Bearing Cover All Models 1
11 44859 NBR Seal, Oil All Models 1
15 14488 STL Bearing, Ball, Inner All Models 1
20 44863 ZZ Rod, Connecting All Models 3
25 45092 FCM Crankshaft - 3450 RPM 2LIDX20E 1
44931 FCM Crankshaft - 3450 RPM, 2LIDX30E 1
Tapped End (M8x1.25mm)
26 12385 STL Retainer, Ring All Models 1
27 15710 STL Bearing, Ball, Outer All Models 1
37 43987 Gauge, Bubble Oil All Models 1
38 44428 NBR Gasket, Flat Flex., Oil Gauge All Models 1
48 44842 NY Plug, Drain (1/2" NPT) All Models 2
49 14179 NBR O-Ring, Drain Plug All Models 2
●
53 45702 AL Crankcase All Models 1
●
64 16948 S Pin, Rist All Models 3
65
••
540073 SZZ Rod, Piston All Models 3
69 20017 STZP Washer, Oil Seal All Models 3
70 25461 NBR Seal, Oil All Models 3
90 45847 CC Plunger All Models 3
100 44869 PVDF Retainer, Seal All Models 3
106 44876 NBR Seal, LPS w/S-Spg All Models 3
110 44874 BB Manifold, Inlet All Models 1
125 43245 NBR Seal, HPS w/S All Models 3
134 45854 S Valve, Inlet All Models 3
SF PUMP PARTS LIST
●
Industrial discount.
Italics are optional items.
Material Codes (Not Part of Part Number): AL=Aluminum BB=Brass CC=Ceramic FCM=Forged Chrome-moly
NBR=Medium Nitrile (Buna-N) NY=Nylon PVDF=Fluoroplastic (High Strength) S=304SS STL=Steel STZP=Steel/Zinc Plated ZZ=Zamack
••
Effective with 6/92 mfg. date Cotterpin was eliminated.
18

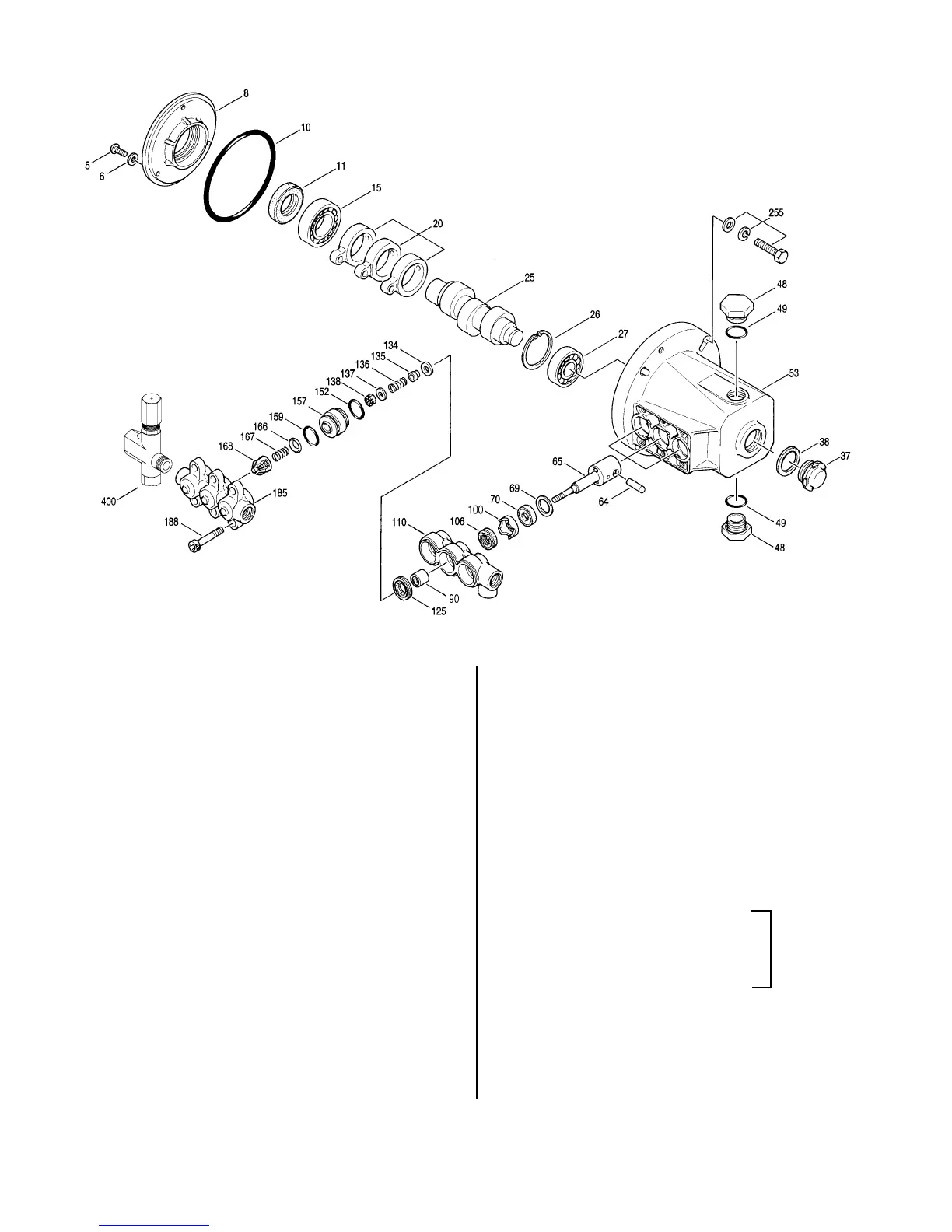

EXPLODED VIEW
Models 2LIDX20E, 2LIDX30E
To Next Page
