TuffStuff HTX-2000 - Assembly Instructions; Step 15: Leg Extension Cable Routing

www.tu stu tness.comHTX-2000 Dual Stack-Funtional Trainer
řŘ
ŝŗ
Śś
şŚ ŝş
Ś
TIE CABLE
A
ND WIRE
řŘ
śŝ
ŗŖŝ
ŝŘ
ŗŖŗ
ŜŞ şś
şř
şś
ŜŞ
śŝ
ŗŜ
řŘ
ŝŘ
27

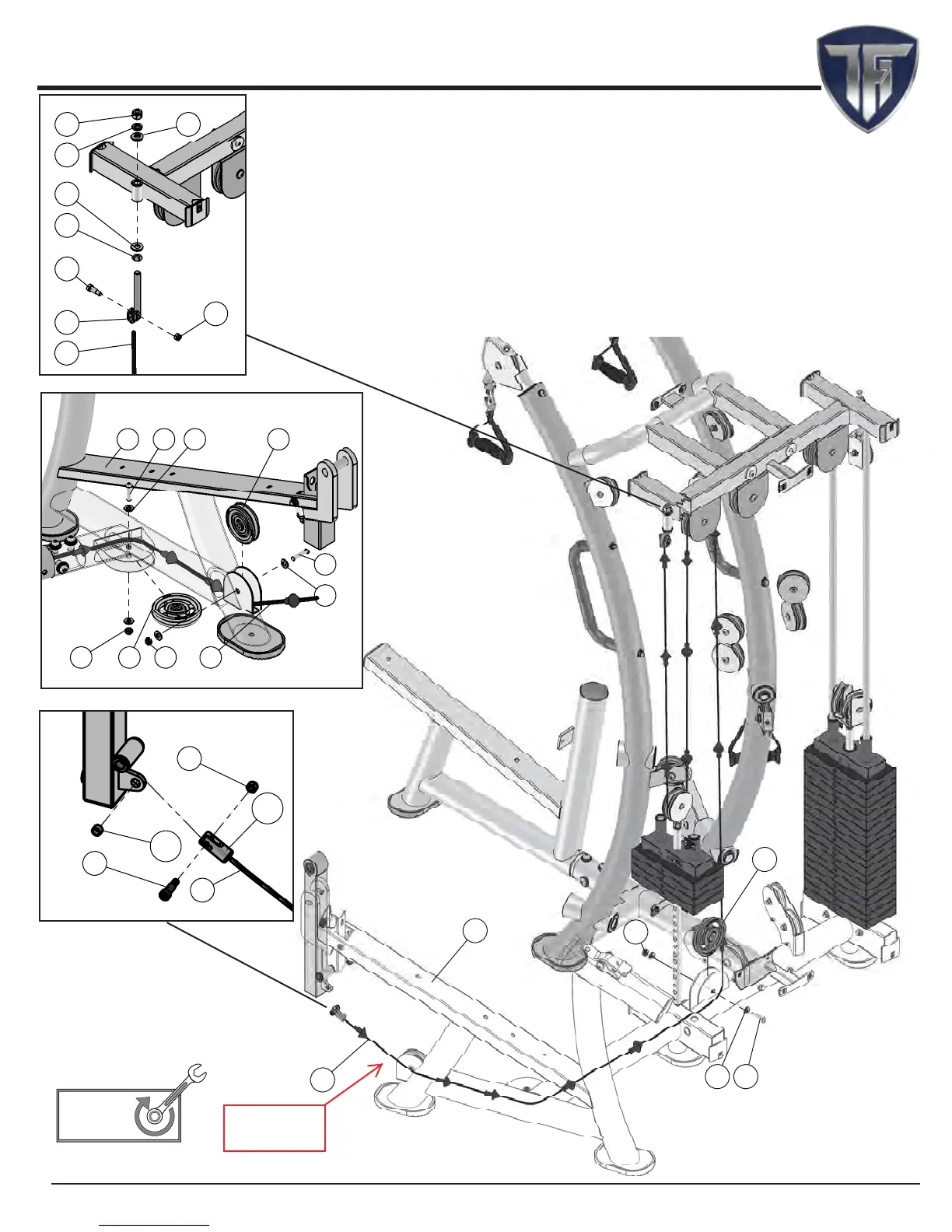

Step 15 Leg Extension Cable Routing
NOTE:
1. SOME PARTS CUT OUT/NOT SHOWN FOR CLARITY.
2. ASSEMBLE PULLEYS (#44, #45) SHOWN ON THIS STEP
UNTILL CABLE IS COMPLETELY ROUTED AND SECURED.
3. TIE CABLE END TO GUIDE WIRE AT LOCATION INDICATED BELOW.
4. CAREFULLY PULL THE GUIDE WIRE OUT THROUGH ITEM #4.
5. DISCARD THE GUIDE WIRE ONCE YOU’VE RUNNED THE CABLE OUT
OF THE FRAME.
6. ASSEMBLE PULLEYS (#44, #45) AND MAKE ANY NECESARY
ADJUSMENTS ON THE ADJUSTABLE CABLE BRACKET #16.
7. MAKE SURE TO TIGHTEN SCREW #91.
ŝş şŚ
ŝŗ Śś
Ś
řŘŝŗ
şŚ
ŝş
ŚŚ
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
