TuffStuff SPT-6X - Page 9

49
67
49
56
49
68
84
43
22
49
56
27
18
76
76
50
50
7
26
58
49
49
67
49
67
49
58
7
7
11

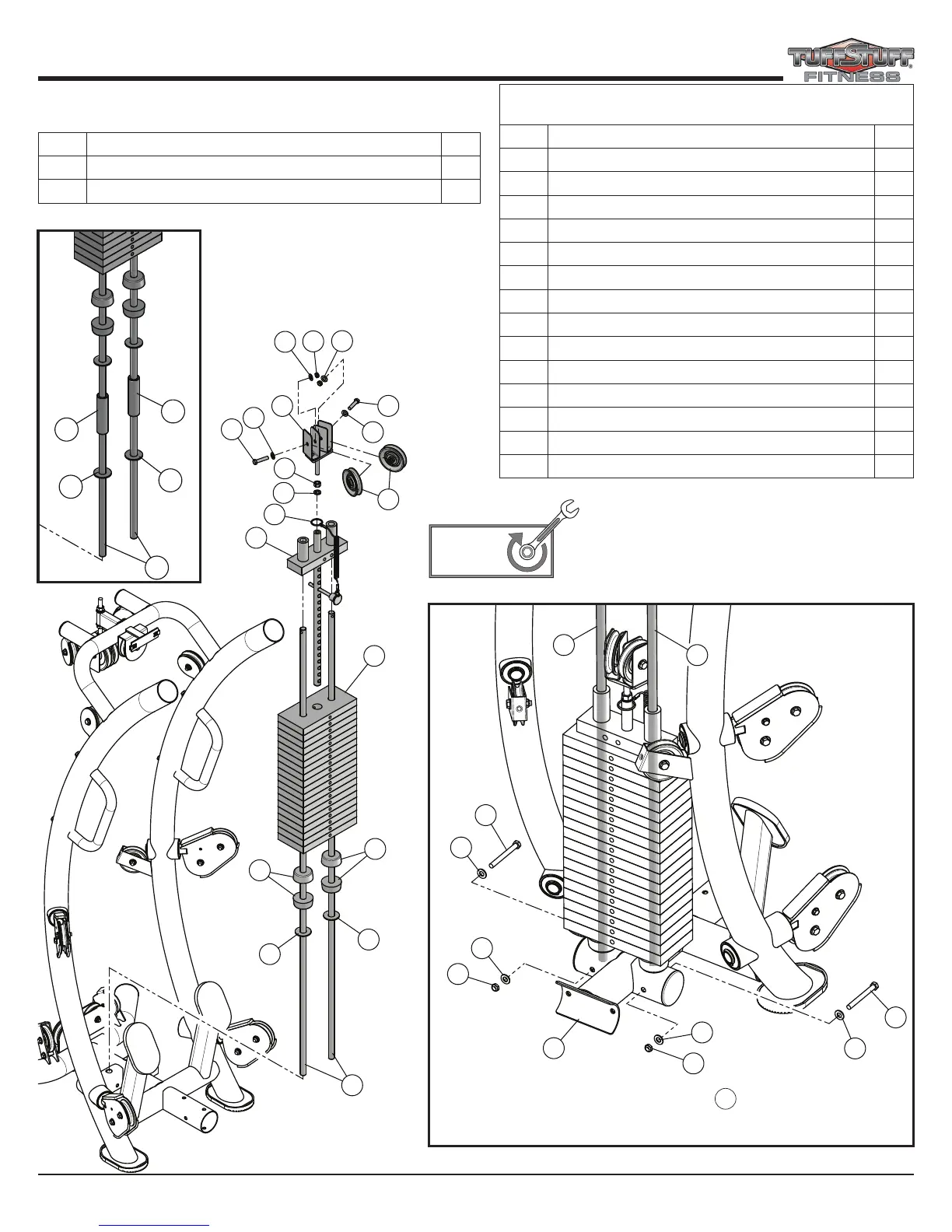

Raise and hold Guide Rods
7
up to assemble
hardware as shown.
NOTE: If Downgrading to 150 lbs.Weight
Stack, you’ll need to assemble:
Item # Description Qty.
50 FLAT WASHER B/O 3/4 X 2” 2
93 WEIGHT STACK SPACER 5” (USED ONLY WITH 150 lbs) 2
as illustrated below.
Assembly List
Item # Description Qty.
7 GUIDE ROD 3/4 RD X 67 1/2 2
18 SELECTOR PIN W/COIL 3/8 X 4 GOLD KNOB 1
22 TOP PLATE PULLEY BRACKETS 1
26 10 LB STEEL WEIGHT PLATE BLACK 19
27 10 LB TOP PLATE W/ADJ SLTR BAR 1
43 FINISHED HEX NUT B/O 1/2-13 1
49 FLAT WASHER SAE B/O 3/8” 8
50 FLAT WASHER B/O 3/4 X 2” 2
56 HEX HEAD CAP SCREW B/O 3/8-16 X 1 3/4 2
58 HEX HEAD CAP SCREW B/O 3/8-16 X 3 1/2 2
67 NYLON INSERT THIN LOCK NUT B/O 3/8-16 4
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 2
76 RUBBER DONUT 1 X 2 1/2 4
84 SPLIT LOCK WASHER B/O 1/2” 1
93
93
50
50
7
100%
Fully Tighten
Wrench tighten all hardware in this step.
9SPT-6X Six-Pak Trainer
www.tuffstuffitness.com
Step 5
