TuffStuff SXT-550 - Assembly Steps; Step 1-7

SXT-550 Deluxe Hybrid Trainer www.tustutness.com
15
84
150
84
84
150
84
*25
*50
*36
85173
85
146
90
*9
90

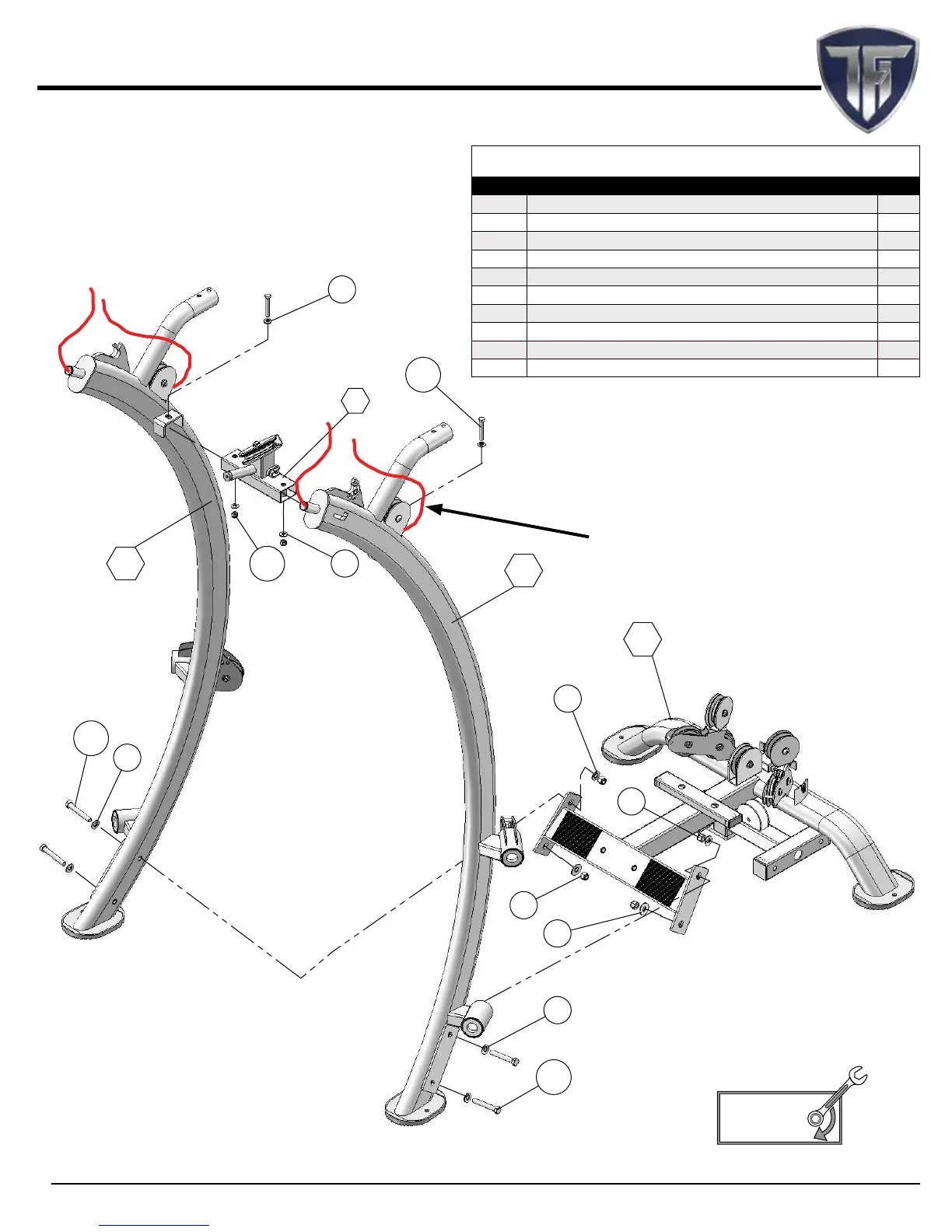

Step 1
Note:
1. It is strongly recommended that two people participate in the assembly of this unit.
Step 1 Assembly List
Item # Description Qty.
*9 TOP CROSS BRACE 1
*25 SIDE FRAME LT 1
*36 REAR STABILIZER 1
*50 SIDE FRAME RT 1
84 FLAT WASHER SAE Z/P 1/2” 8
85 FLAT WASHER SAE Z/P 3/8” 4
90 NYLON INSERT LOCK NUT Z/P 1/2-13 4
146 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2 2
150 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 3 1/4 4
173 NYLON INSERT LOCK NUT Z/P 3/8-16 2
Loosely Tighten
70%
Loosely Tighten
Loosely tighten all hardware in this step.
DO NOT REMOVE
WIRE STRING ON
SIDE FRAMES
