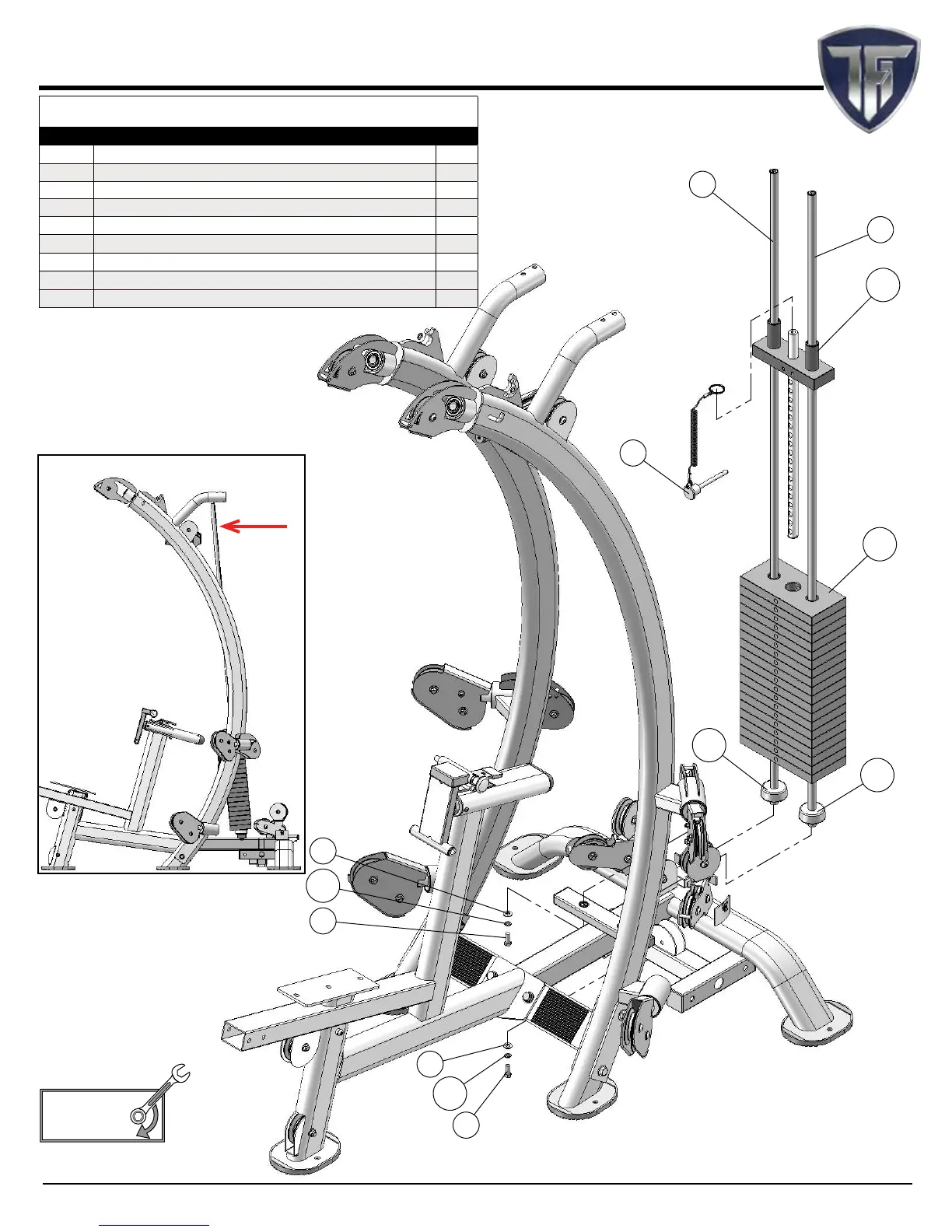

Step 4
Step 4 Assembly List
Item # Description Qty.
14 GUIDE ROD 3/4 X 72 2
42 SELECTOR PIN 1
85 FLAT WASHER SAE Z/P 3/8” 2
94 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 2
125 RUBBER DONUT 3/4 X 2 1/2 2
134 SPLIT LOCK WASHER Z/P 3/8” 2
141 10 LB STEEL WEIGHT PLATE BLACK 4 9/16 X 9 7/16 19
151 10 LB TOP PLATE W/ADJ SLTR BAR 1
167 LABEL-NUMBERS 10-200 LBS/KGS 7/8 X 3... 1
Loosely Tighten
70%
Loosely Tighten
Loosely tighten all hardware in this step.
Note:
1� Once assembled, lean weights forward
to easily assemble Step 5
