15
7.5 A 7.5 B

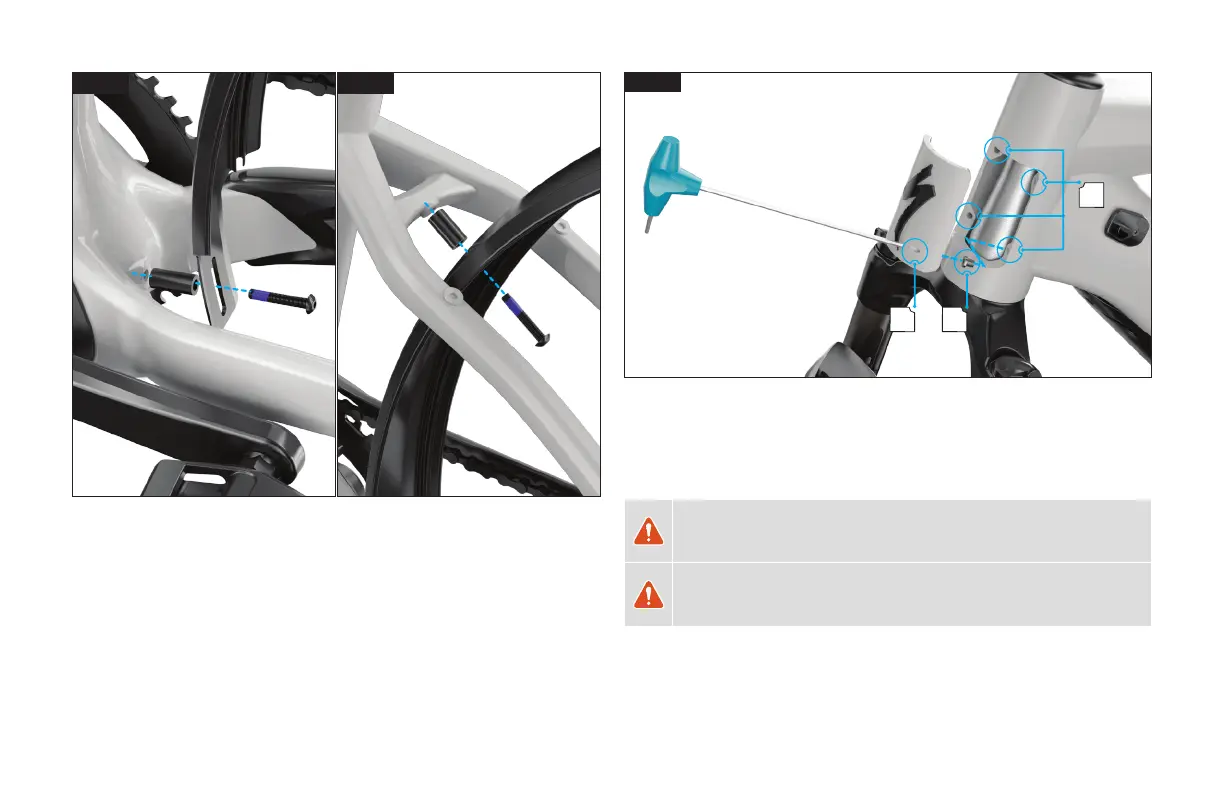

Fig. 7.5
The rear fender is mounted directly to the frame using the chainstay bridge insert (B) and
the seatstay bridge insert (A). Using a 4 mm hex key, torque the bolts to 4 Nm / 35 in-lbf.
C
A
B
7.6
Fig. 7.6
Insert a 2.5 mm hex key into the screw hole (A) on the faceplate and loosen the bolt hidden
in the head tube (B), then remove the faceplate.
The faceplate covers 4 threaded bores (C) which are used to mount the front rack. See the
rack user manual for the proper installation procedure.
WARNING: The maximum allowed cargo weight is 27 kg for the rear rack and
10 kg for the front rack. In addition, make sure to not exceed the structural
weight limit of the bicycle as stated in the Owner’s Manual.
WARNING! Racks and baskets, especially when loaded, will affect the
handling of your bicycle by altering the center of gravity, weight, and balance.
Before your first ride, you should practice riding in a controlled environment.
