41
INSTALL THE REAR WHEEL
C
A
B
12.4

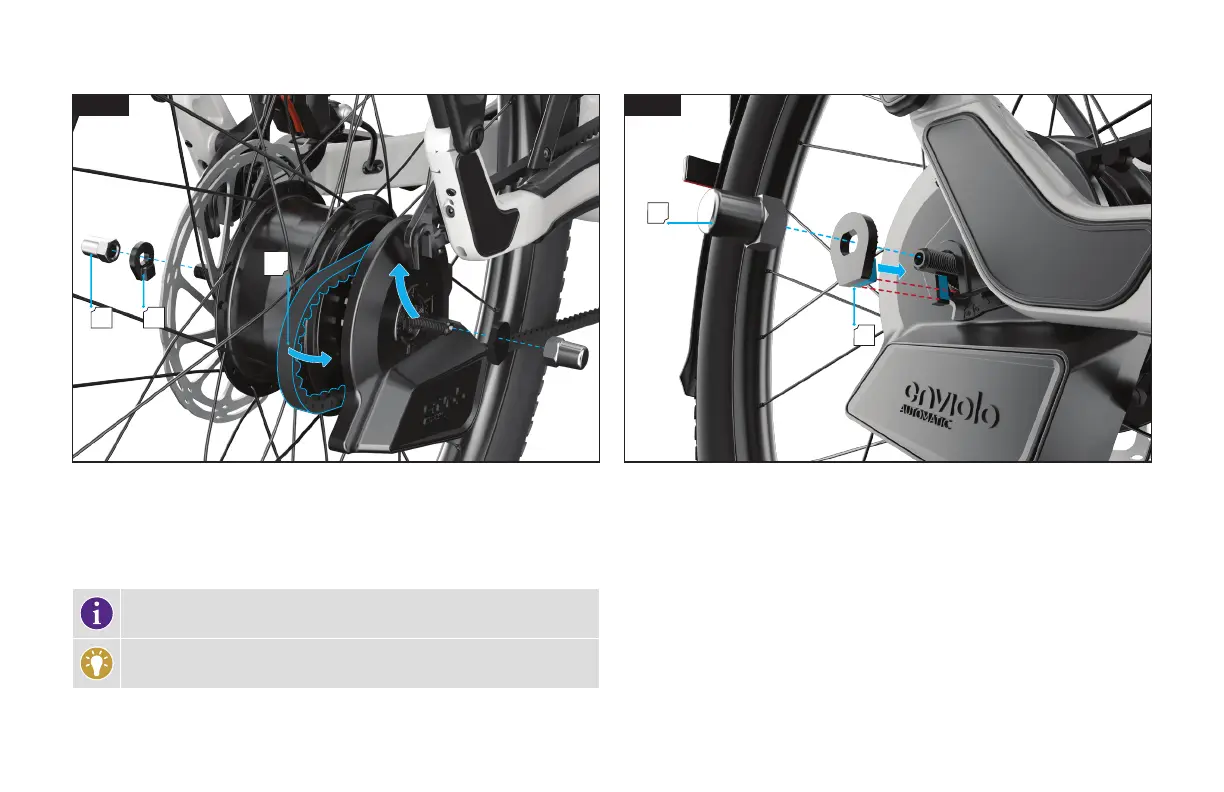

Fig. 12.4
If not already done, remove the rear axle nuts (A) and non-turn washers (B) from the axle
and hold the rear wheel up close to the dropout area.
Place the belt over the hub interface and onto the sprocket (C).
Place the rear wheel into the dropout.
Make sure that neither the AUTOMATiQ connector nor the cable is crushed
or kinked.
In some cases, it is helpful to remove the chain/belt from the front chainring
to simplify the assembly of the rear wheel.
INSTALL THE REAR WHEEL AXLE NUTS
B
A
12.5
Fig. 12.5
Install a non-turn washer (A) on each side. The profiled side of the non-turn Washer must
be aligned towards the frame. The anti-twist device must be located in the dropout.
Install the axle nuts (B) and torque them with a 15 mm wrench to 30-40 Nm.
