To access the adjustment bolts you will need to remove the covers located on the rear dropout.
Using a 2.5 mm hex key, remove both bolts from the rear of the left and right dropouts (A).
Use a flat head screwdriver to lift the covers, then rotate the covers forward toward the
front of the bike and remove them (B).
CAUTION: Do not force the cover open as this will damage the molded clips
on the covers.
SLIDING DROPOUT SPECS
A
B
A
C
12.9

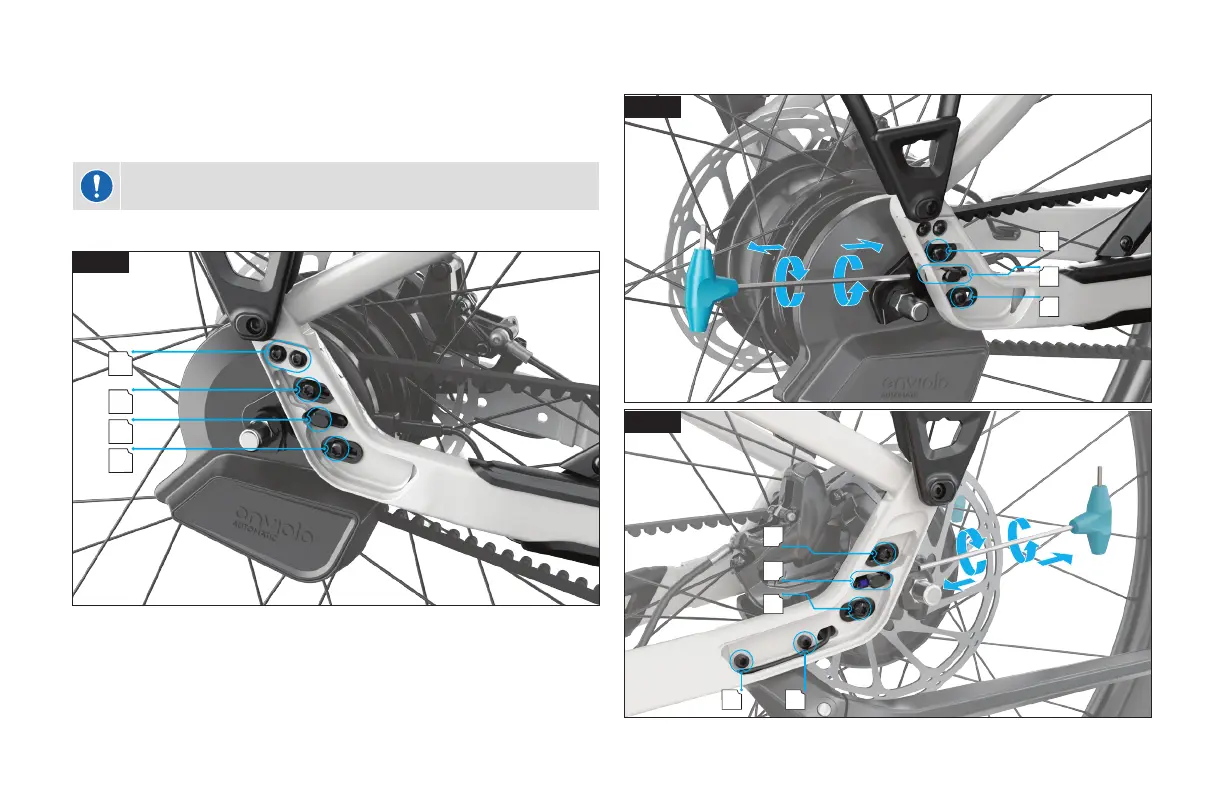

Fig. 12.9
A: Tensioning bolts, T30 Torx
B: Adjustable slide bolt, 3 mm hex key
C: Seatstay coupler bolt, T25 Torx
ADJUST THE SLIDING DROPOUT
A
A
B
12.10 A
A
C
A
C
B
12.10 B
