47 Manchester Series MAN210-FG/MS121/MAN210-HC Rigging Manual

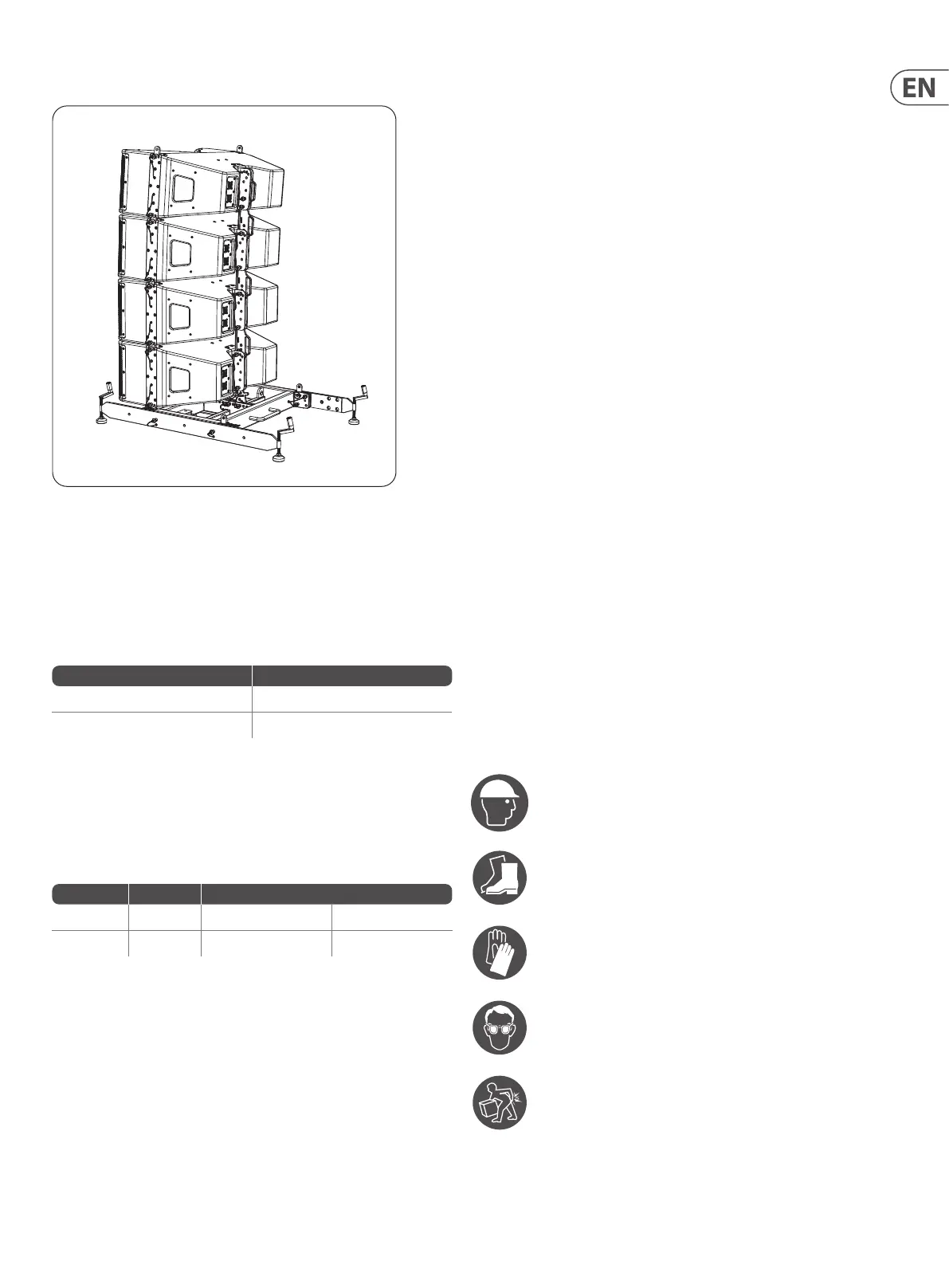

Chapter 8: Groundstack MV210-HC Array
8.0.1 Required Components
Item Quantity
MAN210-FG Fly Grid 1
MV210-HC Cabinet 6 maximum
8.0.2 Location
The groundstack should be located on a at, horizontal, and dry surface, capable
of supporting the weight of the complete assembly.
8.0.3 Measured Weights
Item Quantity Weight
MAN210-FG 1 32.8 kg 72.3 lbs
MV210-HC 1 35.5 kg 78.3 lbs
The following procedure describes how to assemble a groundstack with a
MAN210-FG y grid and its outriggers as a base, and an array of MV210-HC
cabinets on top.
! WARNING
DO NOT EXCEED A TOTAL QUANTITY OF 6 x MV210-HC CABINETS FOR THIS
GROUNDSTACK CONFIGURATION. FAILURE TO FOLLOW INSTRUCTIONS MAY CAUSE
PERMANENT INJURY OR DEATH.
! WARNING
ALWAYS USE THE TWO OUTRIGGERS CONNECTED TO THE MV210FG FLY GRID
WHEN GROUNDSTACKING AN ARRAY OF MV210HC CABINETS.
! WARNING
WHERE POSSIBLE ALWAYS SECURE THE GROUNDSTACKED SPEAKERS TO THE
STACKING SURFACE WITH ADDITIONAL FIXINGS SUCH AS RATCHET STRAPS.
8.0.4 Personnel
The following procedures shall be undertaken by experienced, certied, qualied,
and authorised personnel only. The procedures require the use of three or more
authorised persons.
Protective Headwear shall be worn
Protective Footwear shall be worn
Protective Gloves shall be worn
Protective Eyewear shall be worn
Practice Safe Lifting
