Turbosound MANCHESTER Series User Manual

37 Manchester Series MAN210-FG/MS121/MAN210-HC Rigging Manual

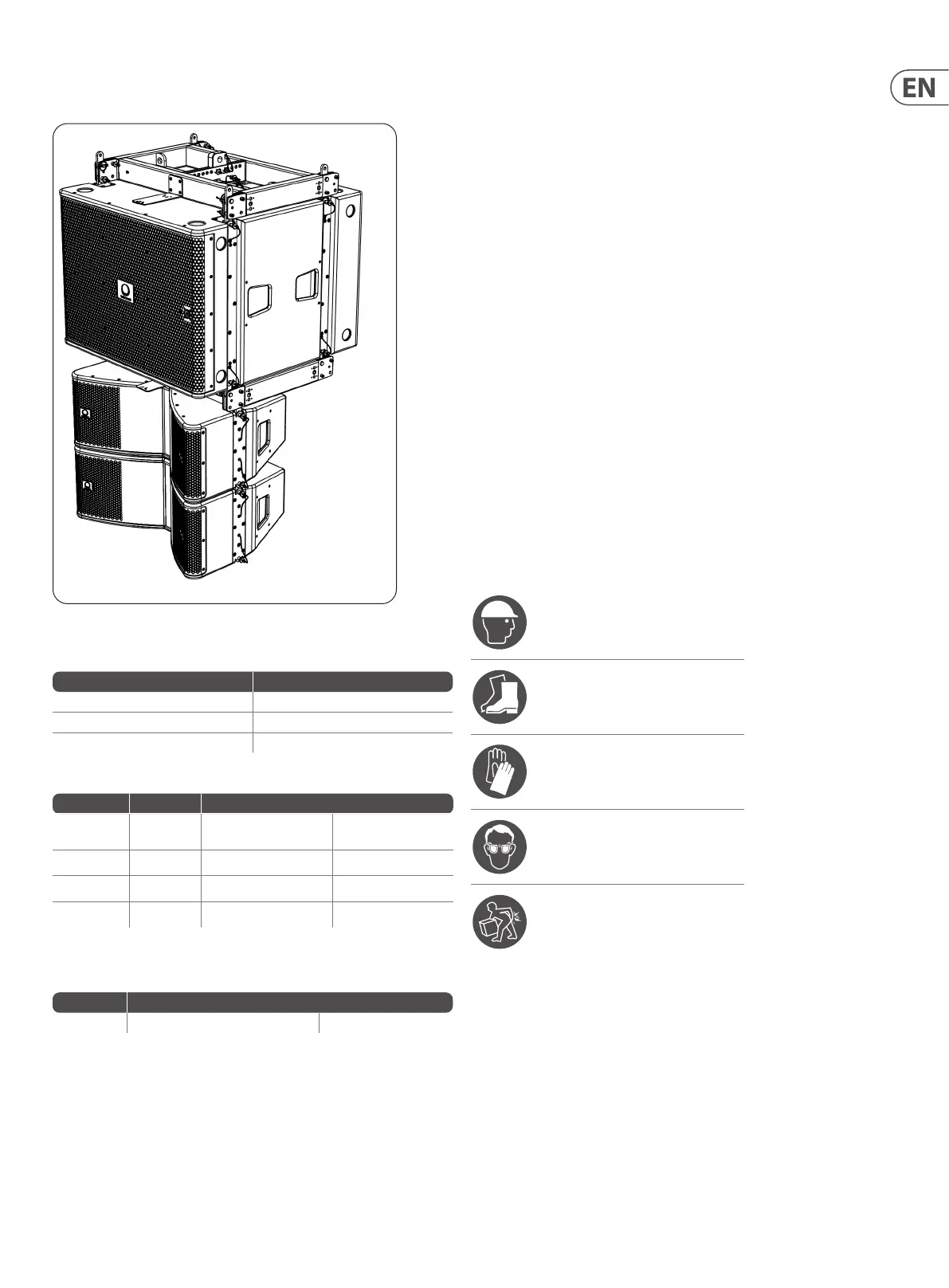

Chapter 5: Assembling an MV210-HC Array with a MS121 Subwoofer
5.0.1 Required Components
Item Quantity
MAN210-FG Fly Grid 2
MS121 Subwoofer 1
MV210-HC Cabinet 1
5.0.2 Measured Weights
Item Quantity Weight
MAN210-FG
with tip bar
1 32.8 kg 72.3 lbs
MAN210-FG 1 21.6 kg 47.6 lbs
MV210-HC 1 35.5 kg 78.3 lbs
MS121 1 87.5 kg 192.9 lbs
5.0.3 MAN210-FG Fly Grid WLL (10:1 Safety Factor)
Item Working Load Limit (WLL) 4 Point Suspension
MAN210-FG 821 kg 1810 lbs
The following procedure describes how to assemble a mixed array consisting of
one MS121 subwoofer and MV210-HC cabinets below it.
One MAN210-FG y grid is attached to the top of the MS121 subwoofer, using
components supplied with the MAN210-FG y grid. The Tip Bar may be used or
the single shackle plate.
A second MAN210-FG y grid is attached to the bottom of the lowest MS121
subwoofer, using components supplied with the MAN210-FG y grid.
! WARNING
VARIOUS MIXTURES OF MV210-HC CABINETS AND MS121 SUBWOOFERS CAN BE
CONFIGURED BUT DO NOT EXCEED A TOTAL WEIGHT OF 821 KG.
! WARNING
THIS ARRAY SHALL ONLY BE MADE WITH THE MS121 SUBWOOFER ON TOP, AND THE
MV210-HC CABINETS BELOW, AND WITH TWO MAN210-FC FLY GRIDS. FAILURE TO
FOLLOW INSTRUCTIONS MAY CAUSE PERMANENT INJURY OR DEATH.
5.0.4 Personnel
The following procedures shall be undertaken by experienced, certied, qualied,
and authorised personnel only. The procedures require the use of three or more
authorised persons.
Protective Headwear shall be worn
Protective Footwear shall be worn
Protective Gloves shall be worn
Protective Eyewear shall be worn
Practice Safe Lifting
