52 Manchester Series MAN210-FG/MS121/MAN210-HC Rigging Manual

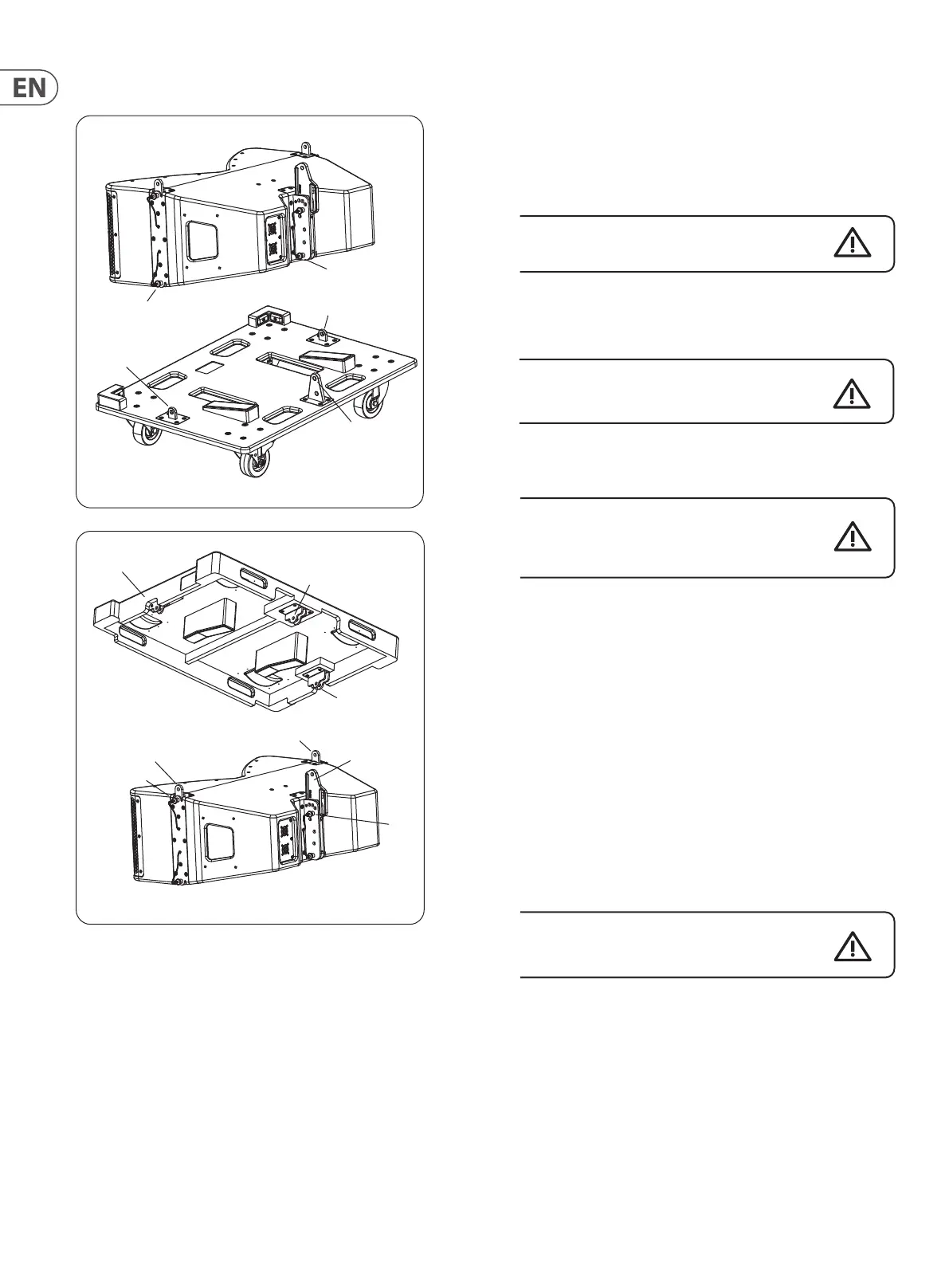

1. Prepare the rst MV210-HC cabinet, by pulling out the front lower rigging
pins (1), and the rear lower rigging pin (2).
2. Carefully lift the MV210-HC cabinet until its lower front mounting slots t
over the 2 front mounting links (3) of the MV210-VT. Reinsert the front pins
(1) to secure the MV210-VT mounting links (3) to the MV210-HC.
Take care not to trap your ngers between components.
3. Align the MV210-HC cabinet's rear lower mounting hole with the top hole in
the MV210-VT rear mounting link (4). Reinsert the rear pin (2) to secure the
rear of the MV210-HC to the MV210-VT rear mounting link.
Double check that all pins are correctly inserted,
before proceeding further.
4. A maximum of three more MV210-HC cabinets can be added to the rst ,
using the same procedure as shown in the section on ground stacking.
Make sure the angles are set at zero degrees as indicated by the
angle markings on the rear mounting plate of each MV210-HC.
The top cabinet's rear mounting plate is set to 7.5 degrees
5. When the last cabinet has been added, the top lid of the MV210-VT can be
added as follows, to protect the cabinets.
6. Prepare the top MV210-HC cabinet for attaching the top lid of the MV210-VT,
by pulling out the 2 front upper rigging pins (5). The spring-loaded top links
(6) will move to the up position. Reinsert the pins (5) to secure the links (6) in
the up position.
7. Pull out the rear upper rigging pin (7), and slide the MV210-HC's rear mounting
plate (8) upwards and reinsert the rigging pin (7) into the 7.5/15/FG hole.
8. Pull out the rigging pins (9 and 10) from the top lid of the MV210-VT.
9. Lower the top lid onto the top of the upper MV210-HC cabinet and carefully
align it so the mounting positions in the top lid t over the MV210-HC top
links (6) and the rear mounting plate (8).
10. Reinsert the front pins (9) to secure the front links (6) to the top lid. Reinsert
the rear pin (10) to secure the rear mounting plate (8) to the top lid.
Double check that all pins are correctly inserted.
! WARNING
DO NOT EXCEED A TOTAL QUANTITY OF 4 MV210-HC CABINETS FOR EACH MV210-VT.
FAILURE TO FOLLOW INSTRUCTIONS MAY CAUSE PERMANENT INJURY OR DEATH.
9. 1 Attaching MV210-HC cabinets to the MV210-VT
1
2
3
4
3
5
6
6
8
7
9
10
9
