12 Milan Series
Getting Started – Milan M10, M12 and M15

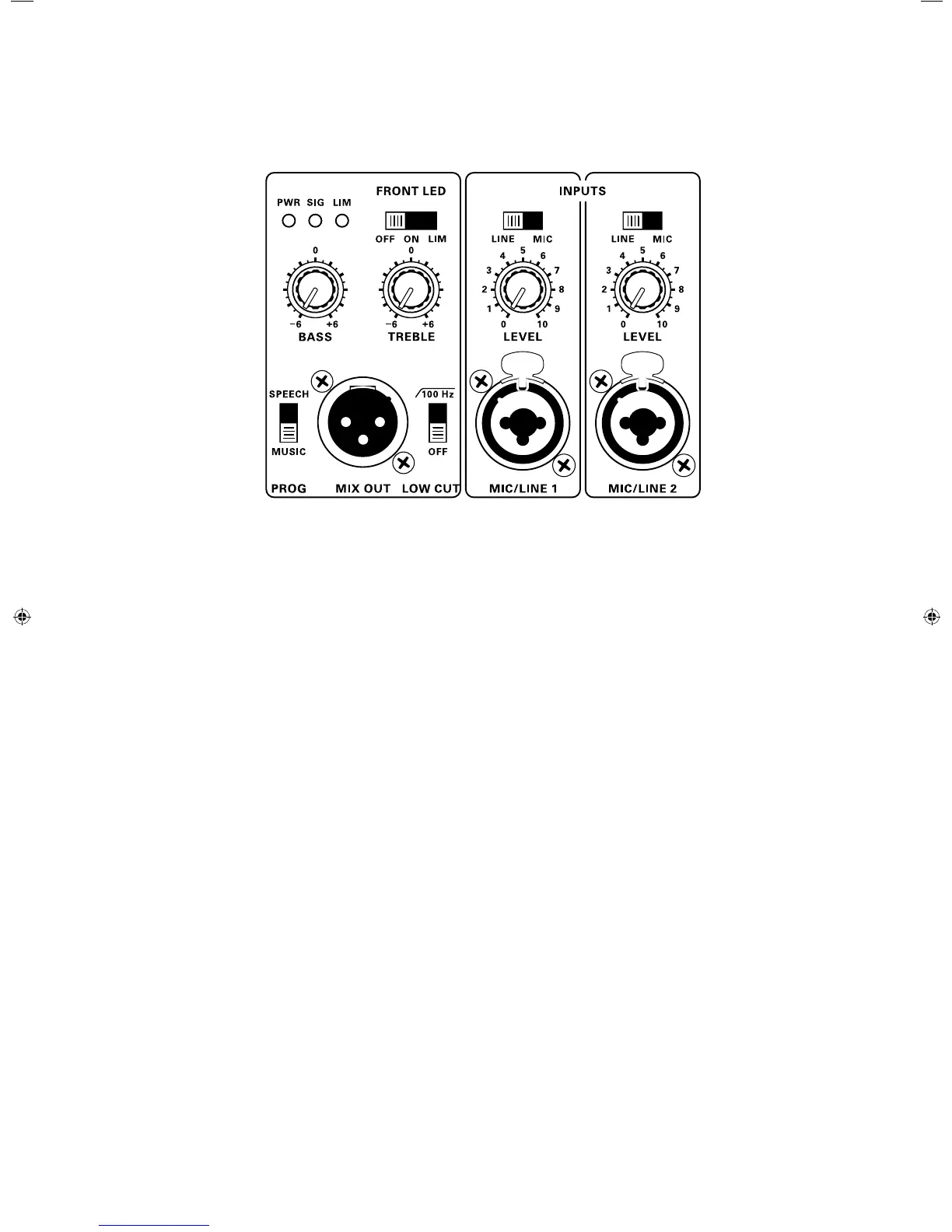

1. Turn the level controls fully anticlockwise (zero) on both input channels.
2. Set the BASS and TREBLE tone controls to their centre position (no boost or cut).
3. Connect your signal sources (mixing console, keyboard, microphone, acoustic guitar) to the
appropriate input connectors and select MIC or LINE as appropriate for that source.
4. If the loudspeaker is to be used as a fl oor monitor, or for use with subwoofers, set the LOW CUT
switch to the '100 HZ' position (up); otherwise select the 'OFF' position (down).
5. Switch on the mixer or other source and make sure the output faders or master output level
controls are turned fully down.
6. Connect the AC mains cable to the Milan loudspeaker and turn on the mains switch. The blue PWR
LED will illuminate to indicate that mains power is connected.
7. Increase the output level of the signal source to a normal operating level.
8. Slowly turn up the Milan loudspeaker’s level control(s) until a suitable volume level is reached.
The SIG LED illuminates green to indicate signal present. The LIM LED fl ashes red when the
system limiting although it is normal for the LIM LED to fl ash occasionally. Excessive or prolonged
illumination indicates that the input signal is too high or that additional speakers are required.
9. When shutting down the Milan system, fi rst turn down the input level controls, then switch off the
mains power before turning off the mixer or signal source.
