TFS-780 user manual
Page 22
15.

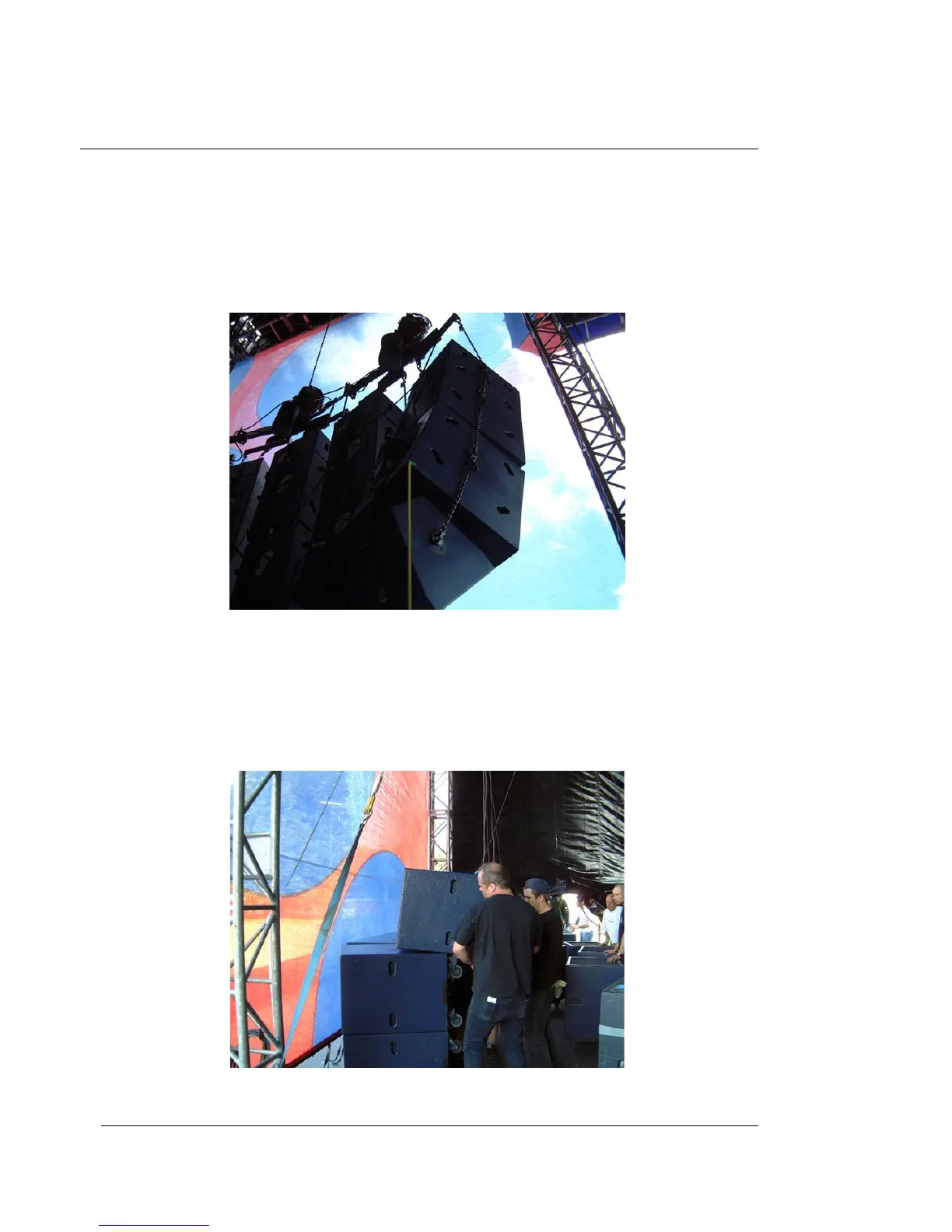

Attach the end of a long tape measure to the back corner of the lowest onstage
Flashlight cabinet. Raise the PA and note the exact height above the stage so that you
can mirror this vertical position to the other cluster. This will ensure that the both left
and right PA clusters are level.
16.
When the flown arrays are in position, wheel in the Flashlight bass enclosures, and stack
them on the stage wings in three columns each of six cabinets. All the boxes are placed
on their sides, and mutual coupling is acheived by placing them ‘door to door’ so
forming a larger horn mouth. The two off-stage columns are stacked, with sides
touching and facing perpendicular to the stage edge, while the on-stage column is
angled inwards several degrees to point directly towards the mix position.
