Mechanical Installation
Copyright © 2022 ves-artex.com | All Rights Reserved

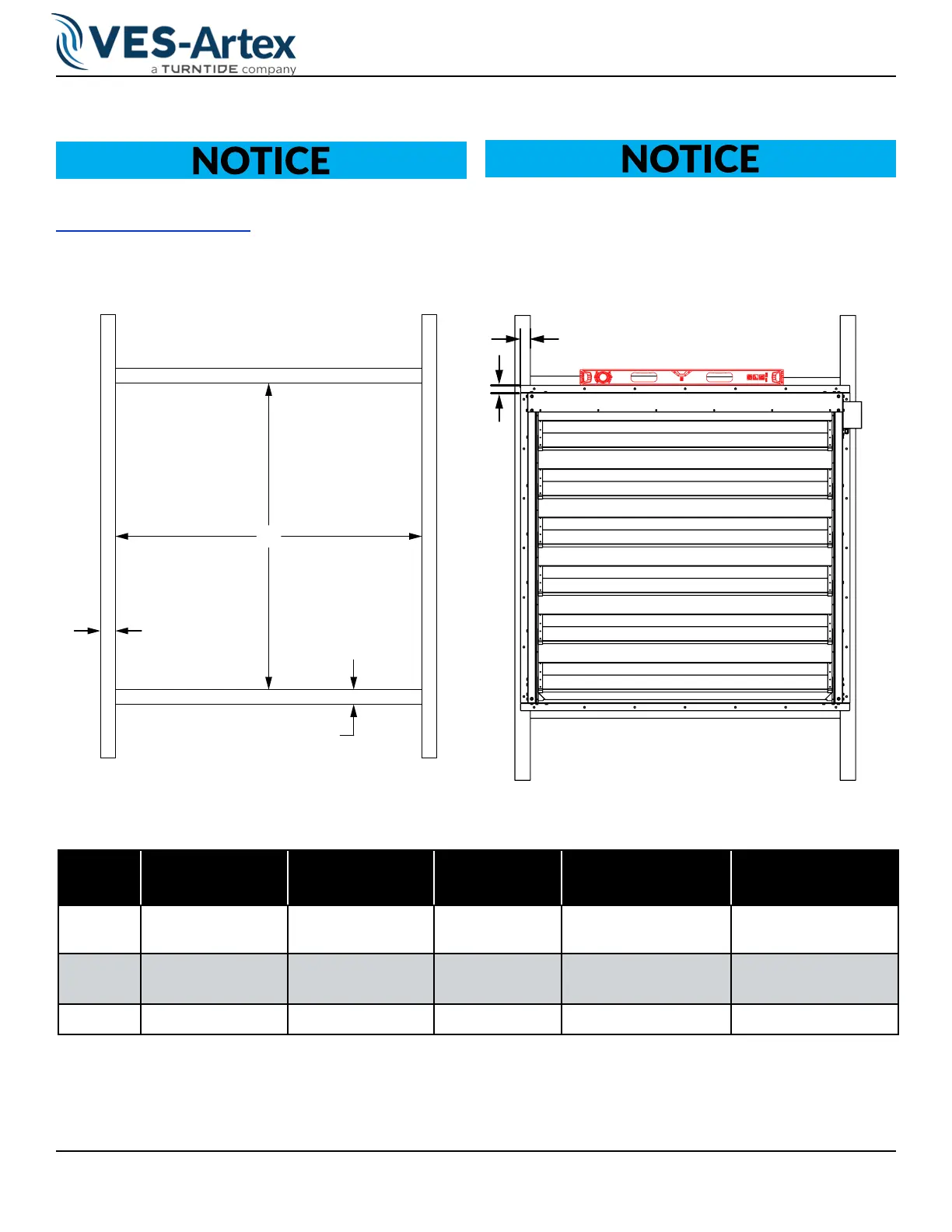

PPF Rough Opening PPF ASK Mounting
Be sure to follow all dimensions listed in manual or
"Warranty" on page 4-11 will be void. Contact
VES-Artex if you are unsure of dimensions listed.
Mechanical Installation
*Units are inch (cenmeter) unless noted otherwise
** If inside deector kit is install add 3 (7.5)
Fan
Model
A - Rough Opening
Width x Height
B - Min. Horizontal
Frame Width
C - Min. Vertical
Frame Width
D - Fan Flange Side to
Rough Opening
E - Fan Flange Top to
Rough Opening
PPFS72
PPFD72
78 1/2 (199) 4 (10) 4 (10)** 3 1/4 (8) 2 3/4 (7)
PPFS55
PPFD55
59 1/2 (151) 5 1/2 (14) 4 (10)** 3 1/4 (8) 2 3/4 (7)
PPFV36 40 (101.5) 4 (10) 4 (10)** 2 (5) 2 1/8 (5)
E
A
B
C
Measure and mark level lines (see D & E) for proper
posion to mount the fan.
