20
The repeater is waterproof and can be exposed to the outside elements without being damaged. To review
the repeater specification, please refer to the Section 3.2.
<IMPORTANT 5>
When mounting the repeater, the power cord side of the repeater must be facing the tow vehicle and the
arrow on the “Trailer Side↑” sticker must be pointing toward the trailer wheels in order to work properly as
shown in FIGURE 5.2

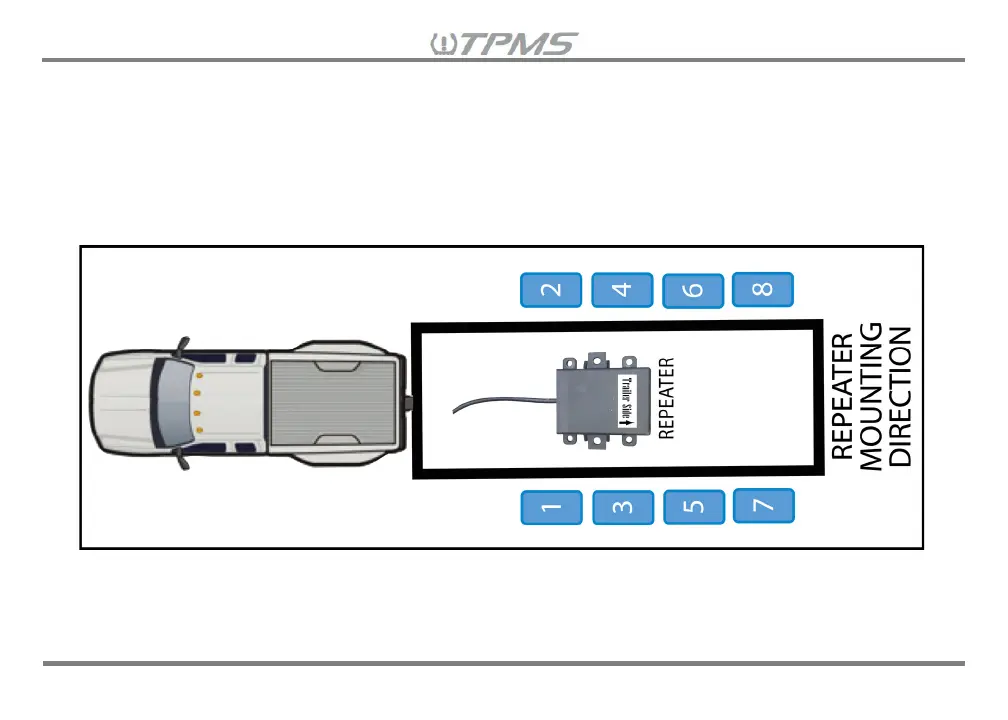

Figure 5.2 Repeater Mounting Direction
5.2.1 For travel, cargo or equipment trailers with a bumper pull A-frame hitch, see Figure 5.2.1
locations “A” and “B” for recommend repeater mounting locations. Location “A” is on an exposed
