9. Alarm Warning and Display Symbols

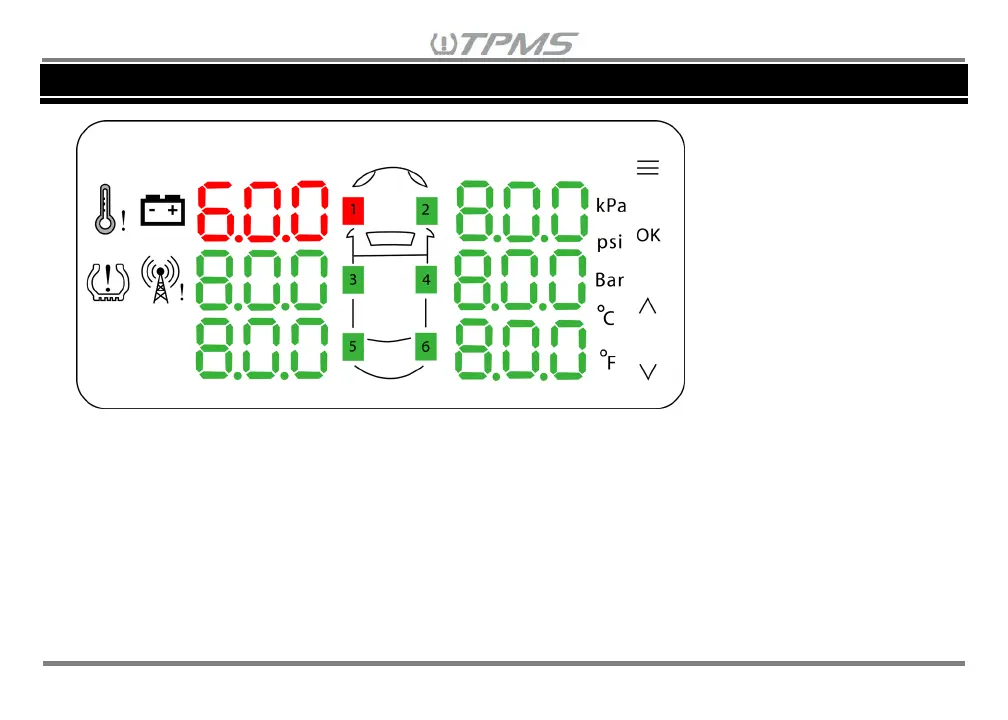

The Tuson TPMS system is designed to detect any pressure, temperature or trailer battery values that
are above or below the set limits, those values that are outside the set limit will change from green to red
values and an alarm display symbol will appear (some alarms are accompanied by a sound alert) to
indicate an issue has been detected. These alarm indicators will continue until issue has been addressed
and the values return to an acceptable range. For a detailed chart of the all the alarm messages please
see Section 9.1 Alarm Display Symbols Key.
Below is a list of the Tire Sensor Alarm Warnings:
• Warning of excessive high tire pressure indicates tire pressure has been risen to 50% or more of the
standard tire pressure value set by the user.
