22

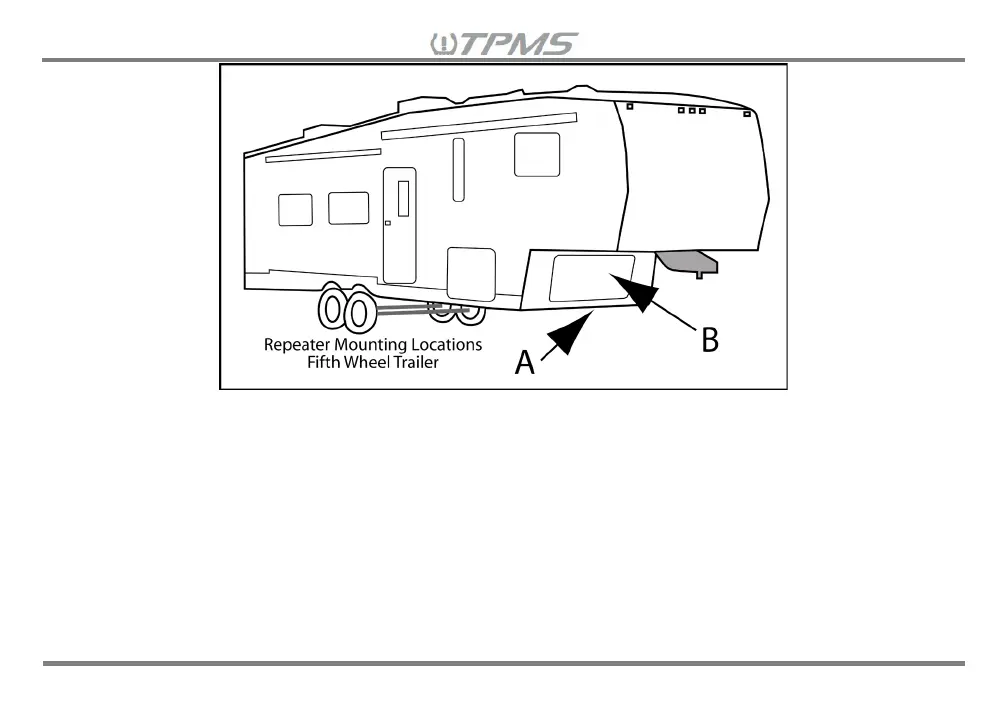

Figure 5.2.2 Repeater Mounting Locations Fifth Wheel Trailer
5.2.3
The repeater comes with a peel off adhesive foam pad and self-tapping screws that go through the
mounting holes on the edge of the housing to securely mount the repeater. Before permanently
mounting the repeater with the screws, temporarily mount the repeater to the desired location and
confirm that the sensor(s) and trailer battery data is being received and displayed by the receiver.
The sensors are activated by either driving for a short distance or adding/removing air pressure
from the tires. Once the readings appear for all of the installed sensors and the trailer battery
voltage is showing, the repeater mounting location has been confirmed. Make sure the repeater is
mounted in the correct orientation, use the adhesive foam pad and/or the self-tapping screws to
