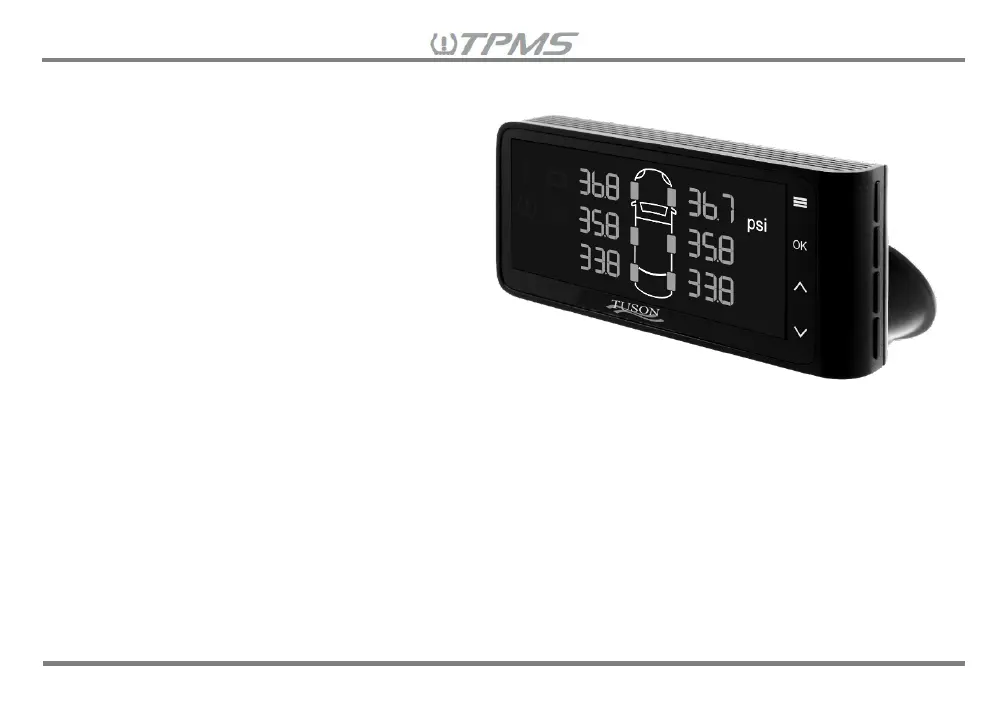

2.5 Receiver Description
The receiver (monitor) allows the driver to
monitor the tire pressure and temperature of up
to 10-wheels for up to 3-vehicle memory
selections. The receiver will also monitor trailer
battery voltage when the repeater is connected
to a trailer battery. A 12~24V cigarette lighter
cable is included to power the receiver in the
tow vehicle. The Tuson Display Power Cable
(sold separately) can also be used to power the
receiver with a 9V battery to make the “Tire
Sensor ID Pairing” in section 9.5 easier. The
receiver has two menus: Driving Mode and
Setting Mode. When in Driving Mode, the
receiver will automatically cycle between pressure, temperature, and trailer battery for that selected vehicle
memory. When in Settings Mode, you can select the vehicle memory to customize and monitor when in
Driving Mode. When monitoring more than 6-wheels on a vehicle memory, the Driving Mode will display
the pressure and then temperature for the first 6-wheels and then the pressure and temperature for the
additional wheels in the next screen before moving to the trailer battery voltage screen. Alerts on the
receiver will continue to appear until the issue with the sensor or repeater has been addressed/cleared.
See section “6. TPMS Receiver Installation” on how to install the receiver and button functions.
