Tuthill 150 - Flow by Direction

Manual 2003 Rev D p/n 2003
7
04
Description
INLET INLET INLET
DISCHARGE DISCHARGE DISCHARGE

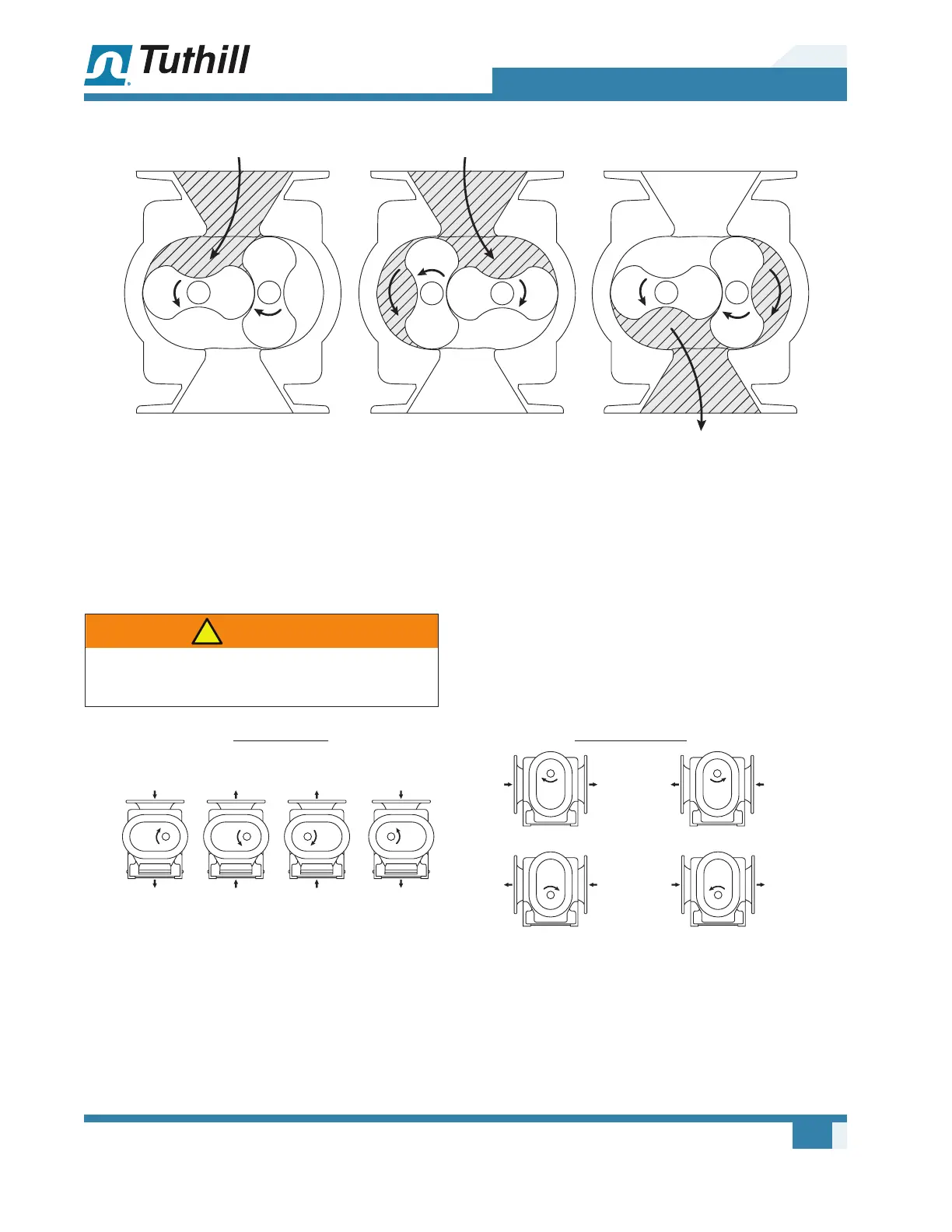

Figure 4-1 – General Operation Principle
FLOW BY DIRECTION
WARNING
!
Refer to diagrams in this manual for proper
rotation and orientation in inlet and discharge.
INTAKE
INTAKE
DISCHARGE INTAKE
DISCHARGE
HORIZONTAL FLOWVERTICAL FLOW
DISCHARGE
INTAKE DISCHARGE
INTAKE
DISCHARGE
RIGHT DRIVE
CW ROTATION
LEFT DRIVE
CW ROTATION
LEFT DRIVE
CCW ROTATION
RIGHT DRIVE
CCW ROTATION
TOP DRIVE
CW ROTATION
TOP DRIVE
CCW ROTATION
BOTTOM DRIVE
CW ROTATION
BOTTOM DRIVE
CCW ROTATION
DISCHARGEINTAKE INTAKE
INTAKEDISCHARGE DISCHARGE
Figure 4-2 – Flow Direction by Rotation
