Installation

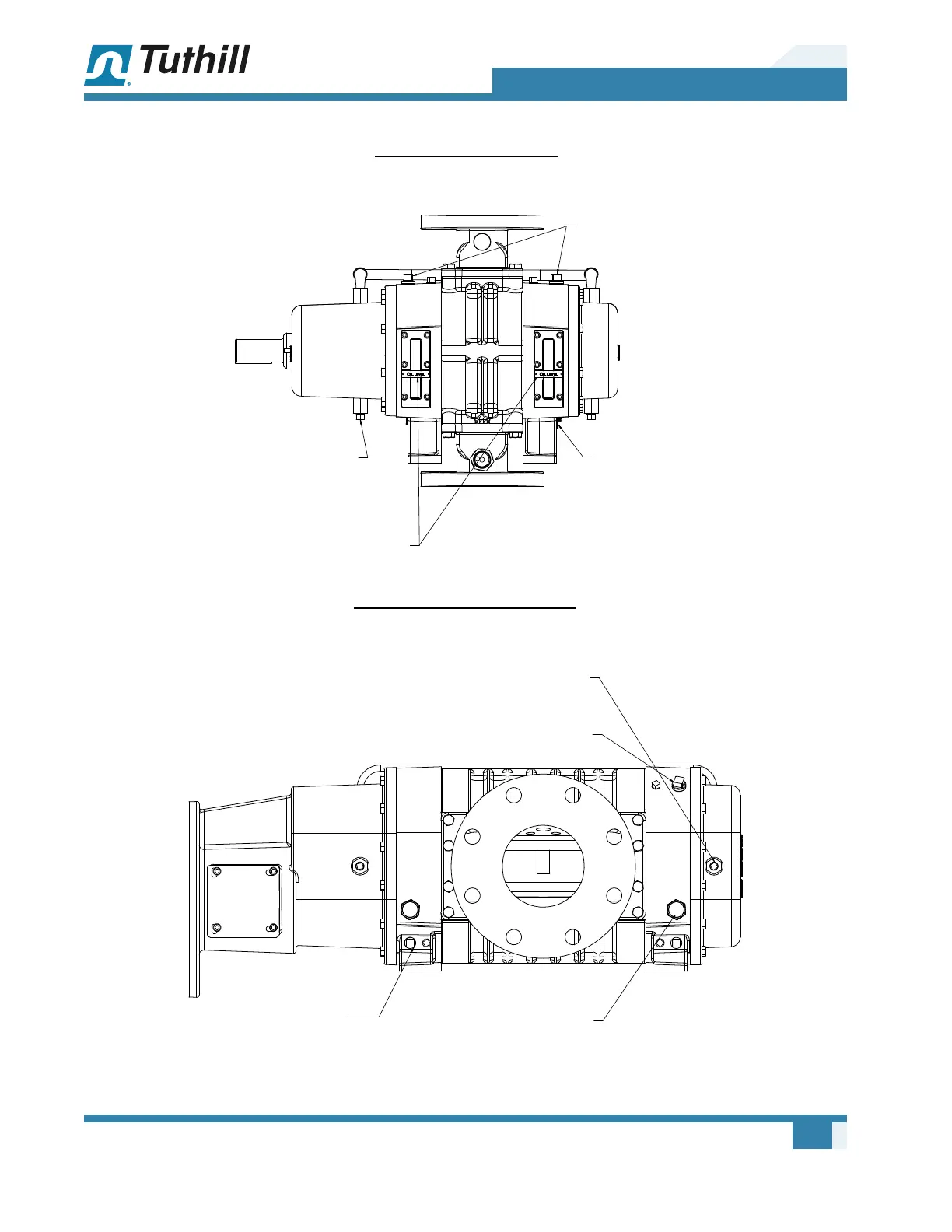

Figure 5-2 – Oil Fill, Drain and Level Plugs, and Level Gauges
(C-FLANGE SHOWN)
HORIZONTAL FLOW
(EACH END PLATE)
(EACH END PLATE)
(EACH COVER)
COOLING WATER INLET/OUTLET
MAGNETIC OIL DRAIN
OIL LEVEL GAUGE
OIL FILL PLUG
(EACH END PLATE)
