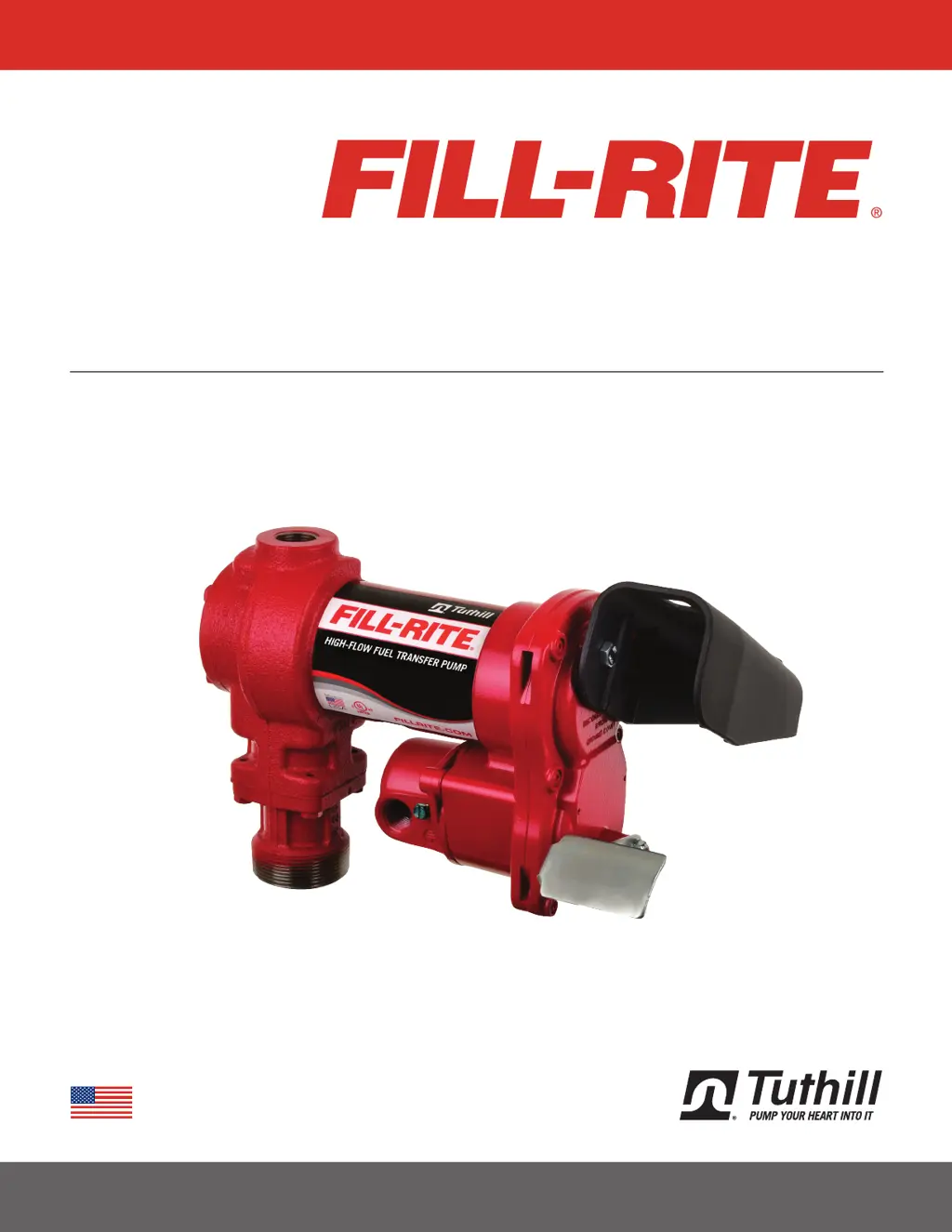

MADE IN

USA

H-SERIES FUEL TRANSFER PUMPS

FR1200, FR2400, FR4200, FR4400, FR600, SD1200, SD600

Installation and Operation Manual

Table of Contents

Questions and Answers:

S
Stephanie BarreraAug 13, 2025
How to troubleshoot a Tuthill Water Pump that won't prime?
- H
  Heather AyalaAug 13, 2025
  If your Tuthill Water Pump won’t prime, several issues could be the cause. First, check the suction line for any leaks or restrictions. Also, inspect the bypass valve to ensure it moves freely and is free of debris. Examine the vanes and rotor slots for any nicks, burrs, or wear. Inspect the rotor and vanes for excessive wear or damage, and replace them if necessary. If you are using an automatic nozzle, remove it to prime the pump. Finally, check the filter and bypass valve for debris and remove the nozzle to test the flow with the pump on.
F
floreselizabethAug 16, 2025
What to do if Tuthill FILL-RITE FR1200 Water Pump has low capacity?
- J
  Jeffery RyanAug 17, 2025
  If your Tuthill Water Pump has low capacity, start by removing and cleaning the screen to eliminate excessive dirt. Check the suction line for leaks or restrictions. Inspect the bypass valve to ensure it moves freely and is free of debris. Check the pump outlet hose, nozzle, and filter for any blockages. Inspect the vanes and rotor slots for wear, and replace them if necessary. Check the rotor and vanes for excessive wear or damage, and replace if needed. Replace any damaged hoses or nozzles, preferably with UL-rated ones. Replace the filter if it's plugged. Finally, ensure the fluid level is adequate and fill the tank if it's low.
S
Sarah HorneAug 20, 2025
Why does the Tuthill Water Pump motor stall and blow fuses?
- K
  Kimberly KnightAug 21, 2025
  If the motor of your Tuthill Water Pump stalls, the fuse blows, or the thermal protector trips repeatedly, start by inspecting the bypass valve to ensure it moves freely and is free of debris. Check the incoming supply line voltage to rule out low voltage. Examine the rotor and vanes for excessive wear or damage. Finally, clean any debris from the pump cavity.
I
igardnerAug 25, 2025
How to fix fluid leakage in Tuthill FILL-RITE FR1200 Water Pump?
- R
  robinsonvalerieAug 25, 2025
  If you notice fluid leakage from your Tuthill Water Pump, check and replace all O-ring gaskets on the rotor cover, inlet flange, and bypass cap. Replace the shaft seal. Refer to the wetted parts list to the fluid manufacturer to ensure fluid compatibility. Also, ensure all fasteners are tightened.
C
Corey HowardAug 27, 2025
Why is my Tuthill FILL-RITE FR1200 Water Pump motor overheating?
- D
  Dalton CookAug 28, 2025
  If the motor of your Tuthill Water Pump overheats, it might be due to transferring high viscosity fluids, which should only be done for short periods (less than 30 minutes). Remove the inlet and clean the screen. Remove and clean any restricted suction pipes. For motor failure, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT).
K
Kathy CampbellAug 31, 2025
What causes a Tuthill Water Pump to run slowly?
- S
  Shannon JonesAug 31, 2025
  If your Tuthill Water Pump runs slowly, check the incoming supply line voltage to ensure it is correct. Inspect the vanes and rotor slots for nicks, burrs, and wear. Check for loose connections in the wiring. For a motor problem, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT).
J
Jamie PierceSep 4, 2025
Why is the motor of my Tuthill FILL-RITE FR1200 Water Pump inoperable?
- D
  dawnsanchezSep 4, 2025
  If the motor of your Tuthill Water Pump is inoperable, check the incoming supply line power. Use a multimeter to isolate any issues with the supply line power. For motor failure, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT). Clean and check the pump rotor, repairing as needed with KIT120RG if there is a locked rotor. Verify correct wire size with local, state, and national electric codes if there is incorrect or loose wiring.
M
Mallory WolfeSep 8, 2025
What to do if Tuthill FILL-RITE FR1200 hums but does not operate?
- M
  Mckenzie MccoySep 8, 2025
  If your Tuthill Water Pump hums but will not operate, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT) because it may be a motor failure. Also, remove any debris and replace the key if the rotor key is broken.

Tuthill FILL-RITE FR1200 Specifications

General

Brand	Tuthill
Model	FILL-RITE FR1200
Category	Water Pump
Language	English

Summary

Safety and Preparation

Symbols and Definitions

Safety Information and Precautions

DANGER: Fire and Serious Injury Risks

Warns against smoking, open flames, sparks, and improper electrical wiring.

WARNING: Electrical and Static Safety

Stresses licensed electricians, conduit use, and grounding for static electricity.

CAUTION: Operational Safety Measures

Installation Procedures

Stationary Tank Mounting

Mounting procedures for stationary tanks, pipe length, and vent caps.

Mobile Tank Mounting

Mounting procedures for mobile tanks, suction pipe options, and vent caps.

Step-by-Step Installation

Inlet Attachment Steps

Electrical and Nozzle Boot Setup

DC Wiring Safety and Requirements

DC Wiring DANGER and CAUTION Alerts

Emphasizes licensed electricians, grounding, and avoiding thin wires for DC power.

DC Wiring NOTICE and Fuse Needs

DC Wiring Preparation and Mobile Setup

Electrical Bonding for DC Pumps

Instructions for bonding pumps to vehicle frames or ground rods.

DC Wiring Connection Steps

Mobile Tank to Vehicle Electrical Connection

Guides connecting DC pumps to vehicle electrical systems, including fuse installation.

Non-Vehicle DC Wiring and Ground Systems

Stationary Tank Wiring Guide

Negative and Positive Ground Systems

Wiring diagrams and explanations for common and uncommon ground systems.

115V AC Wiring Safety and Specifications

AC Wiring DANGER and WARNING Notes

Highlights dedicated circuits, wire size, grounding, and explosion-proof integrity.

AC Wiring CAUTION and Wire Gauge Selection

115V AC Wiring Procedure

AC Wiring Connection Steps

Operation and Security Procedures

DANGER: Static Electricity During Operation

Warns about static buildup when filling and the risk of explosion.

Step-by-Step Pump Operation

Comprehensive Troubleshooting Guide

Diagnosing Pump Performance Issues

Addresses problems like failure to prime, low capacity, and slow operation.

Resolving Motor and Power Problems

Covers motor stalling, overheating, inoperability, and power supply issues.

Addressing Leakage and Operation Faults

Discusses fluid leakage causes and pump humming without operation.

Model Specifications and Data

Technical Data by Model

Details voltage, power, amps, RPM, cord length, duty cycle, and protection for each model.

Pump Performance Metrics

Lists GPM, bypass pressure, vacuum, suction lift, outlet head, and warranty.

Detailed H-Series Model Information

FR1200 Series Model Breakdown

Lists model numbers, nozzle, hose, meter, inlet tube, power, voltage, and outlet.

FR2400 Series Model Breakdown

FR4200 Series Model Breakdown

FR4400 Series Model Breakdown

FR600 Series Model Breakdown

SD1200 Series Model Breakdown

SD600 Series Model Breakdown

Pump Service and Repair Kits

BioDiesel, Rotor/Vane, and Seal Kits

Bypass, Nozzle Boot, and Inlet Kits
