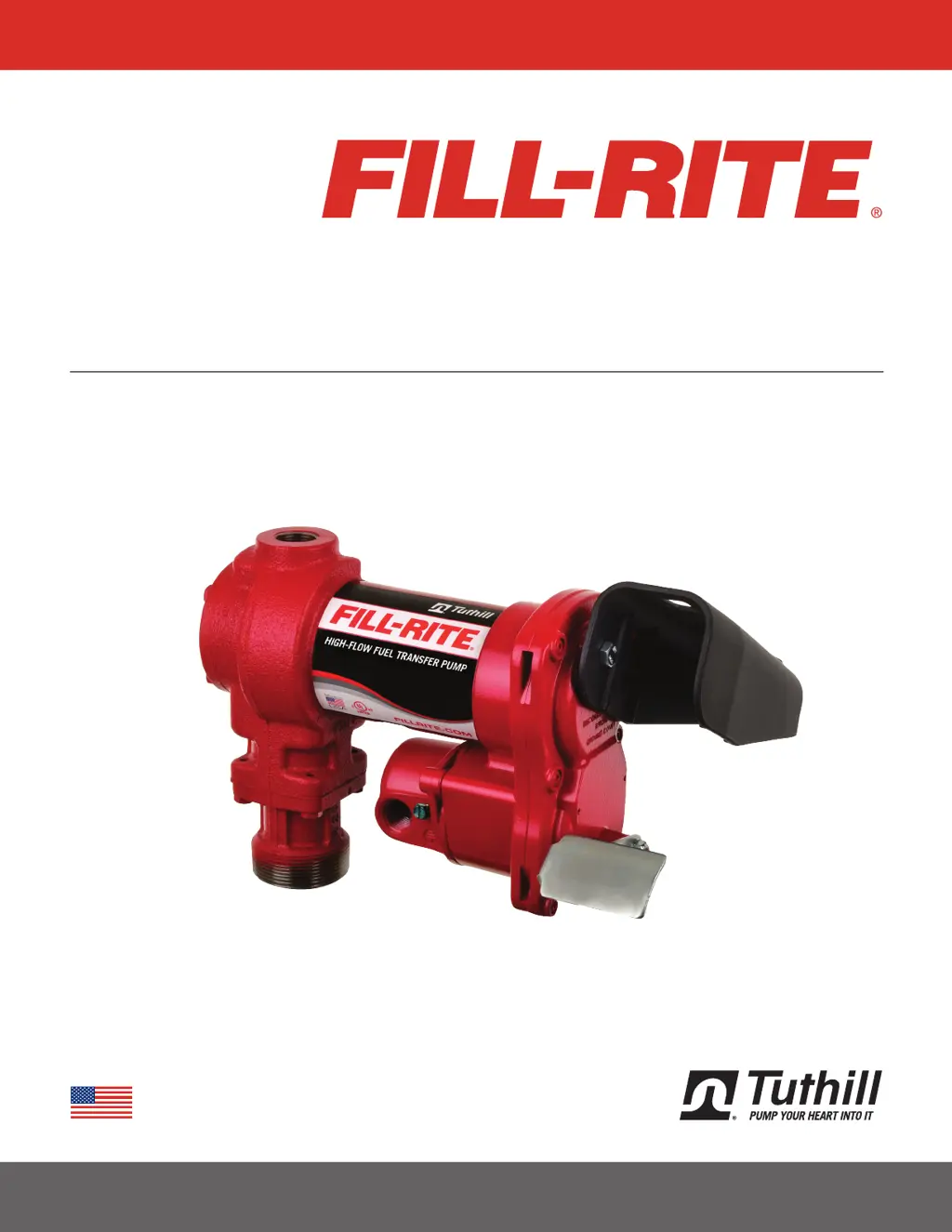

MADE IN

USA

H-SERIES FUEL TRANSFER PUMPS

FR1200, FR2400, FR4200, FR4400, FR600, SD1200, SD600

Installation and Operation Manual

Table of Contents

Questions and Answers:

K
Kelly BaileyAug 14, 2025
How to troubleshoot a Tuthill FILL-RITE FR600 that won't prime?
- J
  Jared MartinezAug 14, 2025
  If your Tuthill Water Pump won’t prime, several issues could be the cause. First, check the suction line for any leaks or restrictions. Also, inspect the bypass valve to ensure it moves freely and is free of debris. Examine the vanes and rotor slots for any nicks, burrs, or wear. Inspect the rotor and vanes for excessive wear or damage, and replace them if necessary. If you are using an automatic nozzle, remove it to prime the pump. Finally, check the filter and bypass valve for debris and remove the nozzle to test the flow with the pump on.
M
Mary SmithAug 17, 2025
What to do if Tuthill FILL-RITE FR600 has low capacity?
- E
  Eric SmithAug 17, 2025
  If your Tuthill Water Pump has low capacity, start by removing and cleaning the screen to eliminate excessive dirt. Check the suction line for leaks or restrictions. Inspect the bypass valve to ensure it moves freely and is free of debris. Check the pump outlet hose, nozzle, and filter for any blockages. Inspect the vanes and rotor slots for wear, and replace them if necessary. Check the rotor and vanes for excessive wear or damage, and replace if needed. Replace any damaged hoses or nozzles, preferably with UL-rated ones. Replace the filter if it's plugged. Finally, ensure the fluid level is adequate and fill the tank if it's low.
W
Wendy SmithAug 21, 2025
Why does the Tuthill Water Pump motor stall and blow fuses?
- S
  Samuel HansenAug 21, 2025
  If the motor of your Tuthill Water Pump stalls, the fuse blows, or the thermal protector trips repeatedly, start by inspecting the bypass valve to ensure it moves freely and is free of debris. Check the incoming supply line voltage to rule out low voltage. Examine the rotor and vanes for excessive wear or damage. Finally, clean any debris from the pump cavity.
J
jillloweryAug 25, 2025
How to fix fluid leakage in Tuthill FILL-RITE FR600 Water Pump?
- A
  alexanderwrightAug 26, 2025
  If you notice fluid leakage from your Tuthill Water Pump, check and replace all O-ring gaskets on the rotor cover, inlet flange, and bypass cap. Replace the shaft seal. Refer to the wetted parts list to the fluid manufacturer to ensure fluid compatibility. Also, ensure all fasteners are tightened.
C
Carrie SmithAug 29, 2025
Why is my Tuthill FILL-RITE FR600 motor overheating?
- N
  Nicholas ByrdAug 29, 2025
  If the motor of your Tuthill Water Pump overheats, it might be due to transferring high viscosity fluids, which should only be done for short periods (less than 30 minutes). Remove the inlet and clean the screen. Remove and clean any restricted suction pipes. For motor failure, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT).
S
Sarah HaydenSep 1, 2025
What causes a Tuthill Water Pump to run slowly?
- J
  Jaime HughesSep 1, 2025
  If your Tuthill Water Pump runs slowly, check the incoming supply line voltage to ensure it is correct. Inspect the vanes and rotor slots for nicks, burrs, and wear. Check for loose connections in the wiring. For a motor problem, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT).
H
Heather HickmanSep 5, 2025
Why is the motor of my Tuthill FILL-RITE FR600 Water Pump inoperable?
- J
  jeremy95Sep 5, 2025
  If the motor of your Tuthill Water Pump is inoperable, check the incoming supply line power. Use a multimeter to isolate any issues with the supply line power. For motor failure, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT). Clean and check the pump rotor, repairing as needed with KIT120RG if there is a locked rotor. Verify correct wire size with local, state, and national electric codes if there is incorrect or loose wiring.
A
Alicia WrightSep 9, 2025
What to do if Tuthill Water Pump hums but does not operate?
- I
  ibarrajenniferSep 9, 2025
  If your Tuthill Water Pump hums but will not operate, contact Tuthill Customer Service at 1-800-634-2695 (M-F, 8am-6pm EST/EDT) because it may be a motor failure. Also, remove any debris and replace the key if the rotor key is broken.

Tuthill FILL-RITE FR600 Specifications

General

Brand	Tuthill
Model	FILL-RITE FR600
Category	Water Pump
Language	English

Summary

Limited Warranty Policy

H-Series Fuel Transfer Pumps Features

About This Manual

Provides context and guidance for using the manual effectively.

Symbols and Definitions

Explains important symbols and terminology used throughout the manual.

Before You Begin

Outlines essential preliminary information and requirements before starting.

Safety Information

Installation

Installation Procedure

Step-by-step guide for mounting and connecting the pump.

DC Wiring Instructions

Details on connecting 12V DC and 24V DC power sources to the pump.

AC Wiring Instructions

Instructions for wiring the 115V AC models of the fuel transfer pumps.

Operation Instructions

Security

Information on securing the fuel transfer pump using a locking mechanism.

Troubleshooting

Troubleshooting Guide

Provides common issues and their solutions for pump malfunctions.

Specifications and Models

Model Information

Details on available models, their specifications, and configurations.

Performance Curves

Graphical representation of pump performance under various conditions.

Accessories

Accessory Details

Lists available accessories, their series, and compatibility.

Pump Service Kits

Identifies service kits for pump maintenance and repair.

Testing and Approvals

Covers safety testing, regulatory approvals, and motor tag information.
