Service Manual 73
Page 8 of 32

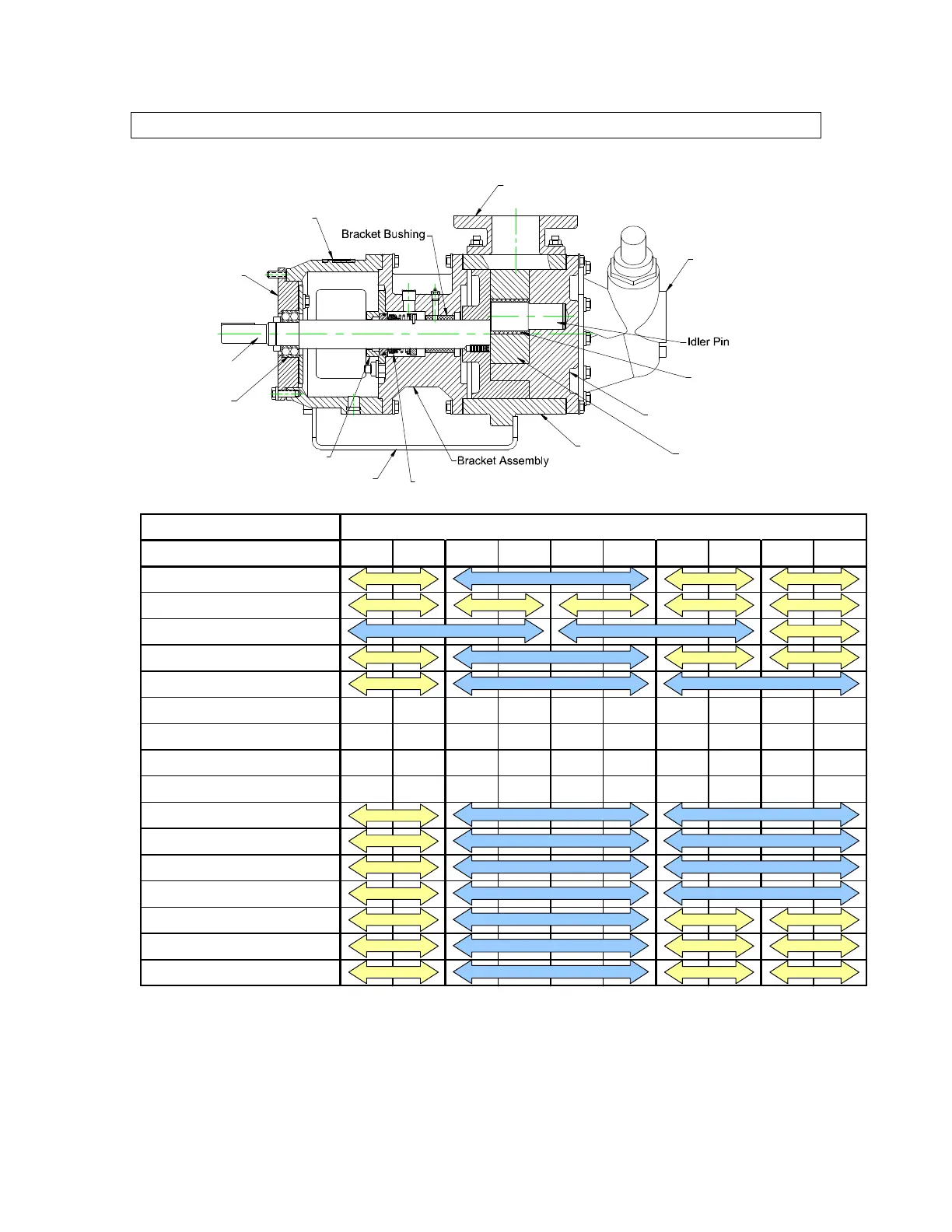

Parts Interchangeability
Idler Bushing
Cover
Idler
Rotor/Shaft Assembly
Ports
Bearing Carrier
Bearing Caps
Ball Bearing
Gland
Foot
Seal
Relief Valve Assembly
Housing
PART NAME GG015 GG030 GG050 GG070 GG080 GG090 GG120 GG130 GG200 GG210
RELIEF VALVE ASSEMBLY
HOUSING
PORTS
BRACKET / BUSHING ASSEMBLY
BRACKET BUSHING
COVER / PIN ASSEMBLY
IDLER / BUSHING ASSEMBLY
IDLER BUSHING
ROTOR / SHAFT ASSEMBLY
MECHANICAL SEAL OR PACKING
GLANDS
BEARING CARRIER
INNER BEARING CAP
OUTER BEARING CAP
BALL BEARING
FOOT (see note)
PUMP SIZE
Figure 2
Note: Pumps with 180° ports have a housing with a cast integral foot. These do not include a
separate foot.
