● PASSWORD
- Used to set password for download the
program via Ethernet. The password set for
the monitor must match with the password
for the download program.
● IP ADDRESS
- Used to set the IP address connected to a
Monitor.
● SUBNET MASK
- Used to set the SUBNET MASK connected to
a Monitor.
● GATEWAY
- Used to set the GATEWAY connected to a
Monitor.
● PORT NO
- Used to set the port number. Default port
number is 10262.
● REMOTE CONTROL
- Used to set the port for Remote Control.
(ETHERNET, RS-422)
● UMD CHARACTER COLOR
- Sets the character color of UMD. (WHITE,
RED, GREEN, BLUE, YELLOW, CYAN,
MAGENTA)
- This function only activates when D-UMD
TALLY TYPE is set DEFAULT, USER COLOR, BG.
COLOR, USER TALLY, USER BG modes.
● UMD BG. TRANS
-Used to set the transparency of the UMD
background.
- Available values are SCALE DOWN, OPAQUE,
50%, 90% and 100%.
- SCALE DOWN function reduces images and
areas of the UMD to avoid overlapping. (Only
activates when the UMD is overapped with
images.)
LVM-327W
SDI A
[5] GPI

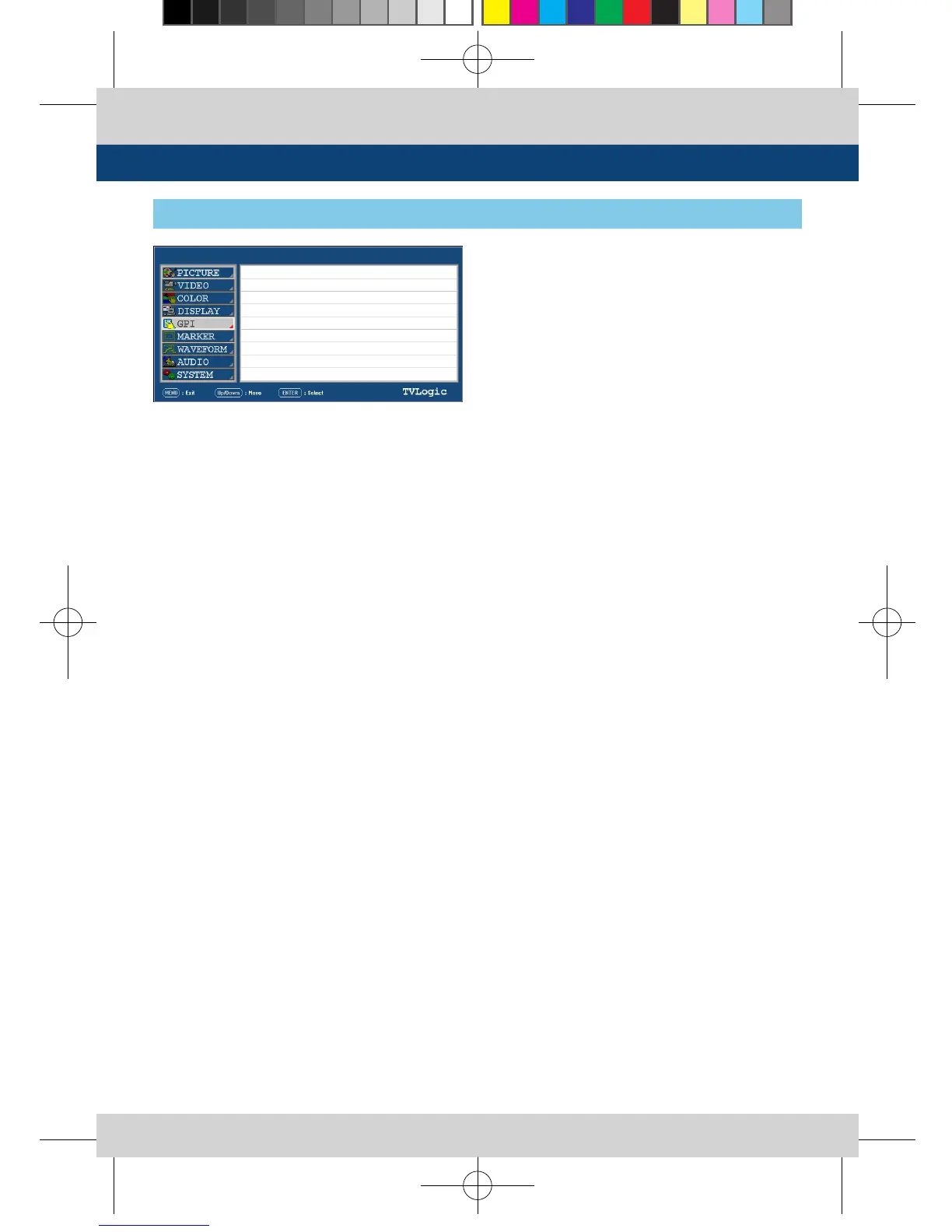

5. Menu Operations
PAGE III >> PAGE I
PASSWORD
IP ADDRESS
SUBNET MASK
GATEWAY
PORT NO
REMOTE CONTROL
UMD CHARACTER COLOR
UMD BG. TRANS
192.168.123. 0
255.255.128. 0
0. 0. 0. 0
10262
ETHERNET
GREEN
50%
1080/60i
