Multi Format LCD Monitor 19
HD DISPLAY MODE
- Used to control the display ratio of HD mode.
Available values are 16:9, 1.85:1 and 2.35:1.
TIME CODE ENABLE
- Used to display the Time Code.
- Available modes are VITC, LTC and OFF.
ORBITER CIRCUIT
- Used to prevent image sticking eect on LCD
Panels when signal input is used. The user
may decide number of pixels to move.
- The number of pixels should be within range
between MIN(0) and MAX(100). Moving
speed is 10 minutes per one pixel line.
CLOSED CAPTION
- Used to select Closed Caption.
- Available modes are OFF, 708, 608(LINE21),
608(ANC) OP47.
* 608 : CEA-608-B, 708 : CEA-708-C standard
display only
608 CAPTION SELECT
- Used to select the Closed Caption 608
channel.
- Supports CC1~CC4.
708 SERVICE SELECT
- Used to select the Closed Caption 708
service.
- Supports SERVICE 1~SERVICE 6.
TELETEXT PAGE
- Used to set the OP47/42 page.
- Available modes are from 801 to 8FF.
SCREEN SELECT
- Used to control the individual screens(1 or 2)
or full screen (both) in PBP Mode.
- Screen selection order: ALL SCREEN ->
SCREEN 1 -> SCREEN 2
- For easy screen selection, use [F1] button in
the front panel.
BORDER COLOR
- Used to select the border line color between
the screens in PBP Mode.
- Available values are WHITE, GRAY, BLACK,
RED, GREEN and BLUE.
BORDER THICKNESS
- Used to select the thickness of the border
lines the screens in PBP Mode.
- Set value range in pixel 0 ~ 7.

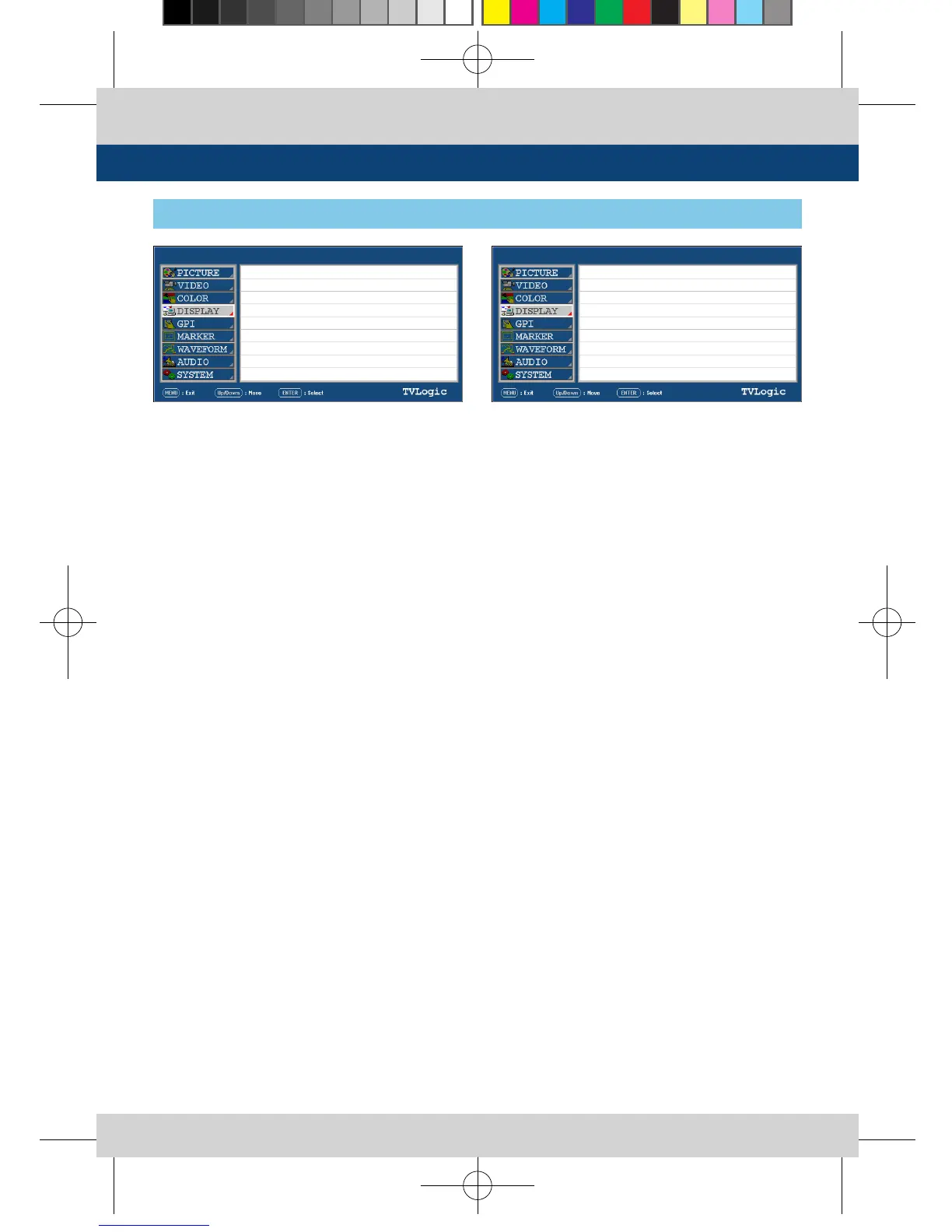

[4] DISPLAY
5. Menu Operations
LVM-327W LVM-327W
SDI A
SDI A
PAGE I >> PAGE II
HD DIPLAY MODE
TIME CODE ENABLE
ORBITER CIRCUIT
CLOSED CAPTION
608 CAPTION SELECT
708 SERVICE SELECT
TELETEXT PAGE
PAGE II >> PAGE I
SCREEN SELECT
BORDER COLOR
BORDER THICKNESS
16:9
VIYV
OFF
OFF
CC 1
SERVICE 1
801
ALL SCREEN
WHITE
1
1080/60i 1080/60i
LVM-245W_327W_V2.0_EN.indd 19 2014-04-10 오후 2:01:55
