SDI A
● USER CONFIG SET
- Used to save and apply three kinds of user
conguration.
- Available modes are USER1, USER2 and
USER3.
- Eective items for each USER1, USER2 and
USER3 settings are the [MARKER] menu of
MARKER, CENTER MARKER, SAFETY AREA,
MARKER MAT and MARKER COLOR and the
[PICTURE] menu of , BRIGHT, CONTRAST,
CHROMA, PHASE, APERTURE and NOISE
REDUCTION.
● LOCK NUMBER
- Factory uses only.
● LOCK ENABLE
- Factory uses only.
● OSD DISPLAY
- Controls the OSD display time.
- Available values are 4~20SEC, CONTINUE,
3 SEC, MAIN MENU 20 SEC, MAIN MENU
CONTINUE and MAIN MENU 3 SEC.
* MAIN MENU 20 SEC : The main OSD menu
will be disappeared after 20 seconds and the
other information windows are disappeared
* MAIN MENU CONTINUE : The main OSD
menu will not be disappeared and the other
information windows are disappeared after 2
seconds.
* MAIN MENU 3 SEC : The main OSD menu will
be disappeared after 3 seconds and the
other information windows are disappeared
after 2 seconds.
● OSD POSITION
- Controls the OSD position.
- Available positions are CENTER, Right-Top
(R-T), Right-Bottom(R-B), Left-Bottom(L-B)
and Left-Top(L-T).
● INTERNAL PATTERN
- This item generates internal white pattern.
- The white level select between 0% and 100%
(Per 5% increase or decrease)
● SET DEFAULT
- User can use SET DEFAULT menu to initialize
to factory setting.
- Set default items are BRIGHT, CONTRAST,
CHROMA, PHASE and APERTURE and NOISE
REDUCTION set 0.
● SIGNAL LOCK
- Signal Lock selects the video output by using
input signal synchronization.
*
ENABLE : This function outputs the video
using input signal synchronization.
*
DISABLE : This function outputs the video
using self-created synchronization.
- When the input signal or input format are
changed, the monitor will response quickly.

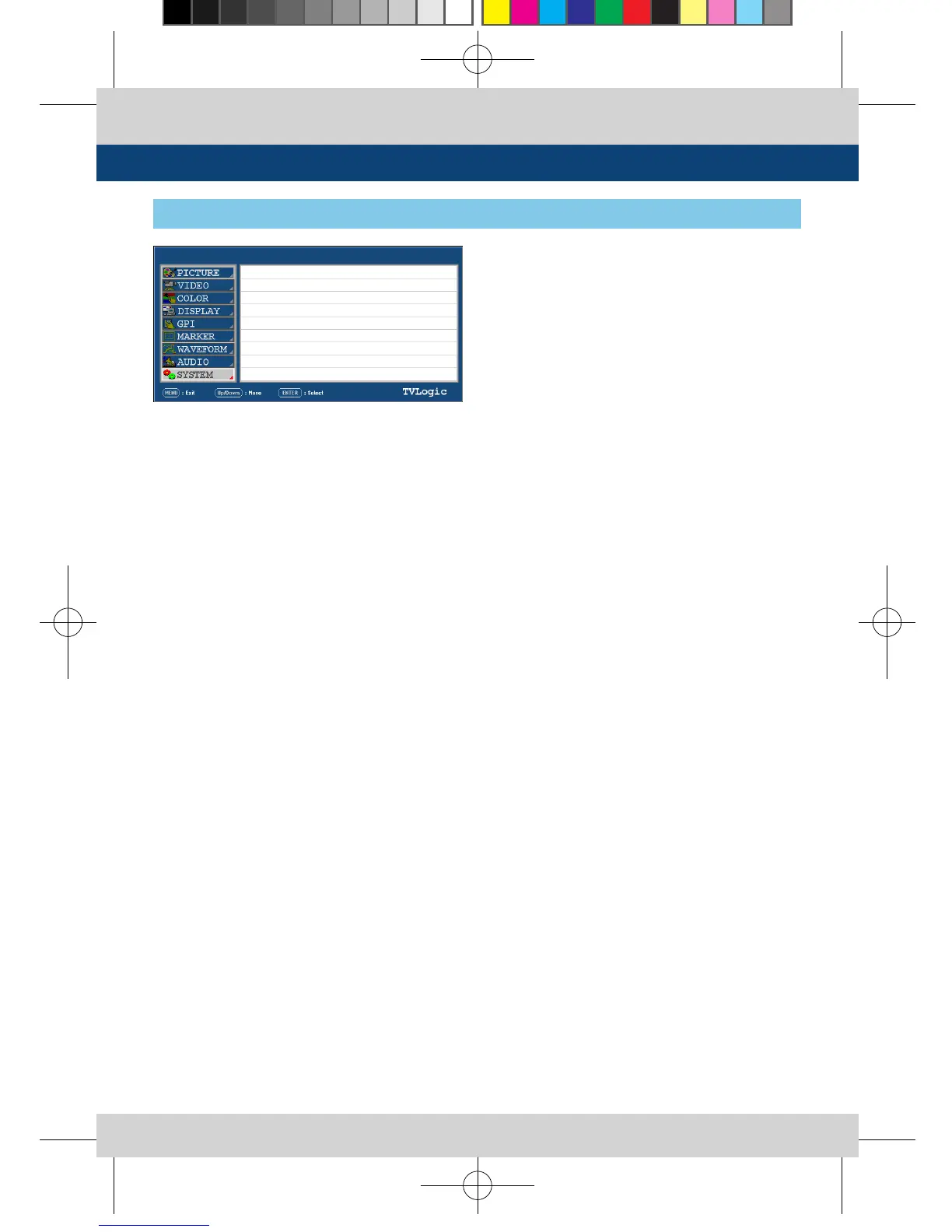

[9] SYSTEM
5. Menu Operations
PAGE I >> PAGE II
USER CONFIG SET
LOCK NUMBER
LOCK ENABLE
OSD DISPLAY
OSD POSITION
INTERNAL PATTERN
SET DEFAULT
SIGNAL LOCK
USER 1
12345678
--------
CONTINUE
L-T
OFF
ENABLE
1080/60i
