TV Logic LVM-245W User Manual

28 Multi Format LCD Monitor
[7] WAVEFORM

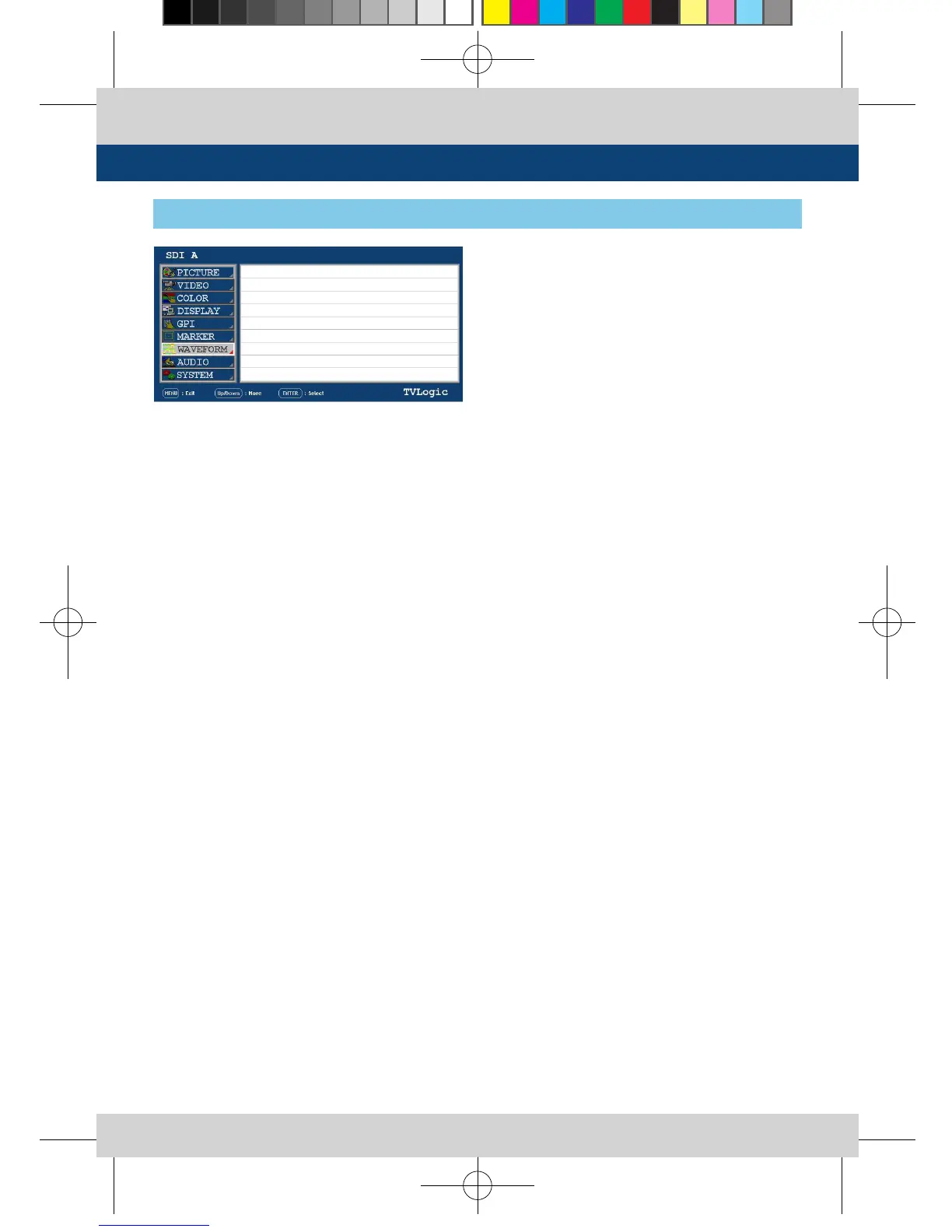

5. Menu Operations
● RANGE ERROR
- Used to display the values of Y MAX, Y MIN, C
MAX, C MIN, Y PICTURE BLINK and C PICTURE
BLINK on the screen.
- Selected values in Y MAX, Y MIN, C MAX, C
MIN are indicated in WAVEFORM/VECTOR or
Y/Cb/Cr.
- If Y PICTURE BLINK or C PICTURE BLINK is
enabled, the section of image that exceeds
the selected values of Y MAX, Y MIN, C MAX
and C MIN blinks.
* In th case of RGB input, Range Error is not
supported
● Y MAX
- Used to set the maximum luminance level.
- Available values are between 1 ~ 1020.
- Exceeded selection displays on the top
portion of the Waveform or display.
● Y MIN
- Used to set the minimum luminance level.
- Available values are between 1~ 1020.
- Exceeded selection displays on the top
portion of the Waveform or display.
● C MAX
- Used to set the maximum chroma level.
- Available values are between 1 ~ 1020.
- Exceeded selection displays on the top
portion of the Waveform or display.
● C MIN
- Used to set the minimum chroma level.
- Available values are between 1 ~ 1020.
- Exceeded selection displays on the top
portion of the Waveform or display.
PAGE II >> PAGE I
RANGE EROR
Y MAX
Y MIN
C MAX
C MIN
Y PICTURE BLINK
C PICTURE BLINK
OFF
MAX
MIN
MAX
MIN
OFF
OFF
● Y PICTURE BLINK
- Used to set selections of image that exceeds
Y MAX and Y MIN to blink.
● C PICTURE BLINK
- Used to set selections of image that exceeds
C MAX and C MIN to blink.
LVM-327W
1080/60i
LVM-245W_327W_V2.0_EN.indd 28 2014-04-10 오후 2:01:56
