TVLogic LUM-181H User Manual

05 MENU OPERATIONS
29
4K /UHD HDR Emulation LCD Monitor
● Waveform Trans. (Not Supported)
- Controls the transparency level of the
Waveform/Vectorscope.
- Available values are OPAQUE and TRANS.
* If the opon is set to OPAQUE, the main
OSD will overlap with the waveform/vector.
However, it will automacally display it as
transparent and goes back to opaque if the
main OSD disappears.
● Waveform Color
- Used to select a color of Waveform/
Vectorscope
- Available modes are [Green] and [White].
● Line Waveform
- This item is ulized to display the enre data
or one line data on the Waveform.
● Line Select Position (*Will be Supported)
- Used to select specic Horizontal Line for
Waveform/Vectorscope.
- It is available when Line Waveform is
acvated.

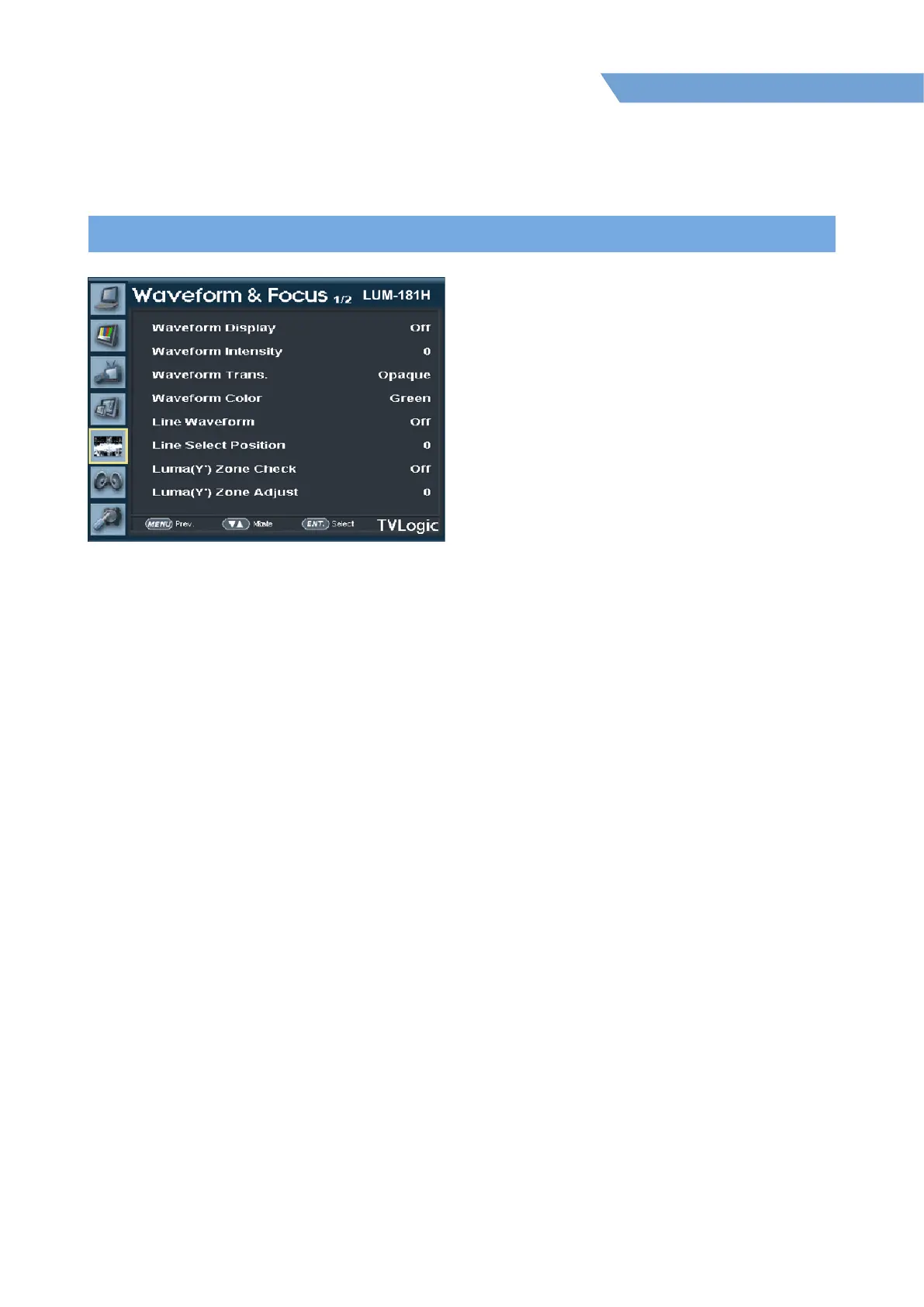

[5] Waveform & Focus
● Waveform Display
- This funcon sets the Waveform and
Vectorscope.
- Acvates in the order : [O], [Waveform],
[Vectorscope].
* [Waveform] Displays the shape and form of
luminance level of a signal.
* [Vectorscope] : Displays the color components
‘B-Y’ and ‘R-Y’of the input signals onto the
X-Y axis. Two dierent types of Vetorscopes
are displayed according to SD, HD or UHD/4K
input signals. 100% and 75% scales are
indicated on the Vetorscope
● Waveform Intensity
- Controls the brightness of the Waveform/
Vectorscope display.
- Available values are between [1] ~ [63].
The higher the number the brighter the
waveform will be.
