TVLogic LUM-181H User Manual

05 MENU OPERATIONS
33
4K /UHD HDR Emulation LCD Monitor

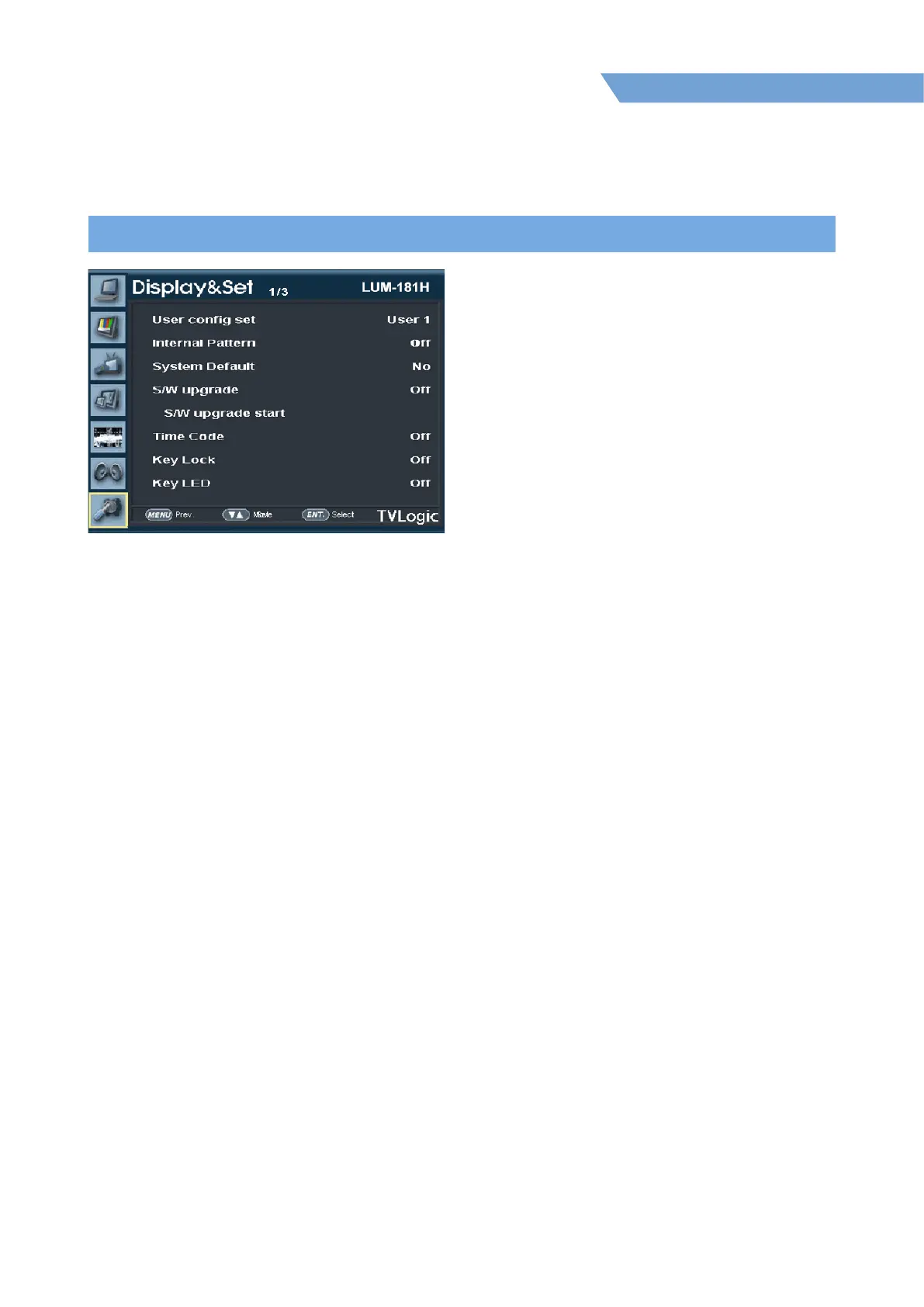

[7] Display & Set
● User cong set
- Used to save and apply in three kinds of user
conguraons.
- Available modes are [USER1], [USER2] and
[USER3].
● Internal Pattern
- Generates White Paern internally.
- Selectable range is from [0%] to [100%] with
5% increment.
● System Default
- Used to inialize OSD values to factory
default.
● S/W Upgrade
- Used to upgrade the rmware using the USB
memory (Thumb drive).
- Select the S/W Upgrade Start menu to start
the USB memory search.
- When the USB memory is detected, the S/W
Upgrade Start menu becomes acvated.
● S/W Upgrade Start
- Select the S/W Upgrade Start menu to start
the rmware upgrade.
- Do not turn o the monitor while the upgrade
is conducng.
● Time Code
- Used to set the Time Code.
- Available modes are [OFF], [VITC] and [LTC].
● Key Lock
- Used to lock all buons except Power, Input
select and Menu buons.
● Key LED
- Used to control the Key Lamp on the front
of the monitor.
- If the buon with LED is pressed with the
KEY LED O, LED comes on but turns o aer
5 seconds later.
