05 MENU OPERATIONS
21
4K /UHD HDR Emulation LCD Monitor

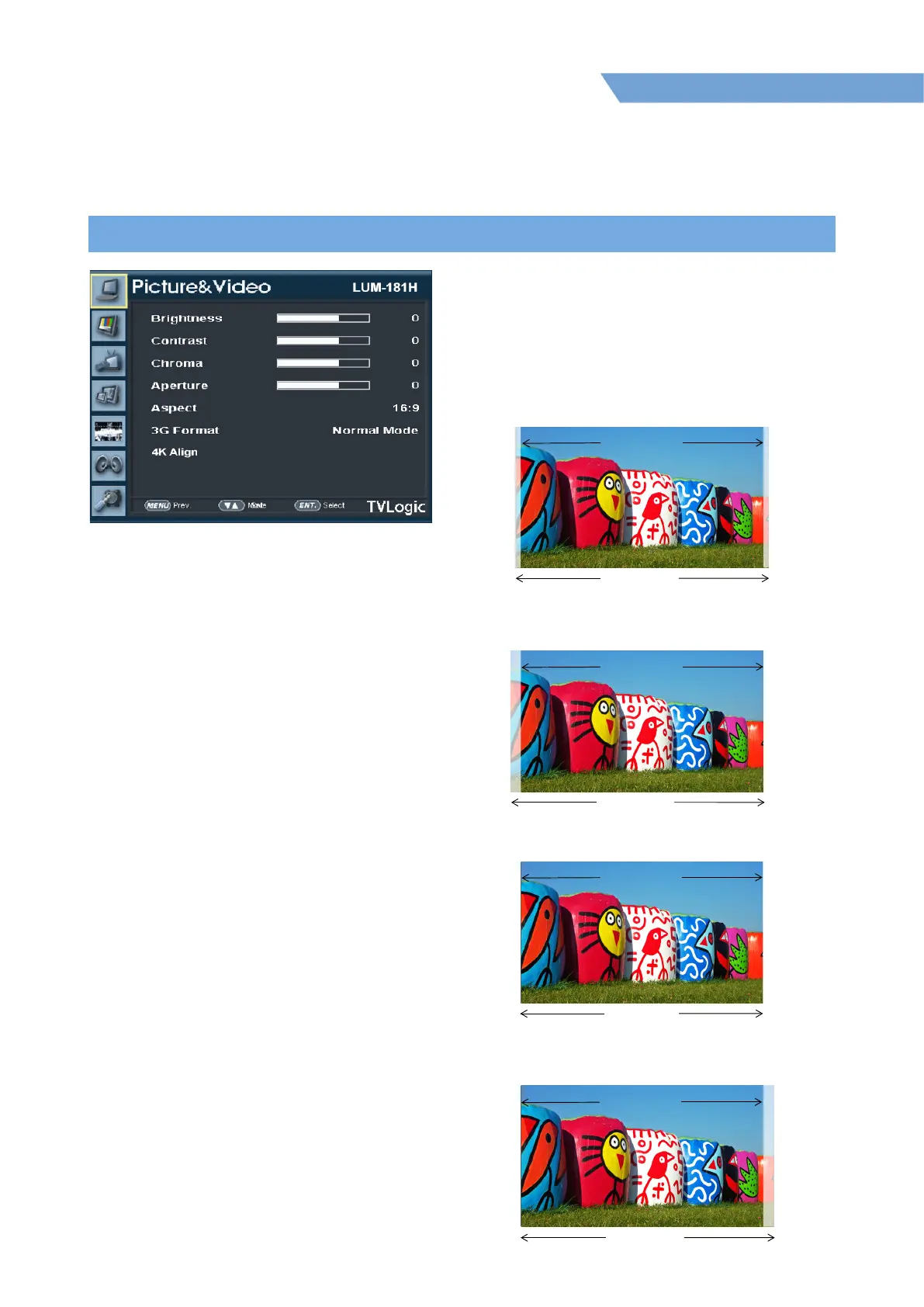

[1] Picture & Video
● 4K Align
- When the 4K 4096 x 2160(17:9) signal
is input to the LUM-181H or LUM-242H
whose resolution of the LCD panel is
3840 x 2160(16:0), the following four
modes can be selected.
[Right]: The input image is displayed as pixel to pixel.
The right end of the input image is displayed in full,
and the vertical 256 lines on the left are hidden.
[Scale]: The input video is scaled to the 16:9 ratio
and displayed in full on the screen.
3840 x 2160
3840 x 2160
(Image)
[Left]: The input image is displayed as pixel to pixel.
The left end of the input image is displayed in full,
and the vertical 256 lines on the right are hidden.
[Center]: The input image is displayed as pixel to pixel,
and the vertical 128 lines on the left end and right
end are hidden.
4096 x 2160
(Image)
3840 x 2160
4096 x 2160
(Image)
3840 x 2160
4096 x 2160
(Image)
3840 x 2160
● Brightness
- Used to adjust the overall brightness
(= Oset) level, which mainly aects
the black level. The adjustment range is
-100(MIN) to 100(MAX).
● Contrast
- Used to set the contrast(Gain) level from
[-100] to [100].
● Chroma
- Used to set the saturaon level from [-50]
to [50].
● Aperture
- Used to set the sharpness level from [0]
to [24].
● Aspect
- Used to change the various display rao.
- Available aspect modes are [FULL], [4:3],
[2.35:1], [1.85:1], [15:9], [16:9], [16:10],
[AUTO].
- Acvated only in Single 3G Mode.
● 3G Format
- Automacally detects when Payload signal
appears in Normal Mode.
- Selects input format for SDI 3G A/B support
[NORMAL MODE]
[A 444 10BIT_YCbCr]
[A 444 10BIT_RGB]
[A 444 12BIT_YCbCr]
[A 444 12BIT_RGB]
[A 422 12BIT_YCbCr]
[B 444 10/12BIT_YCbCr]
[B 444 10/12BIT_RGB]
[B 422 12BIT_YCbCr]
[B 422 10BIT_YCbCr, 60P]
