TVLogic LUM-181H User Manual

05 MENU OPERATIONS
34
4K /UHD HDR Emulation LCD Monitor

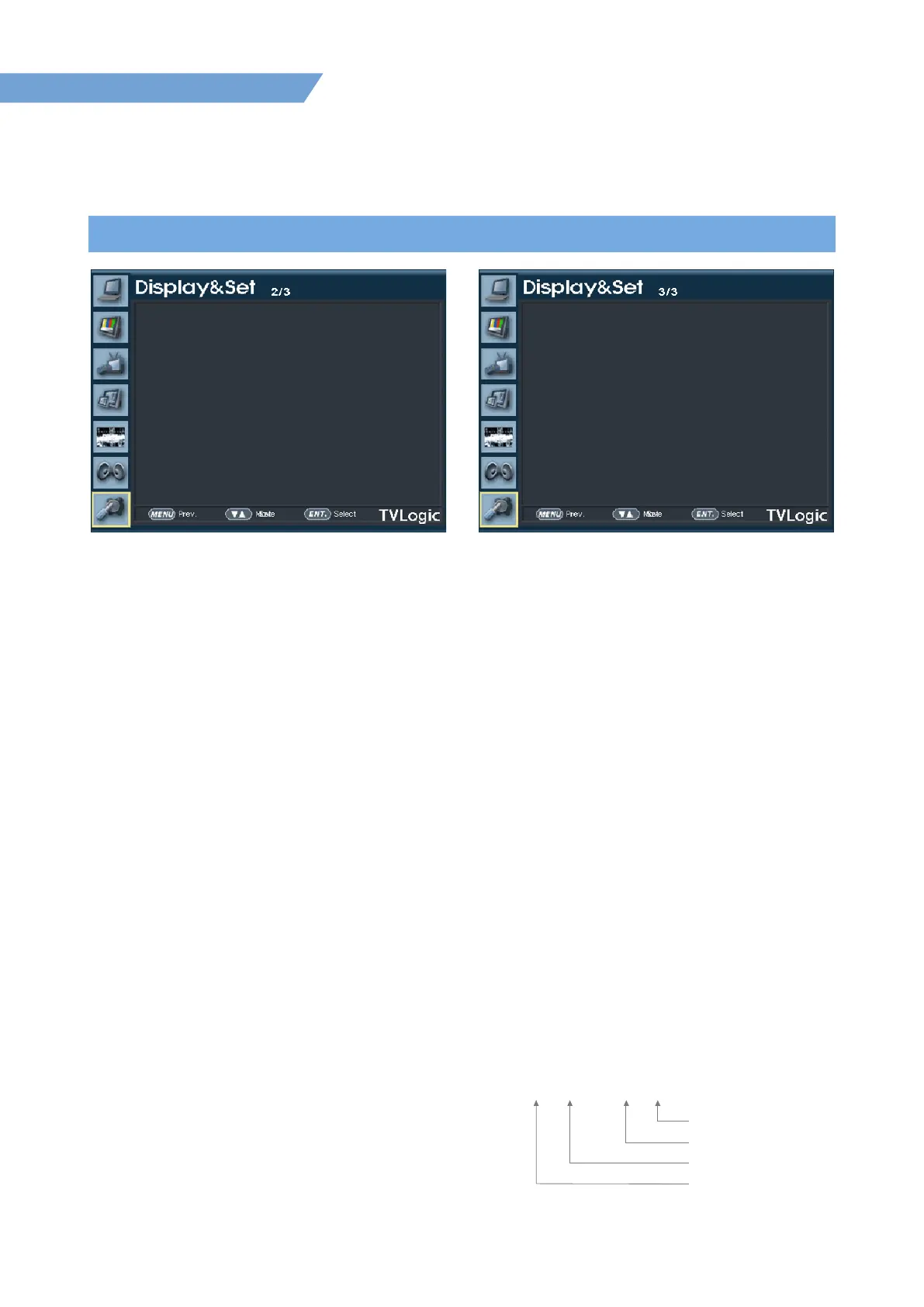

[7] Display & Set
KEYPAD VERSION
CPU VERSION
FPGA VERSION
GPU VERSION
[F1] Key Mapping
[F2] Key Mapping
[F3] Key Mapping
[F4] Key Mapping
[F5] Key Mapping
Serial Number :
Board Version
Marker
Waveform
Video Range
Scan
Aspect
2003 0077 03 2.04 9
LUM-181H
Closed Caption
Decode Channel(608)
Caption Service(708)
OSD position
Transfer Matrix
Gamut Control
Off
CC1
Service 1
Center
Default
Surface
LUM-181H
● Closed Caption
- This item controls the Closed Capon.
- Available modes are [OFF], [708], [608(LINE21)]
and [608(ANC)].
● Decode Channel(608)
- Sets the Channel of Closed Capon 608
- Available modes are [CC1] ~ [CC4].
● Caption Service(708)
- Sets the service of Closed Capon 708.
- Available modes are [Service 1] ~ [Service 6].
● OSD Position
- This item controls the OSD posion.
- Available values are [Center], [Top-Right],
[Boom-Right], [Boom-Le] and [Top-Le].
● Transfer Matrix
- Used to select the Signal Transmission Matrix.
- Available opons are [Default], [Rec709] and
[Rec2020].
* Default : If the Color Gamut is selected as
BT.2020, it is applied as Rec2020 Matrix.
If the Color Gamut is selected other than
BT.2020, it is applied as Rec709 Matrix.
* Rec709 and Rec2020 are applied to the
corresponding Matrix regardless of the color
gamut.
● Gamut Control (*Will be supported)
- Used to eciently map the dierence
between the Panel and the Standard color
gamut.
*Surface : Used to map the colors outside
of the panel’s color gamut onto the internal
color.
● [F1] Key Mapping
- User can select the funcon for the F1 buon.
● [F2] Key Mapping
- User can select the funcon for the F2 buon.
● [F3] Key Mapping
- User can select the funcon for the F3 buon.
● [F4] Key Mapping
- User can select the funcon for the F4 buon.
● [F5] Key Mapping
- User can select the funcon for the F5 buon.
The following functions can be assigned.
[Blue Only], [H/V Delay], [White Point],
[Audio Level Meter], [Time Code],
[Luma(Y') Zone], [Focus Assist], [Marker],
[DR Mode], [Standard], [Disp Luminance],
[EOTF], [Video Range], [Waveform],
[Scan], [Aspect], [Native Mode],
[Gumar Warning], [Shadow Mode], [4K Align].
● Serial Number
- Used to display serial number of the monitor.
● Board Version
- Displays the current Program Version of the
monitor.
2003 0077 03 2.04 9
