5. Menu Operations

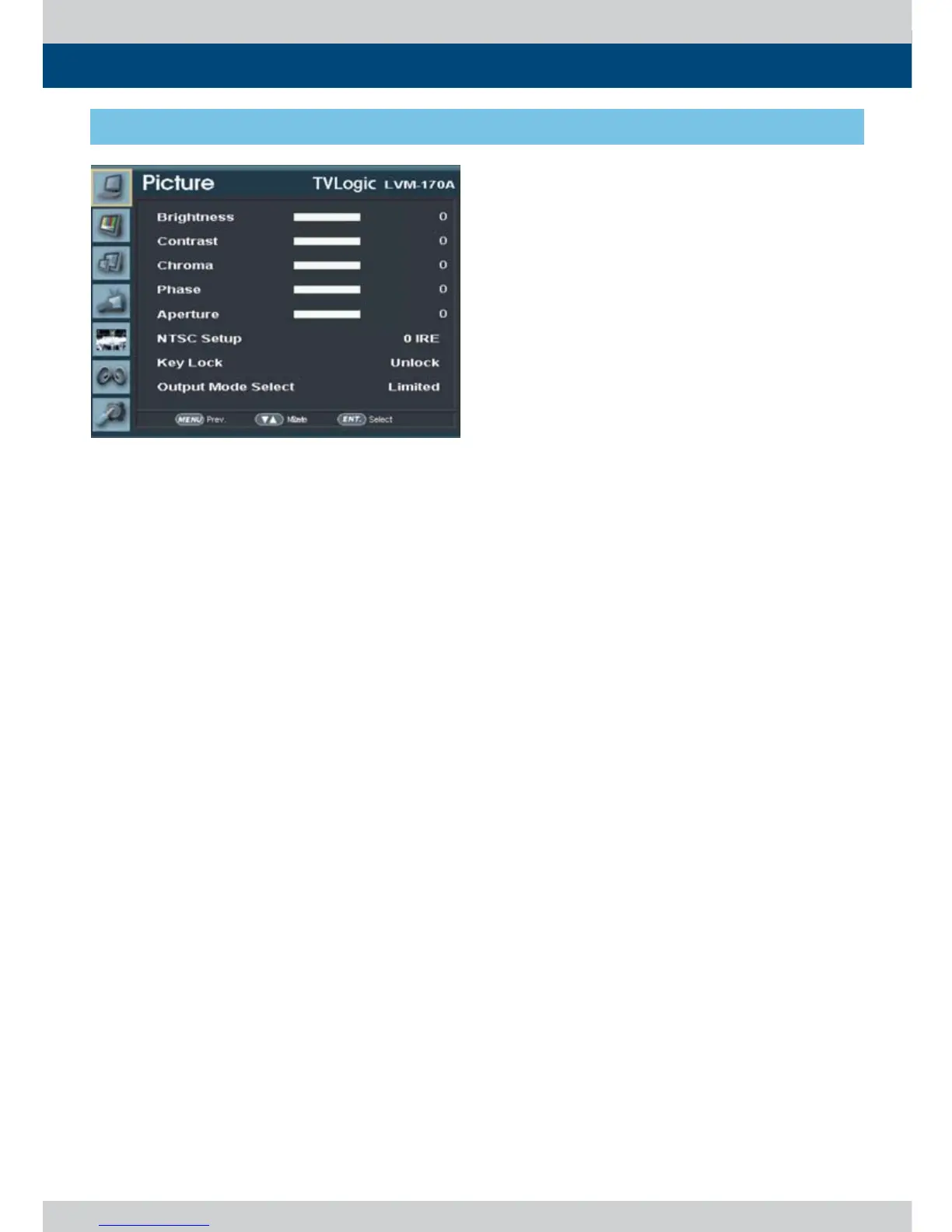

[1] PICTURE (LVM-170A)
● Brightness
- The item controls the degree of brightness
between -100~100.
#Brightness can be adjusted by using a
control knob on the front of the monitor.
● Contrast
- The item controls contrast ratio between
-100~100.
#Contrast ratio can be adjusted by using a
control knob on the front of the monitor.
● Chroma
- The item controls saturation between -50~50.
#Chroma can be adjusted by using a control
knob on the front of the monitor.
● Phase
- The item controls phase value (Hue) between
-180~180.
#If functions only with analog video input
signal.
● Aperture
- The item controls the picture sharpness
between 0~24.
#Sharpness can be adjusted by using a control
knob on the front of the monitor.
● NTSC Setup
- The item sets NTSC IRE value for 0(Zero setup)
or 7.5 IRE.
- It is activated in COMPOSITE 1/2/3 or S-VIDEO
only NTSC signal is input.
● Key Lock
- The item locks all buttons except for power,
source change and menu button in front of
the monitor.
● Output Mode Select
- Used to select the range of luminance
between FULL(255) and NORMAL(235).
