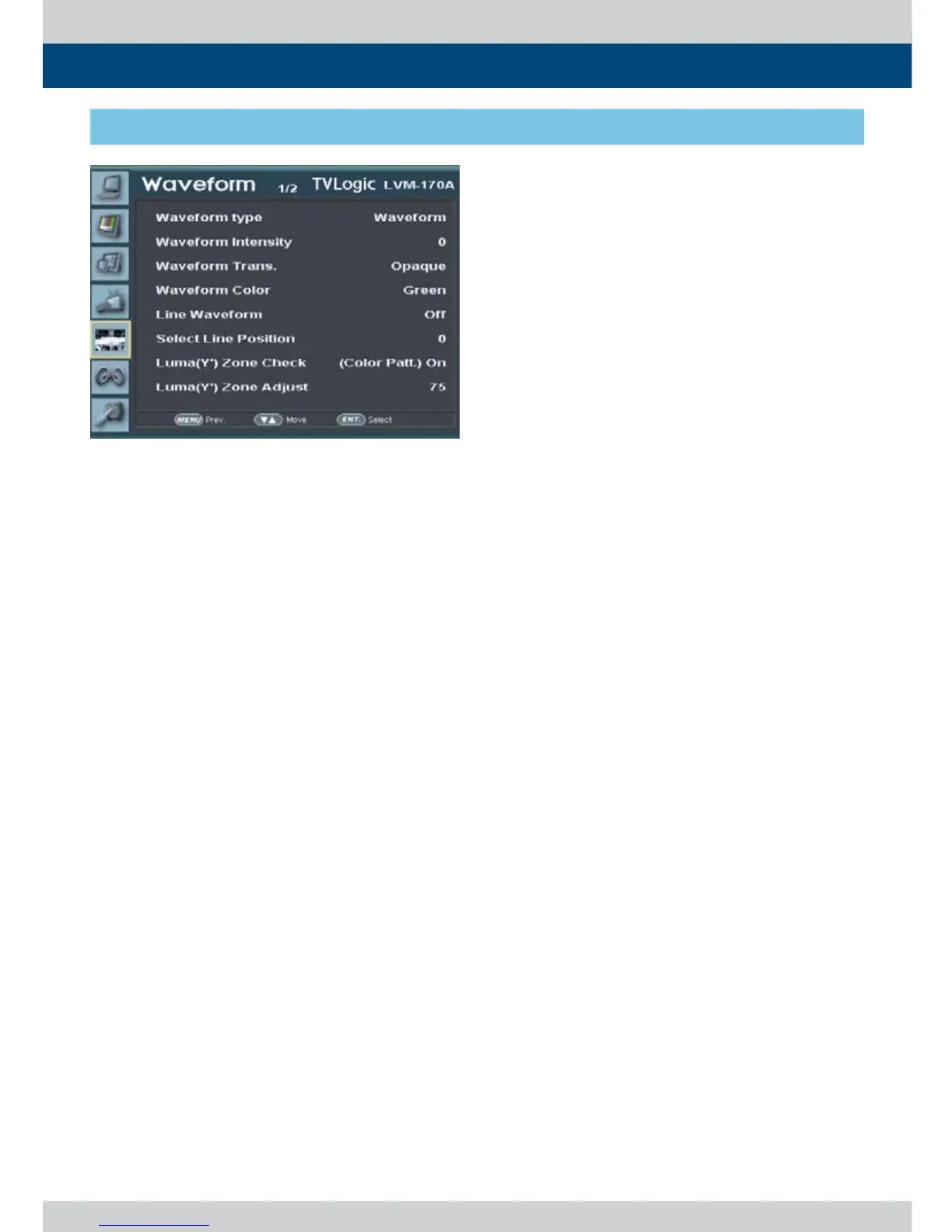

[5] WAVEFORM
5. Menu Operations
● Waveform type
- The item sets Waveform and Vectorscope.
- The operation order is
LVM-170A : O , Waveform, Vectorscope,
Waveform YCbCr, Waveform RGB,
Wave+Vector, Waveform Wide
LVM-171A : O , Waveform, Vectorscope,
Wave+Vector, Waveform Wide
*
Waveform : Displays the shape and form of
luminance level of a signal.
*
Vectorscope : Displays color components of
the input signals.
It is divided into 2 kinds depending on HD
input and SD input. 100% and 75% graphics
show in a picture.
* Waveform YCbCr : Displays the Cb, Cr
components of the input signal into
waveform. (LVM-170A only)
* Waveform RGB : Displays the RGB
components of the input signal into
waveform. (LVM-170A only)
* In the case of YCbCr input, the waveform is
displayed as RGB.
*
Wave+Vector : Displays Waveform(Y) and
VectorScope at the same time.
* Waveform Wide : Displays stretched
luminance components of the input signal
to  t width of the screen on the bottom of
the monitor
● Waveform Intensity
- The item controls the brightness of the
WAVEFORM/VECTOR display.
- Available values are between 1 ~ 63. The
higher the number the brighter the
waveform will be.
● Waveform Trans.
- The item controls the transparency level of
the WAVEFORM/VECTOR.
- Available values are OPAQUE and TRANS.
*
If the option is set to OPAQUE, the main
OSD will overlap with the waveform/vector.
However, it will automatically display it
as transparent and goes back to opaque if
the main OSD disappears.
● Waveform Color
- Used to select the color of the waveform.
- Available colors are Green and White.
● Line Waveform
- Selects if the monitor shows the whole data
from the picture or the data from a certain
line of the picture when WAVEFORM/
VECTOR functions.
