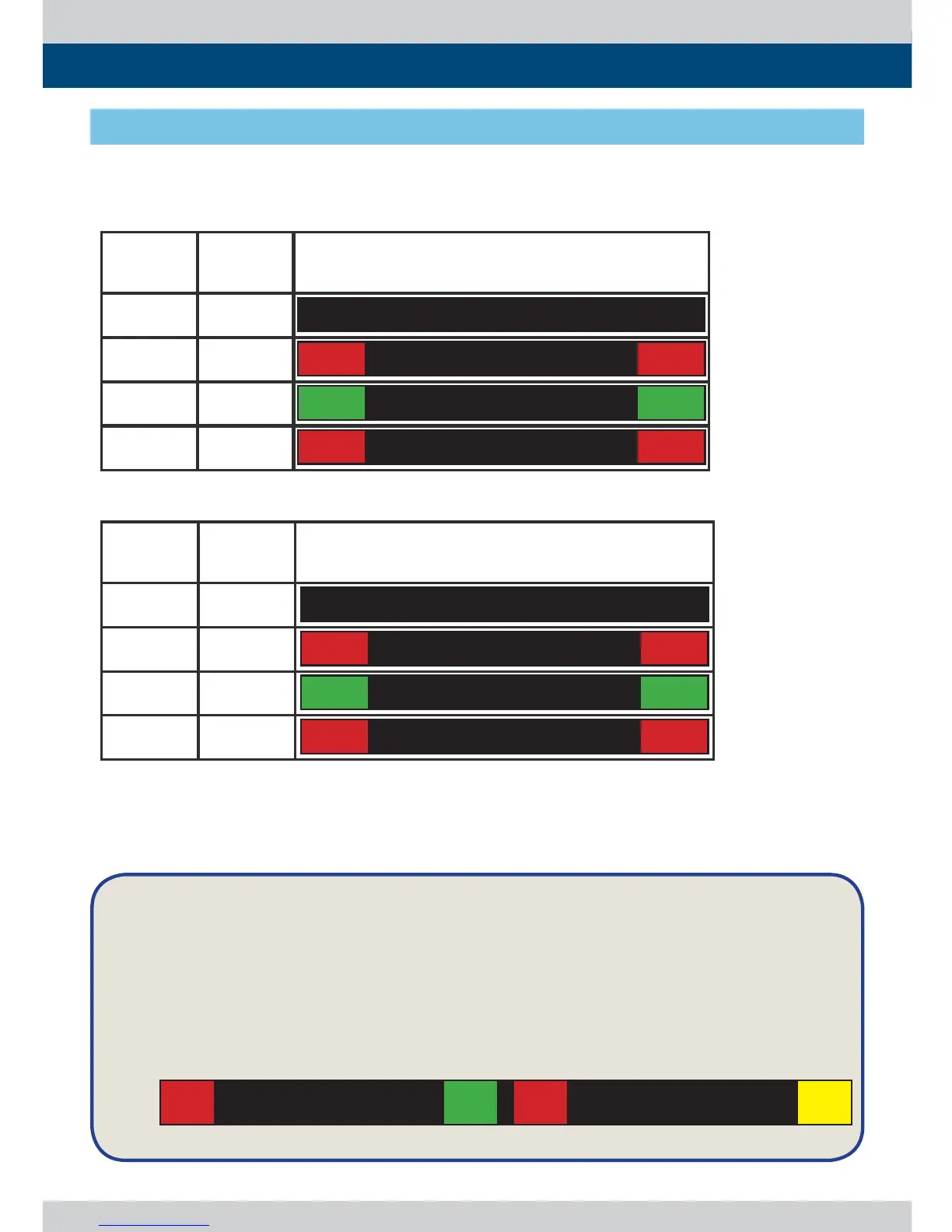

Multi Format LCD Monitor 25

[4] GPI / UMD

5. Menu Operations

Bit 1

(Tally2)

Bit 1

(Tally1)

Operation

00

CHANNEL1

01

CHANNEL1

10

CHANNEL1

11

CHANNEL1

Bit 1

(Tally4)

Bit 1

(Tally3)

Operation

00

CHANNEL1

01

CHANNEL1

10

CHANNEL1

11

CHANNEL1

The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE

and TALLY1 ~ TALLY4 COLOR.

D-UMD TALLY TYPE USER COLOR

TALLY1 COLOR RED

TALLY2 COLOR GREEN

TALLY3 COLOR RED

TALLY4 COLOR YELLOW

CHANNEL1 CHANNEL1

● Tally Type - Default

- S-8C(Single 8 Character) & S-16C(Single 16 Character)

● D-UMD TALLY TPYE – USER COLOR

- Color selections between TALLY1 ~ TALLY4.

- D-8C(Dual 8 Character)

TVLogic LVM-171A User Manual
