18 Multi Format LCD Monitor
5. Menu Operations

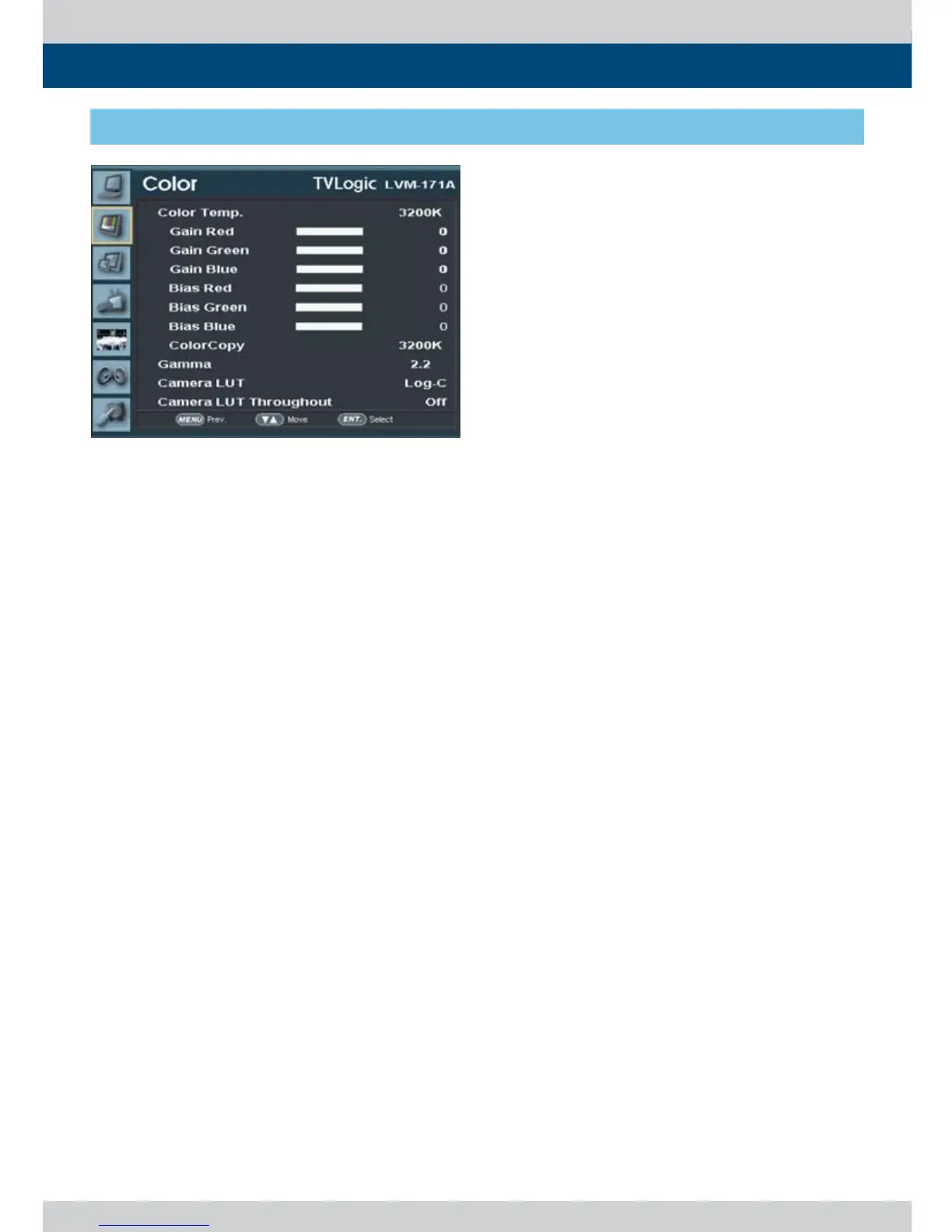

[2] COLOR (LVM-171A)
● Color Temp
- The item controls color temperature and
allows instant access to preset color
temperature settings of 3200K, 5600K, 6500K,
9300K and USER 1/2/3.
- Only in User1/2/3, RGB Gain, Bias(=O set)
and Color copy are activated.
● Gain Red/Green/Blue
- The item controls red/green/blue gain value
between -256~255.
#Only in User1/2/3, it is activated.
● Bias Red/Green/Blue
- The item controls red/green/blue bias(O set,
Black Level) value between -100~100.
#Only in User1/2/3, it is activated.
● Color Copy
- The item is used to copy pre-stored color
temperature settings into a USER1/2/3 mode.
- In USER mode, nd and select the color
temperature to be used as a starting point of
custom color temperature.
#Only in USER1/2/3, it is activated.
● Gamma
- Used to set the Gamma value.
- Settable values are [2.2] and [2.4]
● Camera LUT
- Used to change the output Log video from
the camera to the Rec 709 standard.
- The mode will be changed as the following
sequence. [LOG-C]-[C-LOG]-[S-LOG1]-
[S-LOG2]-[S-LOG3]-[RED Gamma3]-
[RED Gamma4]
* Press the Function Button to activate/
deactivate the Gamma LUT function.
● Camera LUT Throughout
- Used to select the SDI output to what was
converted to the Rec 709.
To Next Page
