Multi Format LCD Monitor 37
7. Button Functions
● LVM-170A series monitor supports two
HD/SD/3G-SDI inputs.
1. Press [SDI-A] or [SDI-B] in front of the
monitor.
2. There is current input signal on bottom of
OSD.
3. Press [SDI] again, then OSD menu
disappears.
#If no image displays after selecting the
desired input mode, check and make sure
that your connection is not lose or
disconnected.
● The LVM-171A supports various SDI
signals (HD/SD/3G-SDI), Digital signals
(HDMI/DVI Digital) and Analog signals
(DVI Analog/Composite).
1. Press the[Source] button on the front of
the monitor and activate the OSD menu as
shown on the left. Use the [UP]/[DOWN]
knob to select desired input source, then
press the knob to con rm.
2. Input resolution displays on the bottom of
the OSD screen.
3. Press the [Source] button again to remove
the OSD menu from display.
# If no image displays after selecting the
desired input mode, check and make
sure that your connection is not lose
or disconnected.

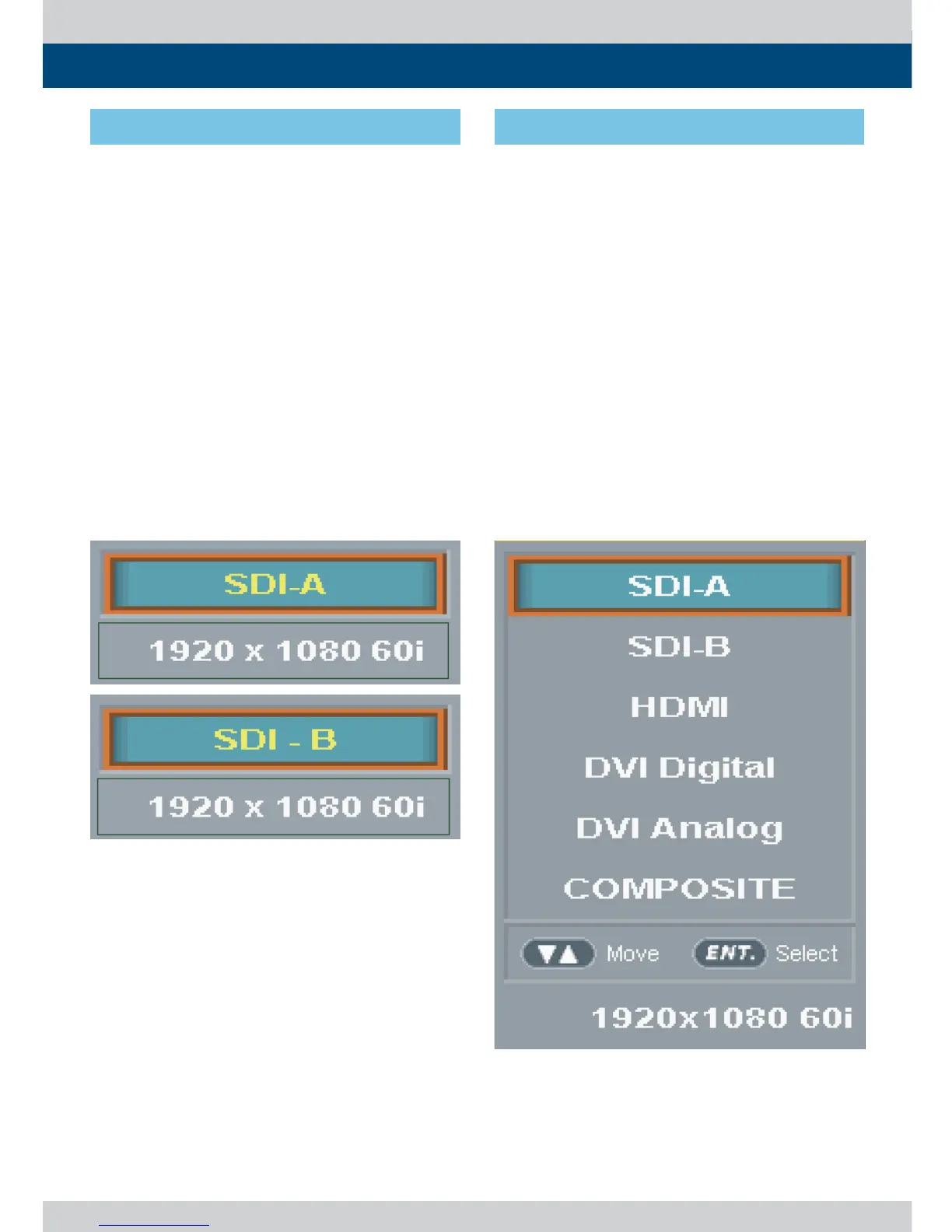

[3] SDI INPUT (LVM-170A) [3] SOURCE INPUT(LVM-171A)
