TVLogic LVM-232W User Manual

Multi Format LCD Monitor 31
[6] AUDIO

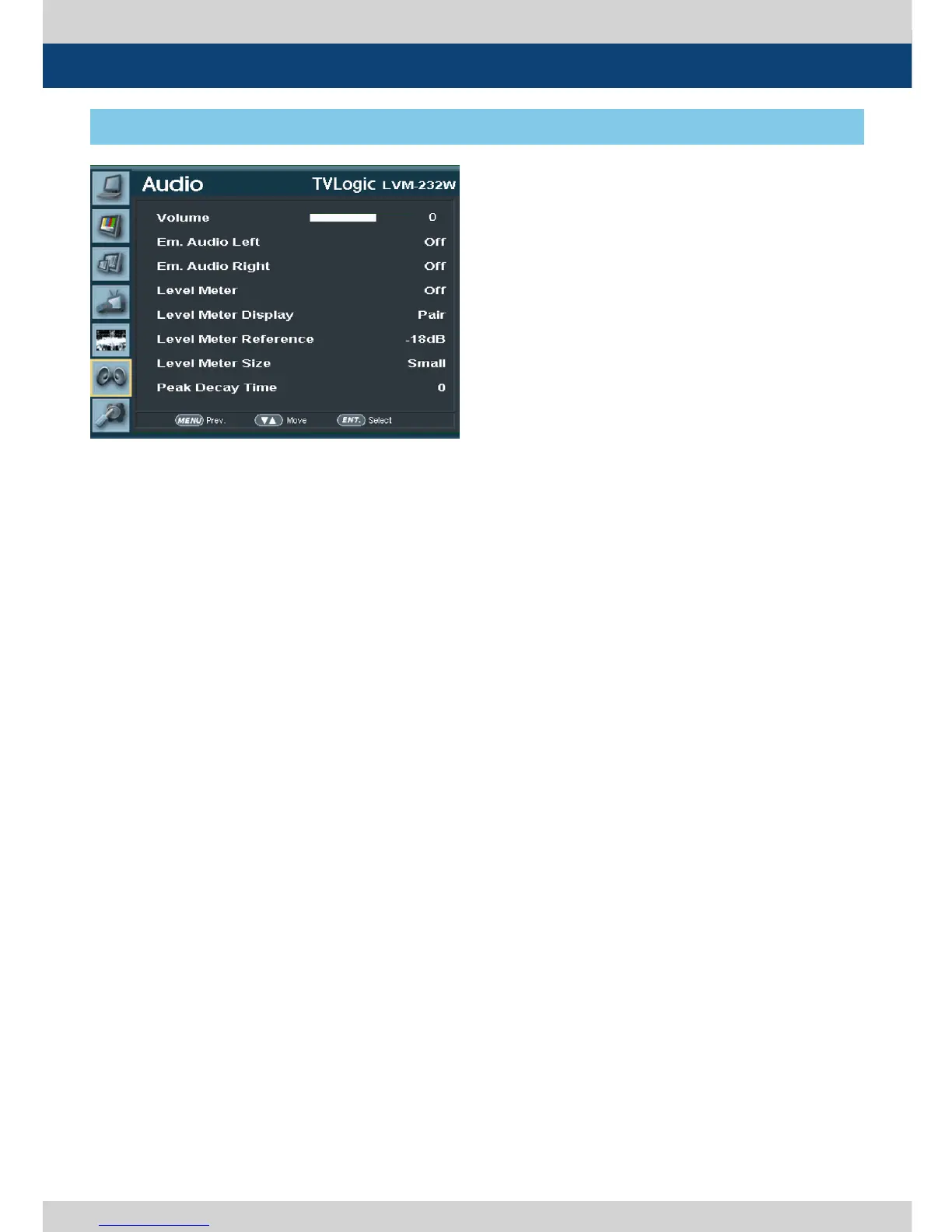

5. Menu Operations
● Volume
- This item controls the embedded audio
output volume for the internal speakers and
[AUDIO OUT] on the back of the monitor
- Available values are between 0~30.
● Em. Audio Left/Right
- The item controls embedded audio channel
for left/right audio out of internal speaker
and [AUDIO OUT] in the back of the monitor.
- Available values are O, CH 1~CH 16, Ext.
Audio with SDI input, and Left : CH1, Right :
CH2 with HDMI input.
● Level Meter
- The item controls the audio level meters.
- Available modes are 16ch as a standard and
OFF, 16 CH(HOR.), 16 CH(VER.) with SDI input,
and OFF, 2CH(Hor.), 2CH(Ver.) with HDIM
input.
*16 CH(HOR.) : It is displayed horizontally (8ch
on up-left, the other 8ch on up-right)
*16 CH(VER.) : It is displayed vertically (8ch on
left-center, the other 8ch on right-center)
● Level Meter Display (SDI Only)
- The item controls display method of audio
level meter
- Available modes are PAIR and GROUP.
● Level Meter Reference
- The item sets audio level default.
- Available values are -18dB and -20dB.
- Audio within selected value is displayed in
green and exceeded audio level is displayed
in yellow. Audio exceeding -4dB is displayed
in red.
● Level Meter Size
- The item controls the size of the audio level
meters.
- Available modes are NORMAL and LARGE.
● Peak Decay Time
- The item sets decrease time of audio level
meter top area.
- Available value is 0~100. The bigger value is,
the longer decrease time is.
