TVLogic R-5T User Manual

LCD Rack Mountable Monitor 27
<Dynamic UMD Protocol (TSL V3.1)>
*
Transmission (18 Byte) (PC or Device -> Monitor)
*
[HEADER] : Display address (0~126) + 80 hex.
*
[CONTROL BYTE]
bit 0 : Tally 1 (1=on, 0=o)
bit 1 : Tally 2 (1=on, 0=o)
bit 2 : Tally 3 (1=on, 0=o)
bit 3 : Tally 4 (1=on, 0=o)
bit 4 : bright data (Not used)
bit 5 : bright data (Not used)
bit 6 : reserved (Not used)
bit 7 : cleared to 0 (Not used)
*
[DISPLAY DATA] : 16 displayable ASCII characters.

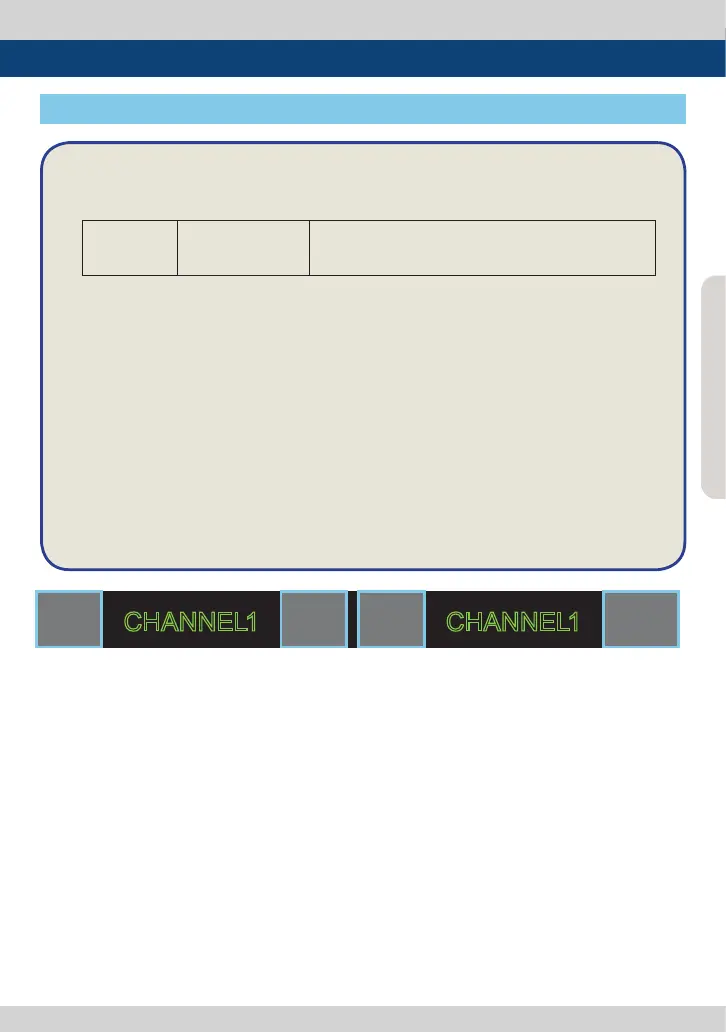

HEADER
(1 BYTE)
CONTROL
BYTE(1 BYTE)
DISPLAY DATA
(16 BYTE)
Tally1
CHANNEL1
Tally2 Tally3
CHANNEL1
Tally4
[7] SYSTEM / GPI / UMD
5. Menu Operations
