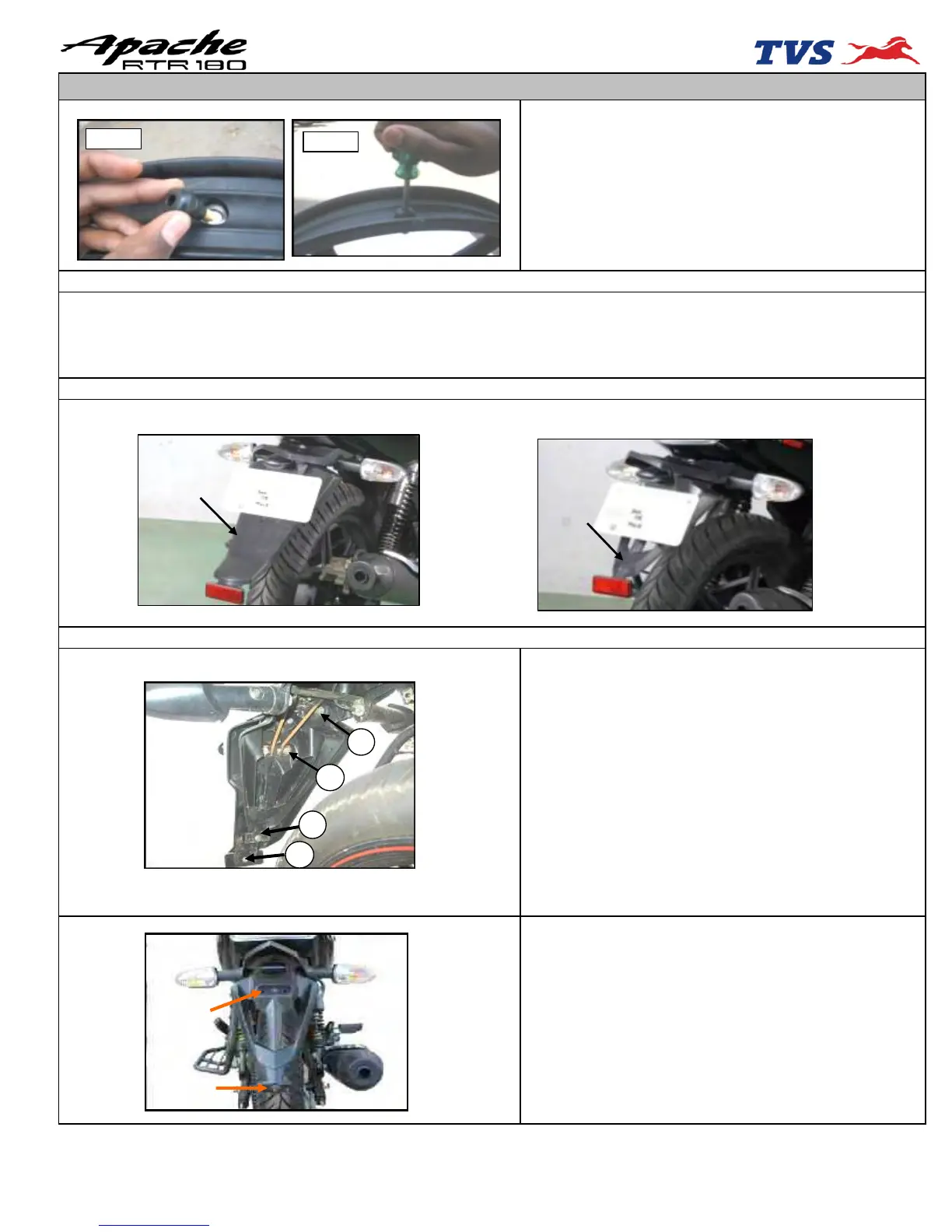

6. CHASSIS
Step 3:
Locate and seat the new valve tubeless tyre at rim valve hole
from the other side of the rim.
Step 4:
Insert a suitable mandrel type tool and gently tap to ensure
proper seating of the valve
Rear fender with Flap Rear fender without Flap
Step 1:
Loosen and remove 1 no. of reflector mounting nut (A) from the
flap rear fender using 8 mm spanner.
Step 2:
Loosen and remove 1 no. of CRR pan head screw (B) from flap
rear fender bottom mounding using a phillips screw driver.
Step 3:
Loosen and remove 2 nos. of bracket license plate mounting
nuts (C) using a 10 mm spanner and remove the bracket along
with the Licence plate. (Do not separate the Licence plate
from its bracket)
Step 4:
Finally loosen and remove 2 nos. of Hex. head
bolts (D) from flap rear fender top mounting using a 10 mm
spanner and remove the Flap.
Step 5 :
Now assemble the bracket license plate along with license plate
and reflector on rear fender at the respective locations of the
rear fender (Marked 1 & 2)
To reassemble the Flap rear fender, first remove the bracket
license plate and reflector. from the rear fender. The locate the
flap rear fender over the rear fender matching the mounting
locations (Refer A,B,C,D in fig.) and tighten the bolts, screws
and nuts as applicable.
-9-
Incase of tyre removal from the wheel rim, remove the wheel assembly as like Apache RTR. After removing the wheel assembly from the
vehicle, careful removal of tubeless tyre is necessary using a tyre demounting machine to remove the tyre from the wheel rim. Use of
levers used for removing normal tyre in the puncture shop may cause damage to the rim and will result in improper sealing and loss of air.
Follow the steps below for removal and re-assembly of Flap Rear Fender
REMOVAL AND REASSEMBLY OF FLAP REAR FENDER
REMOVAL AND ASSEMBLY OF TUBELESS TYRES
Step 3
Step 4
A
B
C
D
Reflector
Mounting
Bracket
license
plate
mountings
1
2
