10. PARTS CHANGE DETAILS
1. Crankshaft assembly : N9020120
2. New part, changed due to 180 cc Engine assembly.
3. Center distance between pin connecting rod big end and
crankshaft is increased due to change in stroke length &
Crank web OD is reduced from dia 108 to dia 105
4. Can be identified by "U180" engraved at clutch side web's
inside face
5. Not interchangeable with Apache RTR 160 cc vehicles.
Can be interchanged with Apache 150 cc vehicles
due to same stroke length. Apache crank shaft assembly
serviced under part No M7020150 if available at dealership
should not be used in RTR 180 cc.
1. Oil pump assembly : N9080240
2. New part
3. Oil pump capacity increased by 1.2 Litre per minute for better
lubrication
3. Oil pump alone without the driven gear is not interchangeable
with existing Apache / RTR 160 cc vehicles. Can be
interchanged as a set (Oil pump & Gear oil pump driven)
4. Can be identified by the step on the body of the oil pump
assembly.
1. Gear oil pump driven : M7081220
2. New part to match the modified oil pump.
3. Gear oil pump driven alone without the oil pump is not
interchangeable with existing Apache / RTR 160 cc vehicles.
Can be interchanged as a set (Oil pump & Gear oil pump
driven).
4. Can be identified by the step on the gear oil pump driven.
1.Engine sprocket : N9080250
2. Engine sprocket teeth increased from 13T to 14 T.
3. It is not interchangeable with old vehicles.
-15-

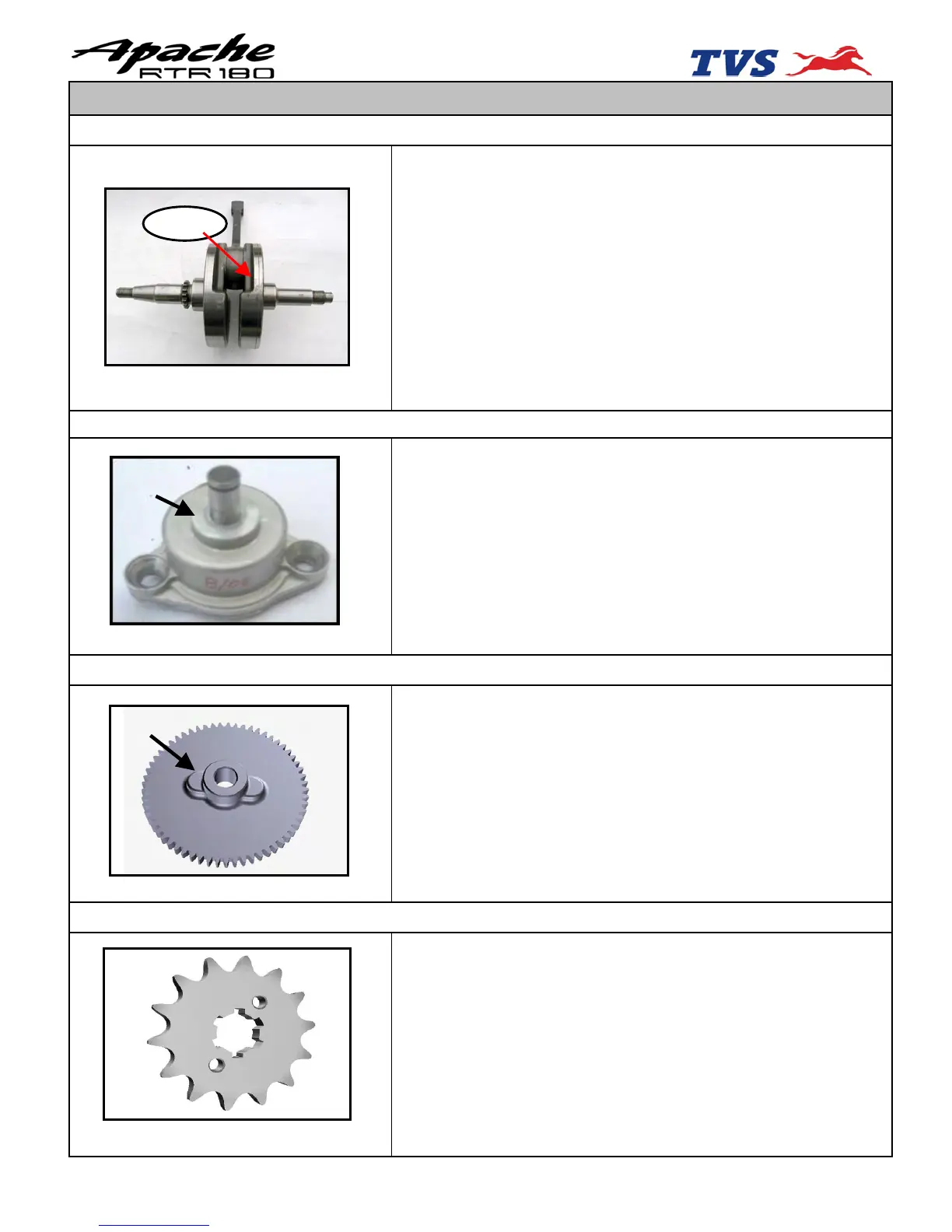

CRANKSHAFT ASSEMBLY
ENGINE SPROCKET
GEAR OIL PUMP DRIVEN
OIL PUMP ASSEMBBLY
14 T
U 180
Step
