VERA10 Operating Manual
2. Overview

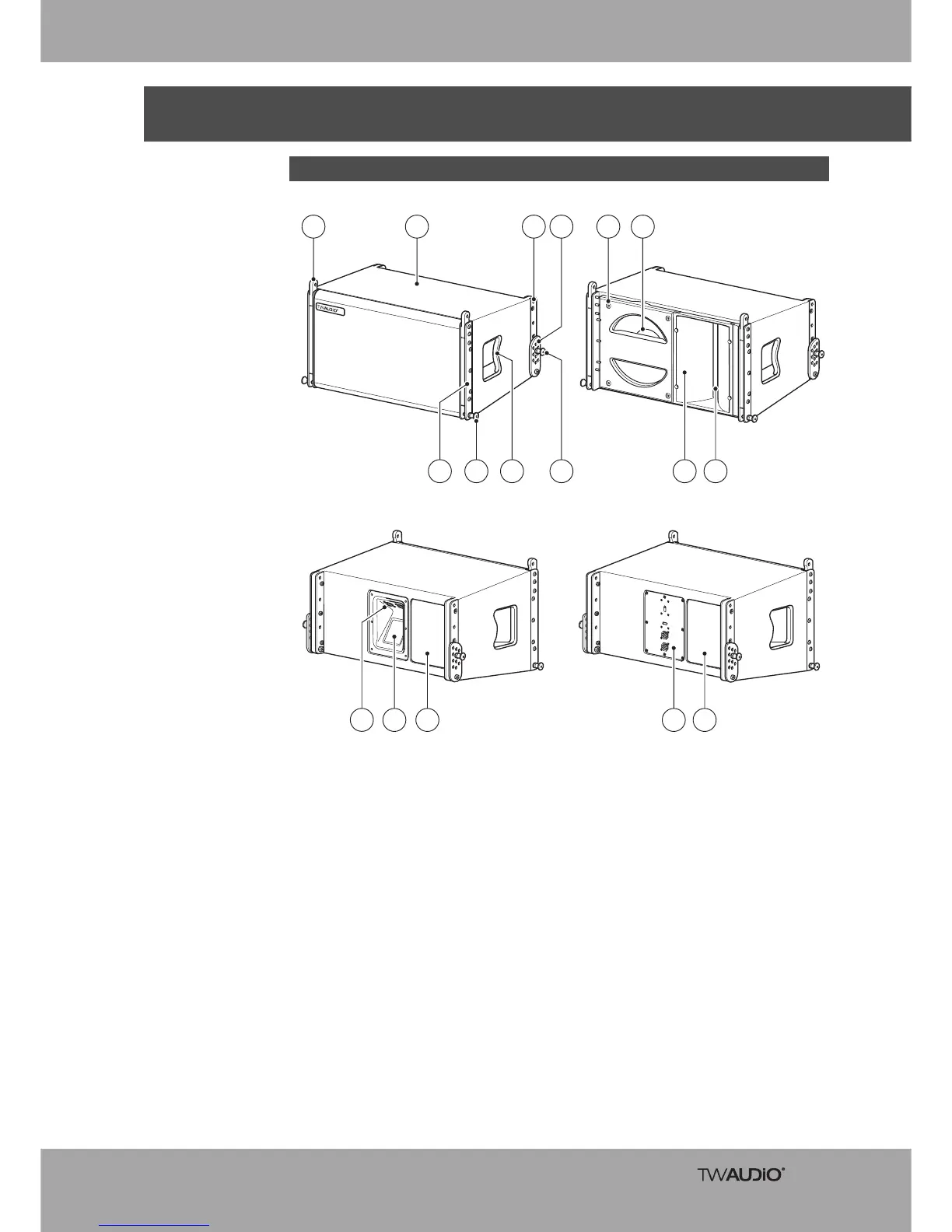

Figure 2.1 - Overview
1. Front eyelet
2. 15 mm multiplex enclosure – polyurea finish
3. VERA10 "rear" rigging plate
4. Splay link
5. Locking pin 8 × 30
6. Ergonomic carrying handles (left and right)
7. Locking pin 8 × 20
8. VERA10 "front" rigging plate
9. Phase plug
10. 10" cone drivers
11. Waveguide with two 1" compression drivers
12. Exchangeable horn
13. Standard connection panel with two speakON
®
connectors
14. Type label
15. Label plate
16. Passive crossover PWV10
2.1 Components
