VERA10 Operating Manual
3. Technical data
Version: VERA10A

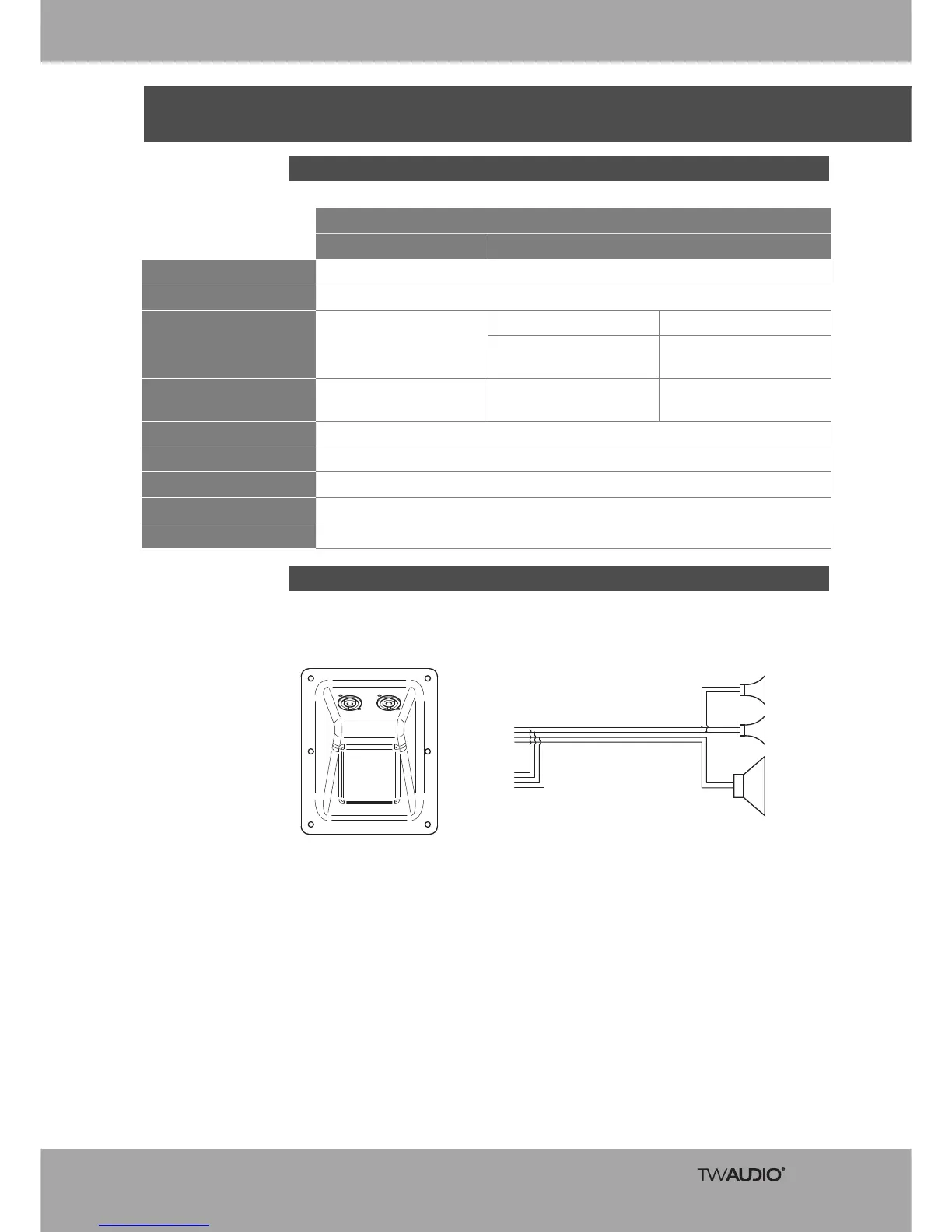

Figure 3.2.1 - VERA10A wiring diagram
3.1 Data sheet
Model
VERA10A VERA10P
Component 1 × 10" LF/ 2 × 1" HF
Frequency response 60 – 16000 Hz
Power handling, program/
peak
500/1000 W LF
200/400 W HF
BIAMP mode PASSIVE mode
500/1000 W LF
200/400 W HF
600/1200 W
Impedance 16 Ω LF
16 Ω HF
16 Ω LF
16 Ω HF
12 Ω
Coverage (h × v) 80° × 10° or 120° × 10° HF horn
Max. SPL/1 m 133 dB
Dimensions (h × w × d) 275 × 500 × 355 mm [10,83 × 19,69 × 13,98 in]
Weight 16 kg [35,3 lbs] 18 kg [39,7 lbs]
Finish Polyurea coating
3.2 Wiring diagram
parallel
HF 1"
LF 10"
HF 1"
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
16 OHM
16 OHM
+
--
+
--
+
--
ACTIVE VERSION
