Fuse Chart
*All Fuses are 3AG Type 250 Volt, SLO-BLO
Export 100V: Domestic 120V: Export 220V, 230V, 240V:
2A – 35 Watt 2A – 35 Watt 1A -- 35 Watt
Tube Complement
V1- 12AX7, Input and Gain
V2- 12AT7, Reverb Drive
V3- 12AX7, Reverb Send & Return
V4- 12AX7- Effects buffer & Mixing Stage
V5- 12AX7, Phase Inverter
V6 & V7 - 6L6 (35 watt)
Each fine production tube is tested and matched to our exacting specifications. When the time
comes that the power tubes need replacing, it’s very important to use high quality, matched sets of
power tubes. It’s also critical that the bias of the amp be reset after installing new, or NOS power
tubes. External bias adjustment and test points are located on the bottom of the chassis near the
output tube sockets. A digital voltmeter and small screwdriver are required for bias adjustment.

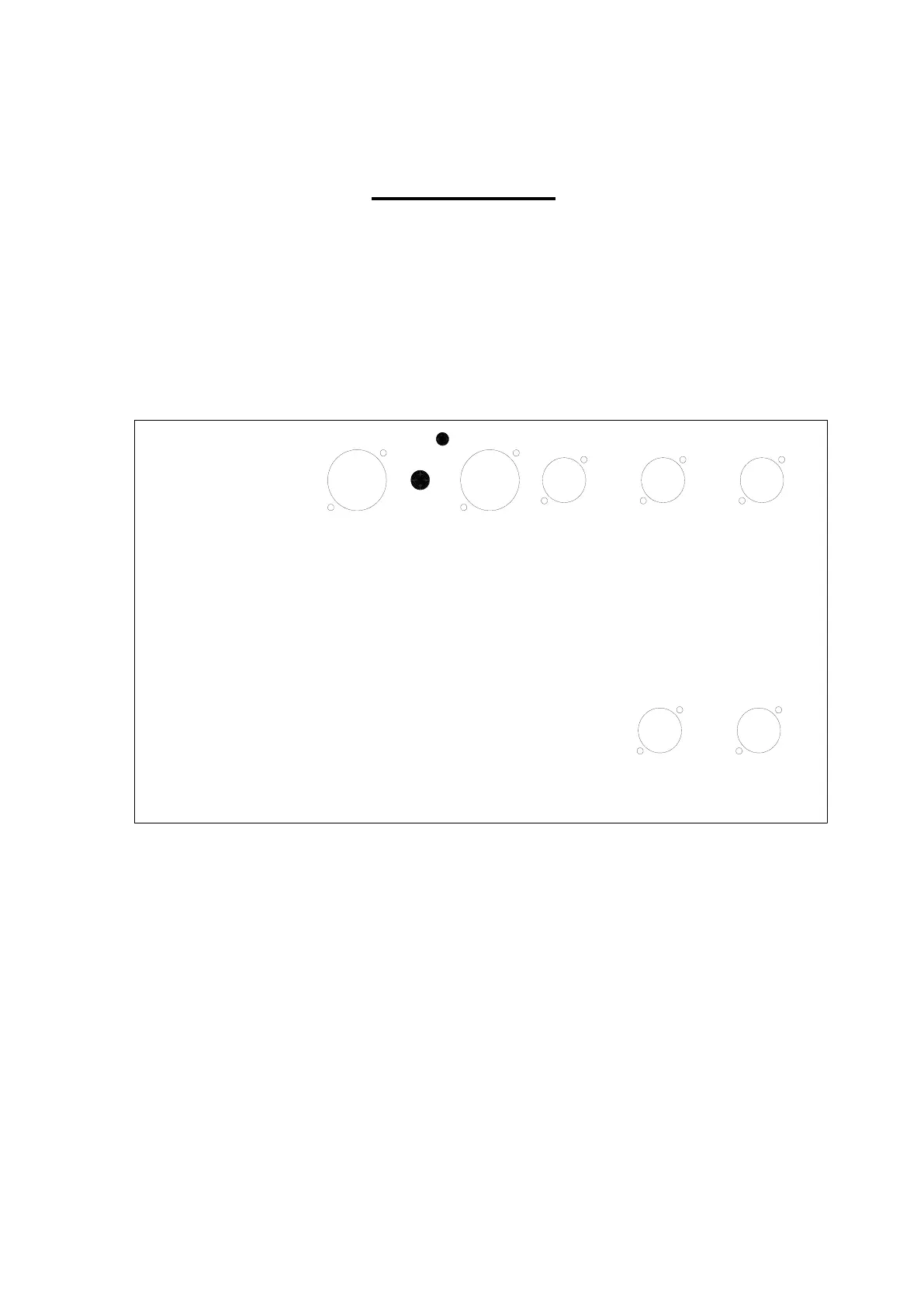

V1
V2V3
V4
V5V6
V7
BIAS Pot
TEST POINT
