18. 775 Motor Chuck Installation
Required parts:
• 1× 775 Spindle Motor
• 1× 775 Motor Chuck
• 3,0 Hexagonal Wrench
• 4,0 Hexagonal Wrench
• 1× M5X6 Screw
• 2× M5X12 Screw
• 2× Cup Head M5X12 Screw

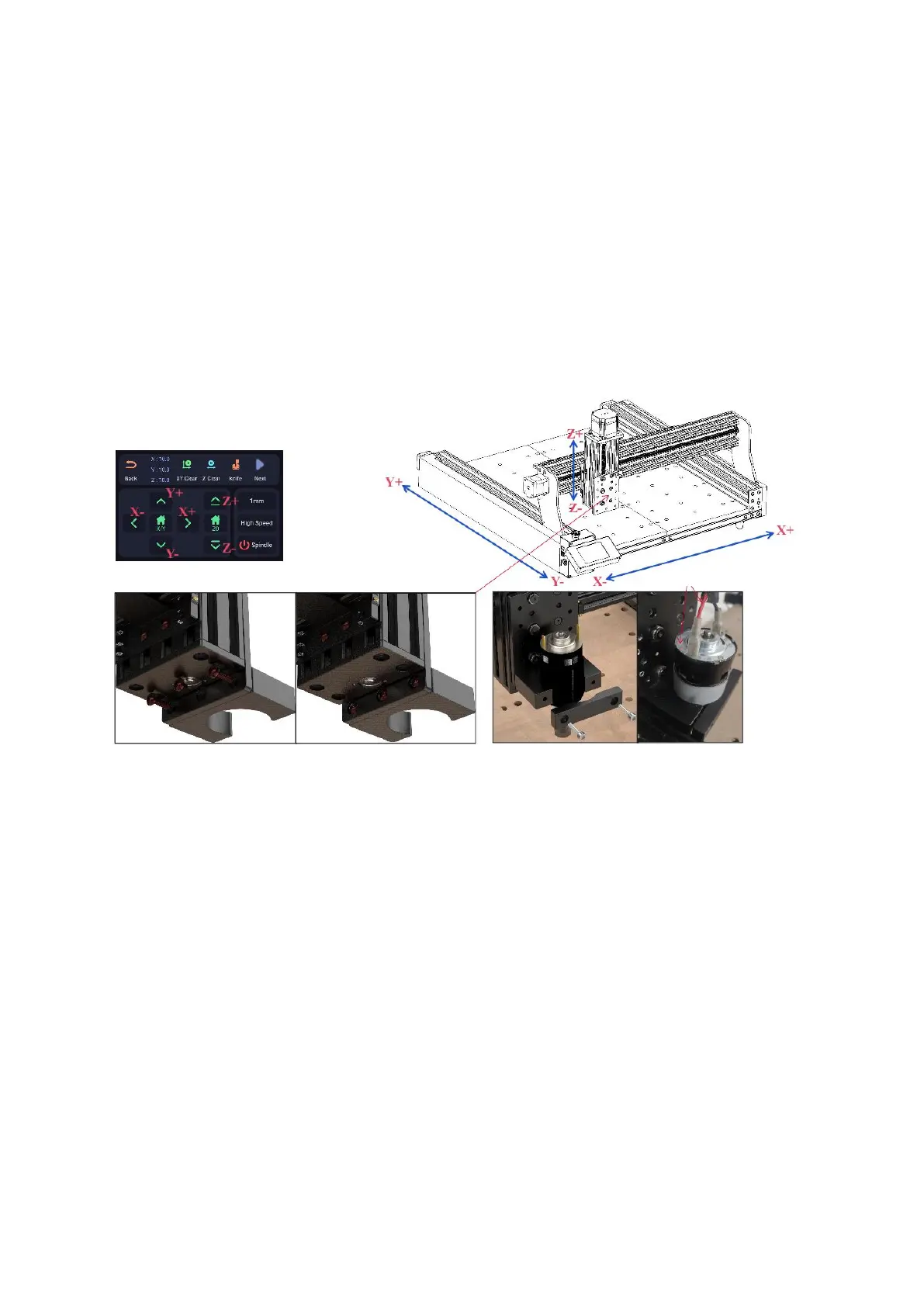

Begin by plugging in the 775 motor cable, Z-axis stepper motor cable, and Z-axis as well
as X-axis limit cables. Once these connections are established, navigate to the interface
and select the option to move the X-axis to the right. Similarly, click on the Z-axis
command to initiate a downward movement. This step-by-step process ensures the
synchronization and testing of the various components for seamless functionality.
